ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized

ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized

  • High Light

    splitter distribution box

    ,

    optical distribution box

  • Material
    Abs+pc
  • Color
    Gray, Black
  • Application
    FTTH, FTTB FTTX Networks, Outoor
  • Product Name
    16 Cores Fiber Distribution Box, Fiber Optic Termination Box
  • Waranty
    3 Years
  • Size
    287*172*102mm
  • Place of Origin
    china
  • Brand Name
    Yingda
  • Certification
    ISO,SGS
  • Model Number
    FDB0216V-116SA
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs/carton
  • Delivery Time
    7days
  • Payment Terms
    Western Union, T/T, L/C, MoneyGram
  • Supply Ability
    50000PCS/Month

ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized

16 Cores Outdoor IP65 FTTH Nap Splitter Distribution Termination Box SC Connectorized



This outdoor fiber optical distribution box is a high density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP65 waterproof grade.



Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1pc 1x16 or 2pcs 1x8  PLC mini splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Wall mounted, pole mounted
  • Max. Hold 16 pcs SC or LC duplex adapters, max. 16cores fusio splice
  • 1pc mid span ports, 2 round cable port, 16 pcs FTTH 2*3mm drop cable outports
  • Pre-install SC adapter or micro splitter, pigtails available.
  • IP65 level for outdoor use

Product pictures

ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 0ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 1

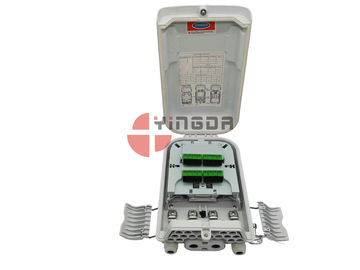

Overview: gray color, 2 buckles+key for open and close, round shape, back with mouting holes.



ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 2ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 3



Internal view: 1mid span, 2 round port, 16pcs for 2x3mm drop cable exit. cable entry have stainless steel cable tie to fix.







ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 4ISO FTTH Nap Splitter Fiber Optic Distribution Box 16 Cores Outdoor SC Connectorized 5

DETAILS: 3 layer fiber management:

1. layer 1 front is for max. 16 pcs SC adapters mounting, the upper adapter holder can be rotate 90degree, easy for installation.

2. layer 1 back is the tray is for plc splitter tube fix , input adapter holder.

3. layer 2 is tray for fusion splice, max. 16cores single fiber, enough space for fiber storage.

4. layer 3 is the box internal bottom, it can fiber wiring and storage for cable entry.



Specification

Model FDB0216V
Material ABS+PCS
Cable port 2round ports, 1mid span port, 16outputs for drop cable
Size(W*H*D)

287*172*102 mm

Max capacity 16 cores
Adapter qty 16 SC
PLC splitter 1x2,1x4,1x8,1x16 steel tube PLC splitter
Color black, gray



Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)

Packing information

Model QTY/CTN CTN size N.W/CTN G.W/ CTN
FDB0216v 10pcs cm 1.4 20kgs
