16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure

16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure

  • High Light

    splitter distribution box

    ,

    optical distribution box

  • Color
    Gray
  • Max. Capacity
    16 Cores / Fiber
  • Dimension
    274*175*82mm
  • Material
    Pc+abs
  • Splitter
    2pcs 1:8 Micro Plc Splitter
  • Max. Adapter
    16 Pcs SC Simplex Couplers
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    FDB0216W
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1 pc / box, 10 pcs / carton box
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100000 pcs per month

16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure

16 Ports FTTH Drop Cable Outdoor Wall Mount Fiber Optic Termiantion Splitter Distribution Box





The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features:

Total enclosed structure with key and buckles

High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging,protection level up to IP65.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.

Cable, pigtails, patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Outdoor wall mount or pole mount

16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 016 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 1

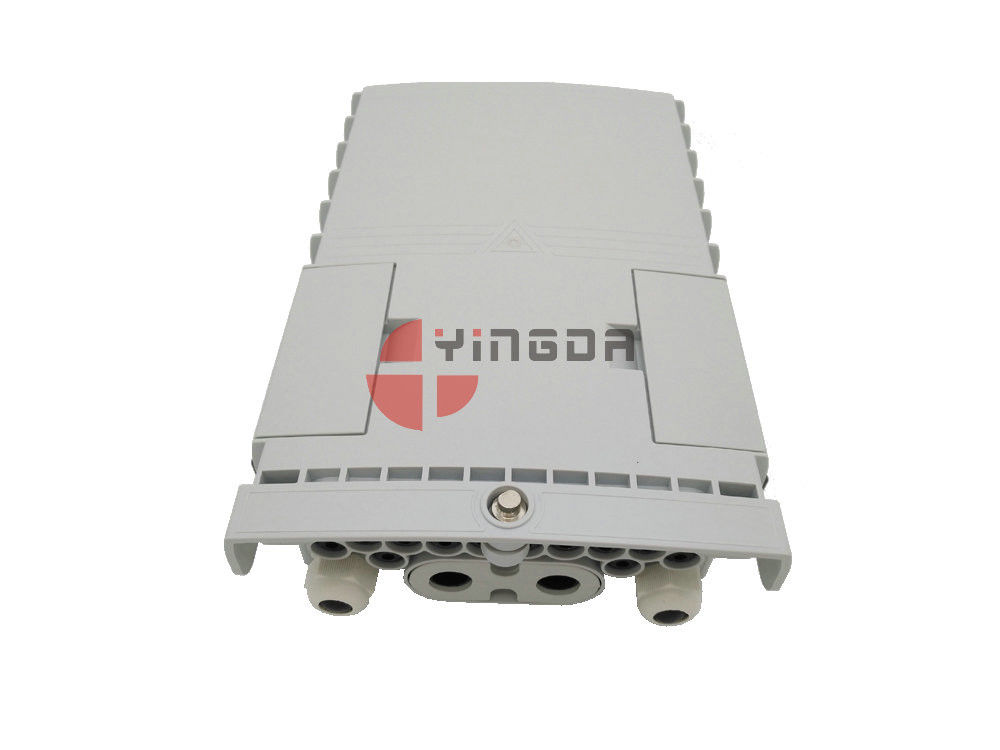

                   FRONT VIEW:  CABLE PORTS                             SIDE VIEW: BUCKLES



16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 216 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 3

INTERNAL VIEW: ADAPTER TRAY                     INTERNAL VIEW: FUSION SPLICE TRAY



16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 416 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 5

INTERNAL: CABLE FIXTION                                  INTERNAL: CABLE FUSION AND STORAGE



16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 616 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 7

                 BOTTOM OF THE BOX                                         TRAY IS CLIP ON THE BOX





Specification



Model FDB0216W
Dimension 274*175*82mm
Max capacity 16cores single fiber
Max. Adapter qty 16pcs SC
Max. Splitter qty 2pcs 1x8 mini splitter
Cable port 1 uncut port, 2 round ports, 16 pcs drop cable
Material PC+ABS
Color Grey



Standard accessory

16 Ports FTTH Drop Cable Fiber Optic Distribution Box Pc Abs Total Enclosed Structure 8

User manual, metal key, cable fixtion, nylon tie, wall mount expansion screws, 2pcs back metal sheet, buffer tube, heat protetcion sleeve, etc
