260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box

  • 260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box
  • 260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box
  • 260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box
  • 260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box
Place of Origin china
Brand Name YINGDA
Certification ISO, SGS, ROHS
Model Number FDB0216A-LGX116-WG
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1 pc per box, 10 pcs per carton shipping box
Delivery Time 5-8 working days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Adapter SC/APC Capacity 16 Fibers Singlemode
Output 16 Pieces Of 2*3mm Ftth Drop Cable Cable Inport 2 Pcs Cable Glands
PLC Splitter 1:16 Mini Splitter LGX Cassette Dimension 260*320*90 Mm
Material PC+ABS Color White
Cable Diameter 7-10 Mm
High Light

optical distribution box

,

splitter distribution box
Leave a Message
Product Description

ABS IP68 1:16 Fiber Optic Cable PLC Splitter DistributionTermination Box For FTTH GON Network





YINGDA FTTH Fiber Customer Terminal Box is used in the end termination of residential buildings and villas, to fix and splice with pigtails; Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function.

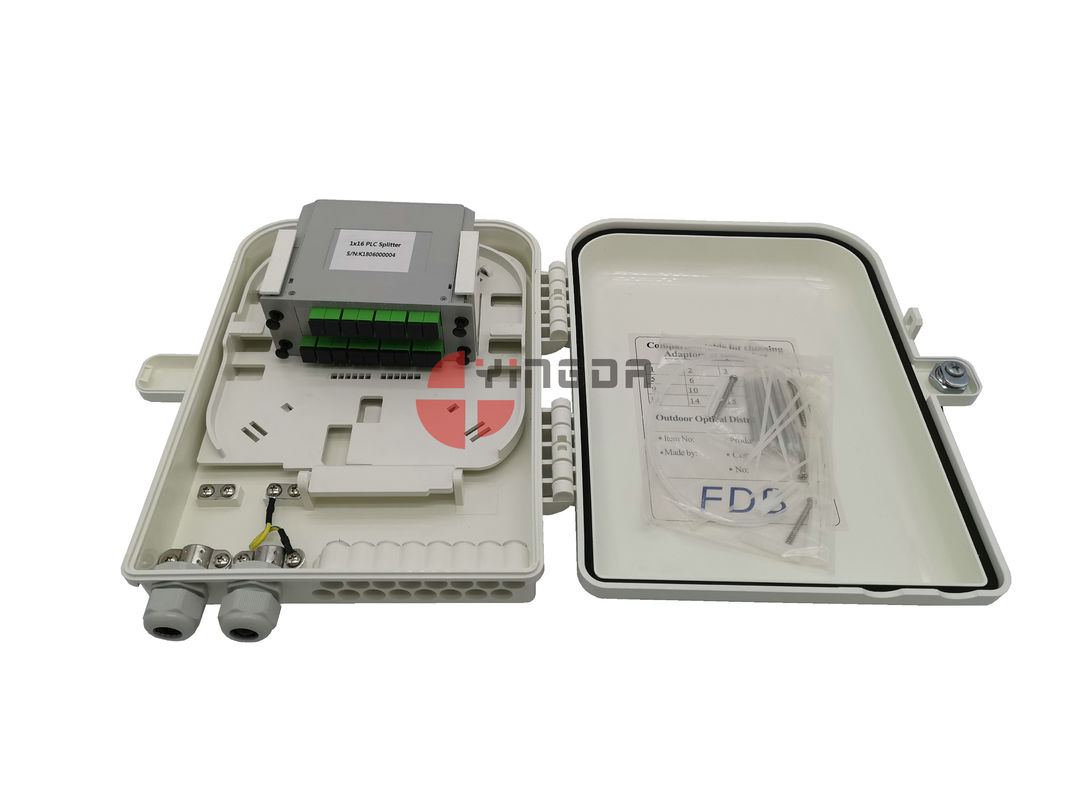

260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box 0

Features

  • The box is made of high impact plastic PC material, high strength,good quality
  • Can use in outdoor harsh environment -40~+85°C
  • Can maximum hold 16pcs SC or LC duplex adapters
  • Indoor or outdoor pole-mounting or wall-mounting
  • Can install adapter, pigtails or plc splitter at factory
  • Can use micro splitter 1x8 or 1x16
  • 2inports, and 16outports
  • Waterproof class IP65
  • Max capacity 16cores
  • OEM or ODM ok
  • 100% test before shipment

More pictures

260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box 1260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box 2

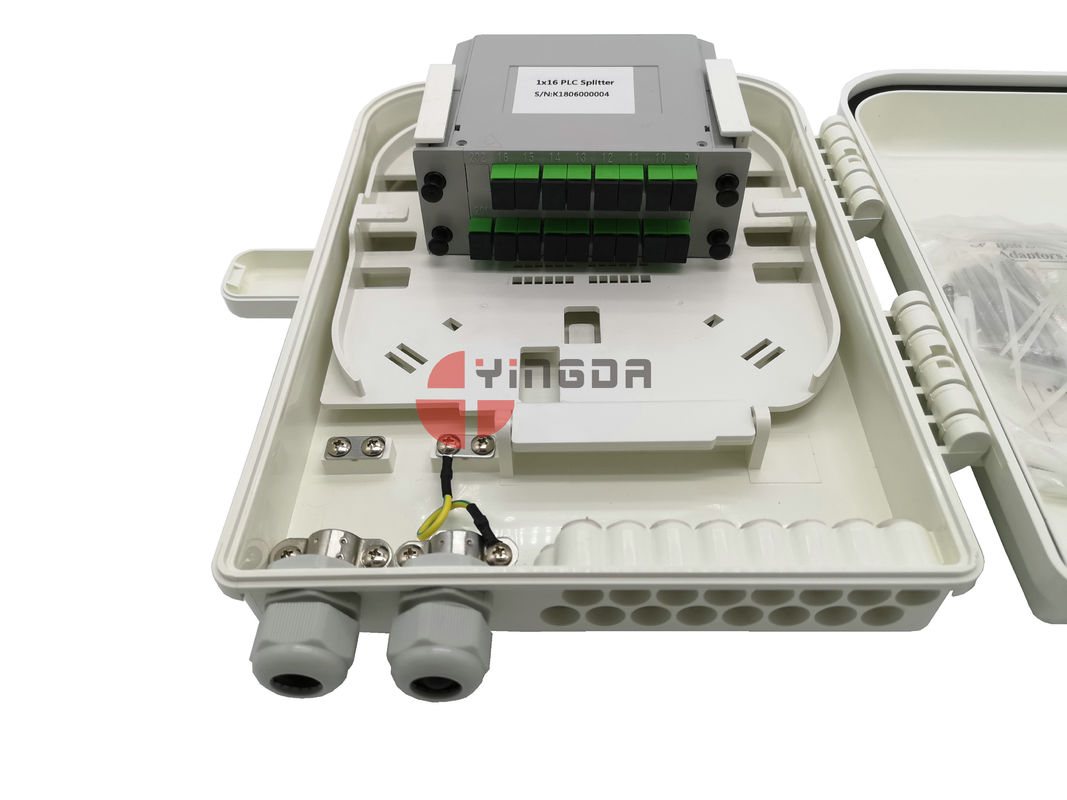

FRONT VIEW: Lock with key, label mark place, 2pcs cable gland, and 16output for drop cable.

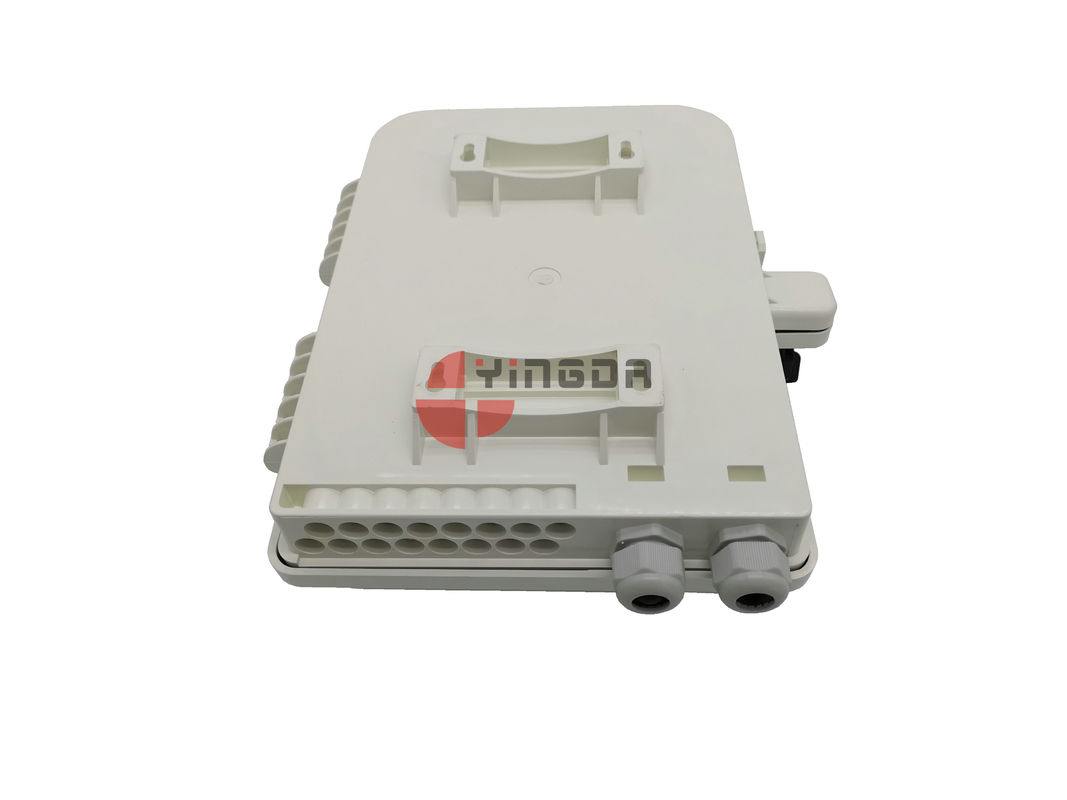

BACK VIEW: 4pcs wall mount holes with expansion screws, and pole mount holes.



260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box 3260 * 320 * 90 Mm Fiber Optic Splitter Box , ABS IP68 Fiber Optic Termination Box 4

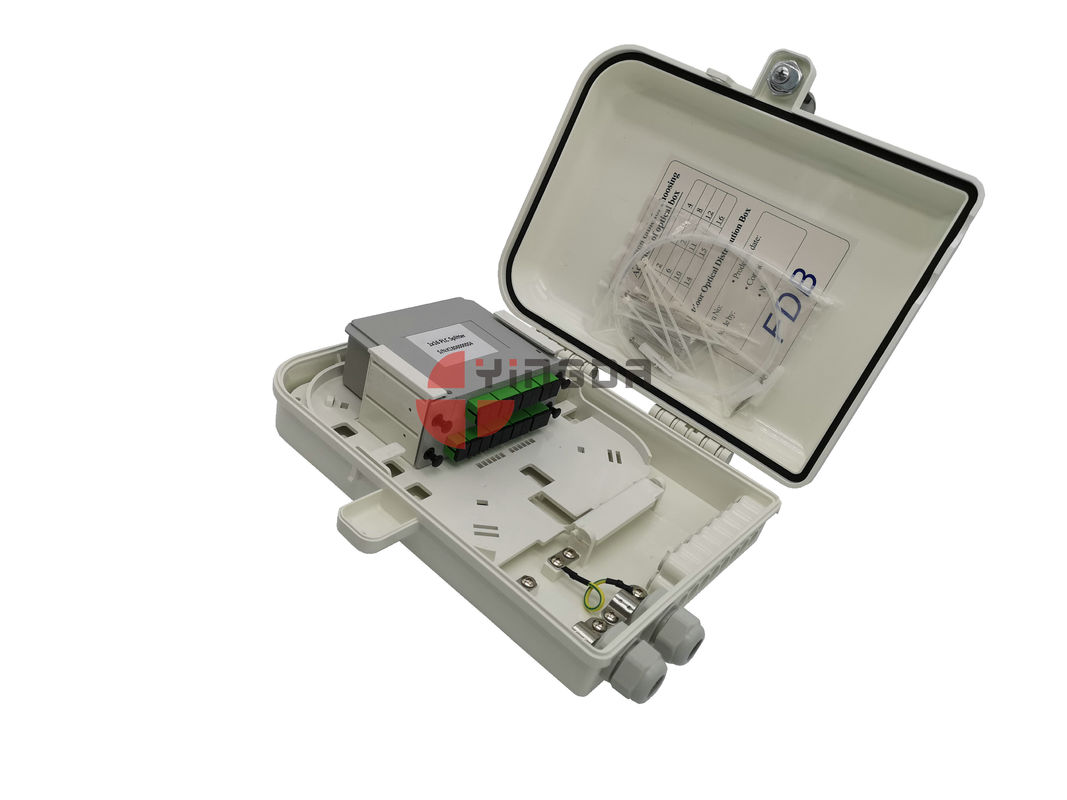

1X16 or 1x8 splitter cassette holders, and with waterproof rubber seal around the box, with fusion splice holders at the back of the rotate tray.

standard accessory: wall mount kits, buffer tube 60cm, nylon ties, protection sleeves, etc.



Specification

Model FDB0216A
Dimension 260*320*90 mm
Cable ports 2 in, 16 out
Cable diameter In :7-10mm , out: 2*3.0mm or indoor cable
PLC split ratio 1x2, 1x4, 1x8,1x16 micro splitter
Net weight 1.4kg
Material PC / ABS
Color White



Package information

Model FDB0216A
Carton quantity 10pcs
Carton size 56*36*62cm
Carton weight 15.6kg



Application

  1. Widely used in FTTH access network.
  2. Telecommunication Networks
  3. Data communications Networks
  4. Local Area Networks
  5. CATV Networks



Our advantage and special services:



1.The most competitive price


2.We are eager to establish long-term cooperation relationship with every customer,so we're responsible for our quality.we provide 3 years warranty.


3.We provide one-stop FTTH Solution Products.besides, we can help you design unique new products and put into production.We care about innovation and would like to change for you and grow up with you.


4.With our own R&D, more completed production lines, advanced production & testing equipment, experienced staffs, we’re confident to provide you satisfied quality and service with competitive price and punctual delivery.


5.For your any queries or inquiries to sales@ydpcable.com, we will try to reply you within 3 hours
