Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT

Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Material
    PC+ABS
  • Capacity
    12 Cores
  • Dimension
    220*210*50mm
  • Color
    Gray
  • PLC Splitter
    1x2, 1x4, 1x8 LGX Module
  • Cable Port
    3 Cable Gland(Φ16mm)
  • IP Grade
    IP65
  • Installation
    Wall Mount, Pole Mount
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0212B
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pc/box, 40pcs/CTN
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    5000pcs per month

Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT

Fiber Optic LGX Module PLC Splitter Box, Pole Mount and Wall Mount 12 Fibers FAT



This type splitter box is able to hold up to 1x8 LGX module PLC splitter. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • 1 input and 2 outputs
  • Made of high impact engineering plastic
  • Can accommodate 1x2, 1x4, 1x8 LGX module PLC splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 12FTTH drops
  • IP65 protection class



Product details



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 0Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 1

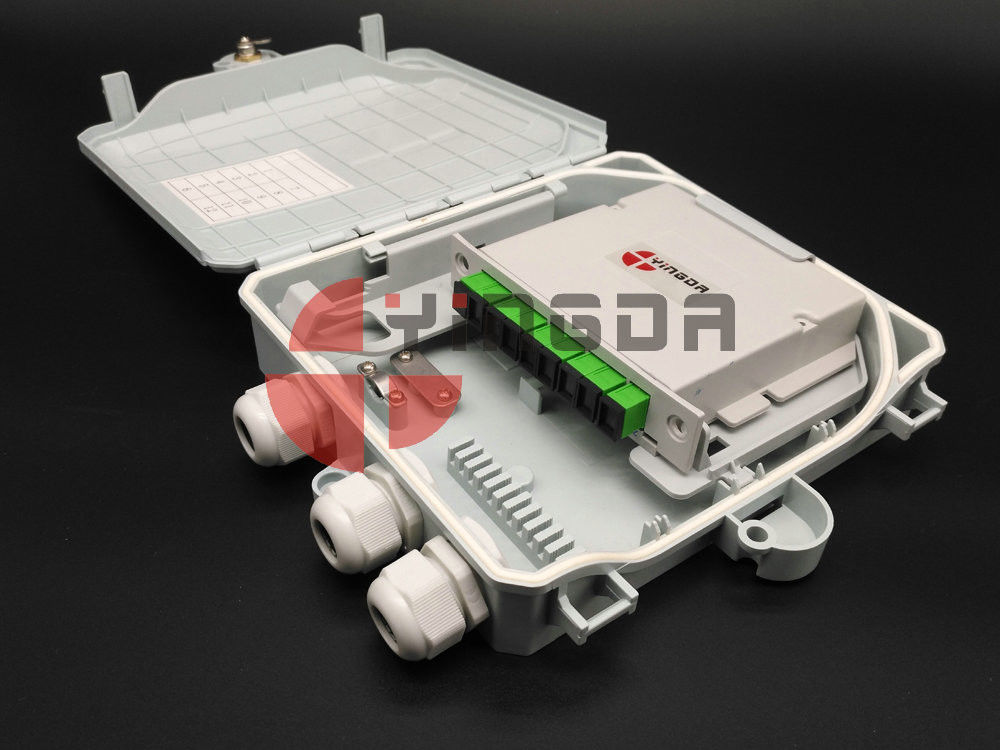

  • This type box is designed to install LGX Module PLC splitter, such as 1x2, 1x4, 1x8 LGX PLC.
  • FDB0212B box also has another type that can install mini module PLC splitter.



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 2Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 3

  • The LGX module PLC panel.



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 4Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 5

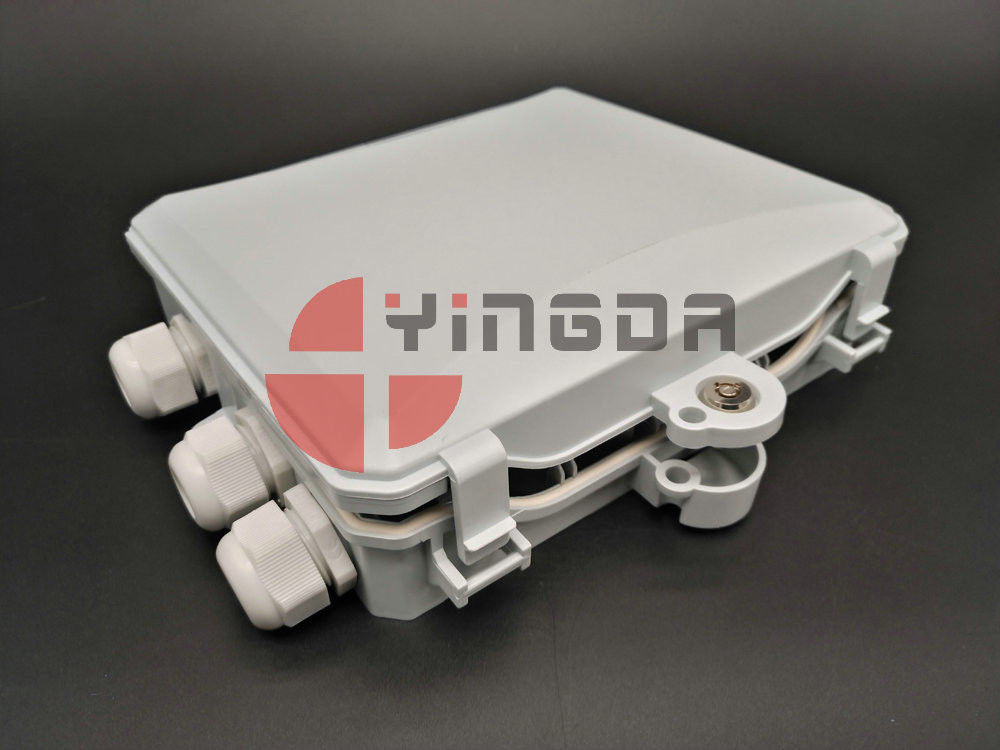

  • Use key to close the splitter box.



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 6Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 7

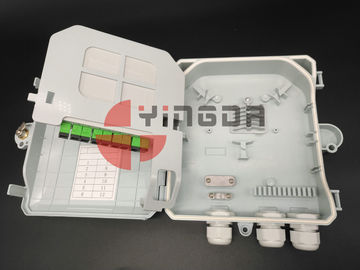

  • For this LGX module box, the place to splice fibers is on the bottom of box. As the red marked.



Specification

Model FDB0212B
Material PC+ABS
Dimension (W*D*H)mm 220*210*50
Max.Capacity PLC1x2 (1pc);1x4(1pc) or 1x8 (1pc) LGX module
Cable ports 3round cable ports
Cable diameter(mm) Φ16
Adapter Max. 12pcs SC
Color Gray
Application Wall mount, pole mount



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 8

  • Standard accessories



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 9Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 10

  • Optional pole mount kits



Fiber Optic LGX Module PLC Splitter Box , Pole Mount and Wall Mount 12 Fibers FAT 11

  • Inner packing box



Packing Informations

Model N.W./KGS Qty/CTN CTN Size/cm G.W./KGS
FDB0212B 0.5 40 44*49*56 24.4
FDB0212B with pole mount kits 0.65 20 77*46*26 14.3
