White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

Basic Information
Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FDB0224H
Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: 1PC/BOX,10PCS/CARTON
Delivery Time: 1week
Payment Terms: T/T, Western Union
Supply Ability: 100k per month
Contact Now
Detail Information
Color: White Material: PC+ABS
Protection Grade: IP66 Cable Ports: 2 Inputs, 24 Outputs
Max Capacity: 24 Cores Single Fiber Splitter Type: 1*4, 1*8,1*16 Micro Splitter
Adapter Quantity: 2pcs 1x8 Or 1pc 1x16

Product Description

White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24



YINGDA fiber access termination box is able to hold up to 24 subscribers. It is used as a termination

point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,

splitting, distribution, storage and cable connection in one solid protection box.



Features

Waterproof design and with IP-66 protection level

Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition

Easy to maintain and extend the capacity

Fiber bend radiuscontrol more than 40mm

Suitable for the fusion splice or mechanical splice

1*16 splitter can be installed as an option

Efficient cable management

24 ports cable entrance for drop cable

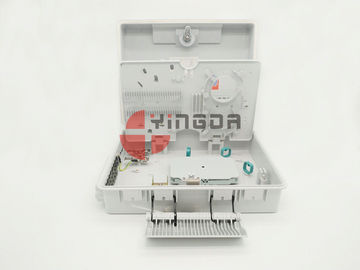

White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24 White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

                        laser mark                                                                    labeling of cable

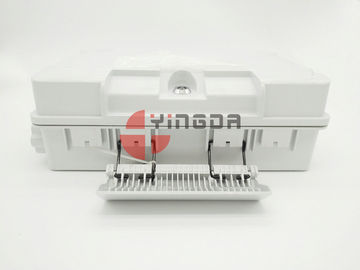

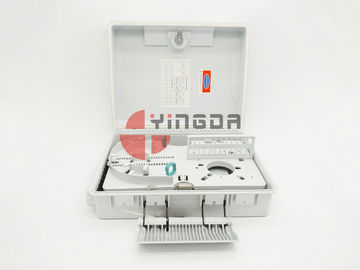

White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24 White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

                        SC adapter panel                                                fusion splice holder

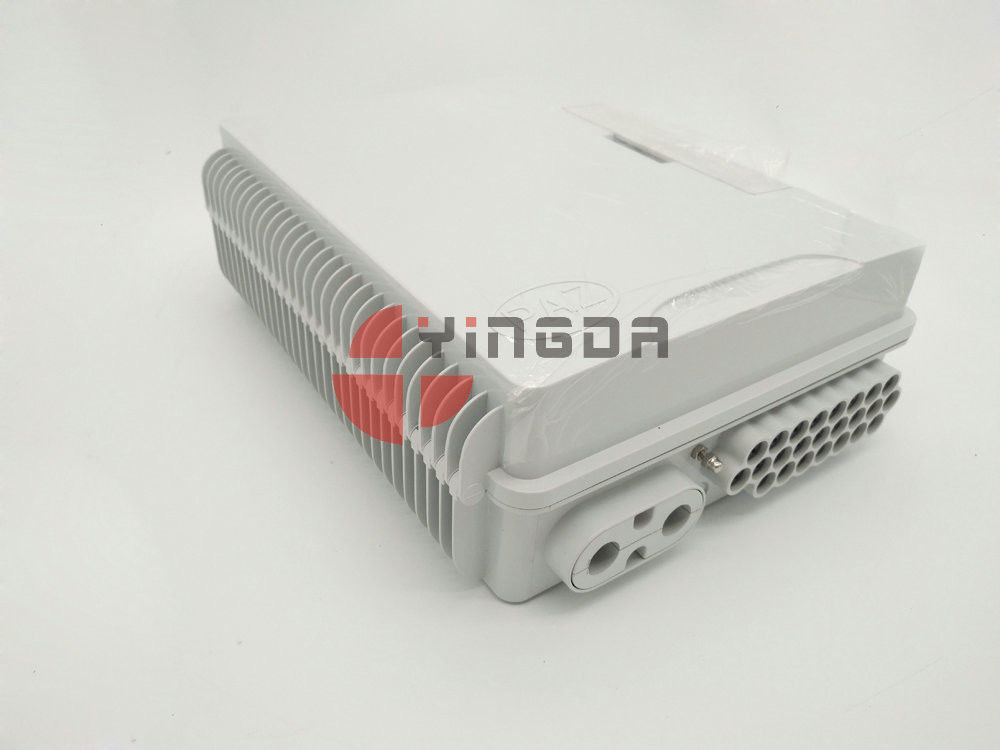

White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24 White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

                     24fibers splice tray                                                    cable port with rubber sealing

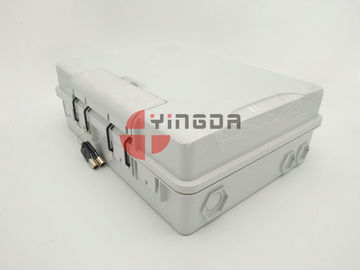

White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24 White Plastic Optical Termination Box Outdoor Wall Mount 24 Fibers With Bracket and Keys FAT-24

                                            2pcs key for open except the bracket, anti-thief





Configuration



Dimension Max capacity Weight Color Material
340*250*110 SC 24 ports PLC 1X16 (SC) 1.5kgs Black/white PC+ABS



Standard accessories

Splice cassette, cable management tool, installation nuts and bolts, protection sleeve, hose clamp,rubber seal for cable entrance



Optional accessories

Pole ring, extra lock and key
