Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap

  • High Light

    splitter distribution box

    ,

    optical distribution box

  • Material
    ABS PC
  • Color
    Gray, Black
  • Application
    Outdoor FTTH, FTTB FTTX Networks
  • Product Name
    Fiber Optic Splitter Box, Fiber Optic Splitter, Fiber Optic Box
  • Waranty
    3 Years
  • Size
    287*172*102mm
  • Cable Entry
    1 Cable Gland PG13.5, Diameter 12mm
  • Cable Exit
    9pcs Huawei Compatible Mini SC Adapters
  • Place of Origin
    china
  • Brand Name
    Yingda
  • Certification
    ISO,SGS,CE
  • Model Number
    CTO-8A
  • Minimum Order Quantity
    100pcs
  • Price
    negotiable
  • Packaging Details
    1pc/box, 10pcs/carton
  • Delivery Time
    7days
  • Payment Terms
    Western Union, T/T, L/C, MoneyGram
  • Supply Ability
    50000PCS/Month

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap



This outdoor fiber optical distribution box is a high density solution for FTTH next generation networks, it provide and manage maximum 24cores fiber termination in a limited space. It can be wall or pole mounted indoor and outdoor application. IP65 waterproof grade, widely used in FTTA FTTH network, internal can use plc splitter mini tube, and external must connected with huawe compatible mini sc connectors to use.



Specification

Model CTO-8A
Material ABS+PC
Cable port 1cable gland, 9 pcs mini s
Size(W*H*D)

287*172*102 mm

Max capacity 16 cores
Protection grade IP65
PLC splitter 1x2,1x4,1x8 steel tube PLC splitter
Color black, gray

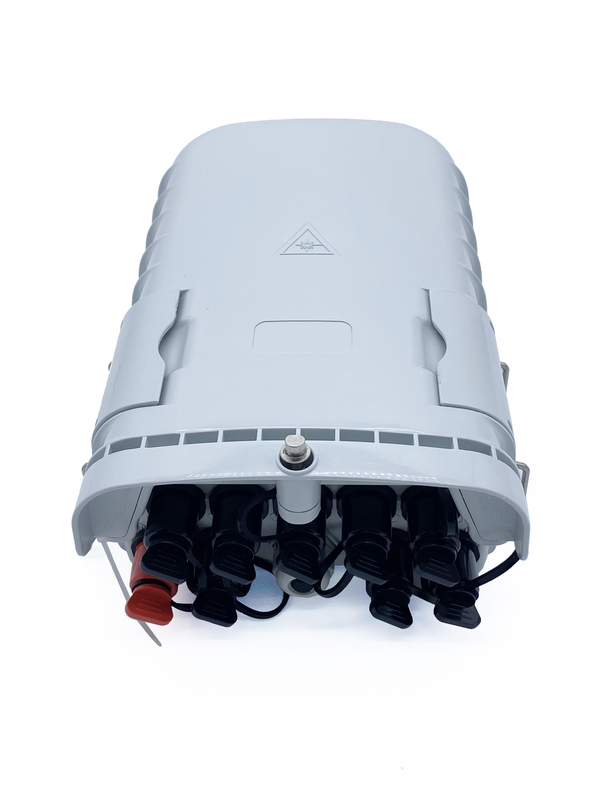

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap 0

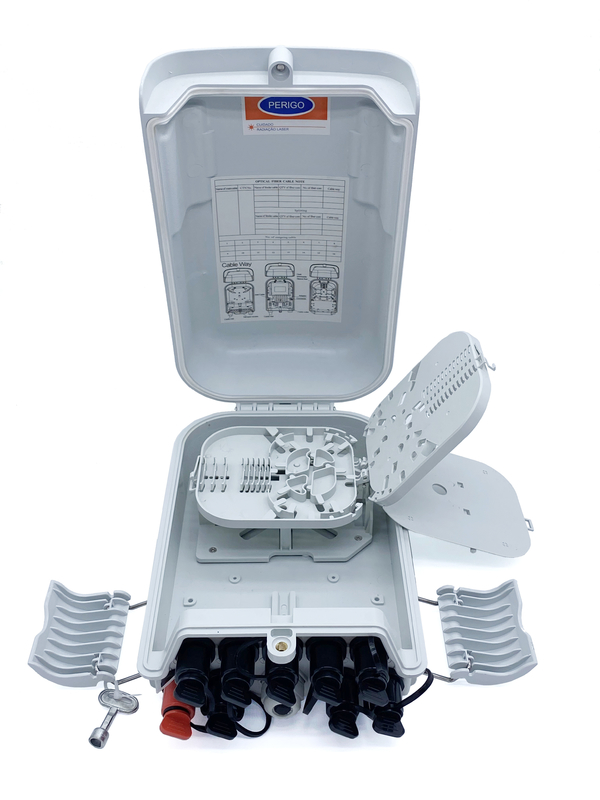

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap 1

Feature

  • It is made of high impact plastic material, high strength, good performance
  • Can accommodate 1pc1x8 PLC mini splitter with SC Connector
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Outdoor wall mounted, pole mounted
  • Max. 24cores+12cores single fiber fusion splice in 2trays
  • Pre-install mini splitter, adapters, or pre-terminated assebmlies areavailable.
  • IP65 level for outdoor use

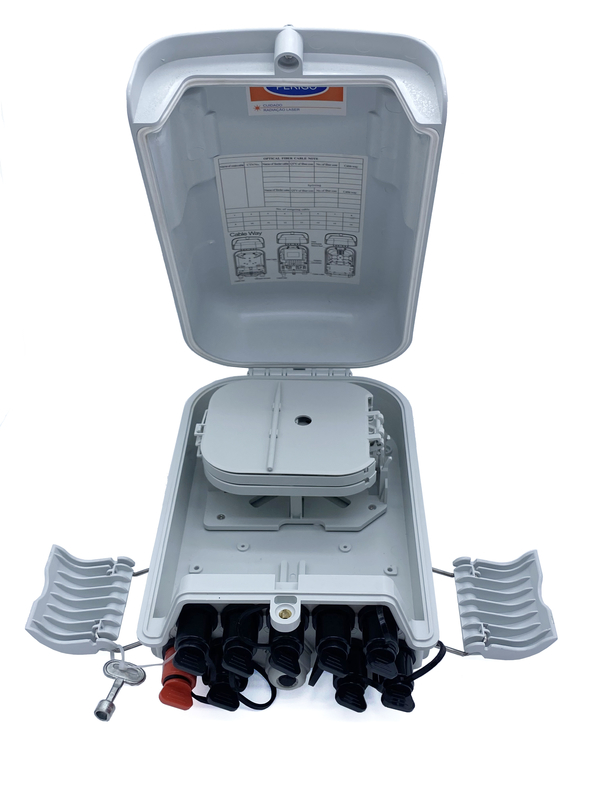

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap 2

Application

  • Telecommunication Networks
  • WAN,LAN ,CATV Networks
  • Data communications Networks
  • FTTH access terminal network (FAT)

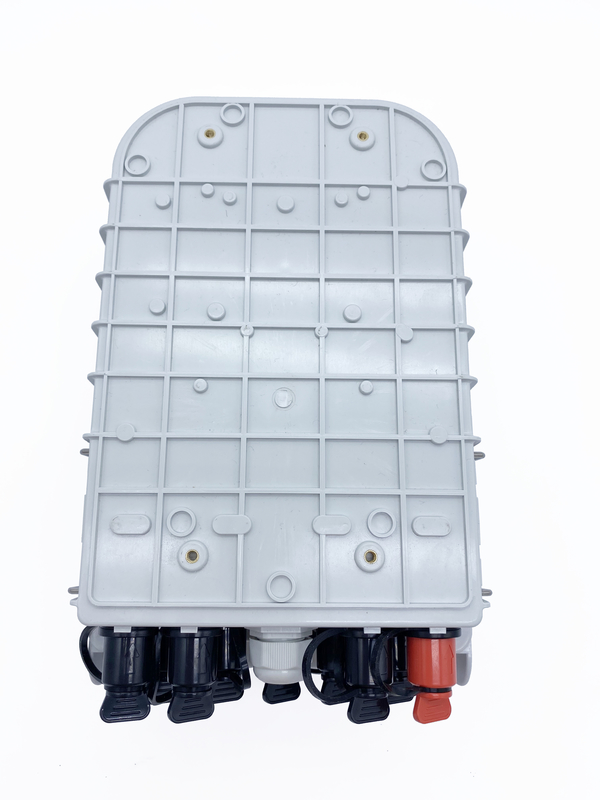

Pole Mount FTTH 1x8 Fiber Optic Cable Splitter Distibution Box 24Core CTO Nap 3

Wall mounting kits 4pcs
Screws 4pcs
Cable tie 10pcs
Heat shrink protection sleeve 16pcs
Key 1pc
Buffer tube 1pc
Pole mount kits 1set -optional, if need, charge additionally
Adapters 18pcs -optional, if need, charge additionally
Plc splitter 1x8, 1x16 -optional, if need, charge additionally
