Single Mode Field Installable Connector , Terminated Fiber Connector SC PC

China Single Mode Field Installable Connector , Terminated Fiber Connector SC PC supplier
Single Mode Field Installable Connector , Terminated Fiber Connector SC PC supplier Single Mode Field Installable Connector , Terminated Fiber Connector SC PC supplier Single Mode Field Installable Connector , Terminated Fiber Connector SC PC supplier Single Mode Field Installable Connector , Terminated Fiber Connector SC PC supplier

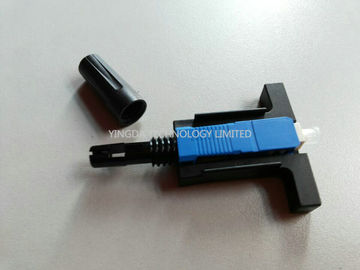

Large Image :  Single Mode Field Installable Connector , Terminated Fiber Connector SC PC

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: YD-FIC-SC/UPC-F

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: 1pc /plastic bag
Delivery Time: 5 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 500,000pcs per month
Contact Now
Detailed Product Description
Material: Plastic House Color: Blue
Fiber Type: Single Mode Back Cover: Yes, Black
Insertion Loss: < 0.3 DB Return Loss: > 45 DB,(typical 50dB)
Pack: Plastic Bag Total Length: 55mm

Field Terminated Fiber Connector SC PC, SC Field Installable Connector





Sell point:



1.SC cover type, cable cut length: 24mm / 10mm

2. Apply to 2mm* 3mm drop fiber cable

3.Ceramic V-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber







Description



Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector in assembly.

 It can provide Open flow and Pre-polished and curing type products, whose optical and mechanical

specification meets the optical fiber connector standards .


The structure of crimping position is a unique design, and need not glue curing, polishing neither any

consumables. Adopting fiber pre-installed structure, and convenient for field installation.





Features

  • Provide Open flow and Pre-cast type of products
  • Adopting fiber pre-installed structure
  • Convenient for field installation
  • VFL window: Immediate feedback on successful termination
  • No epoxy or polishing required, easy assembly in the field
  • Fiber termination can be reset, save time and energy ,reduce scrap
  • No special tools required: Common fiber tools, readily available
  • Reliability and superior performance
  • Repeatable times is no less than 50 times;
  • Long life span design, more than 30 years.
  • Precise mechanical dimensions
  • Low insertion loss, high return loss
  • Comply standard of IEC61754-4



Application

  1. Premise environments
  2. Connections at the desk for LAN environments
  3. Patch panels
  4. Direct equipment termination
  5. Fiber to the Subscriber / Home (FTTH) applications
  6. Repair/replacement requirements
  7. Equipment test leads



Specification



Type

Parameters

Insertion loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

≤ -40dB

Bare fiber strength

>5N

Clad strength

>10N

Tension

>50N

Mechanical durability (500times)

IL ≤ 0.2dB & RL ≤ 5dB

Operating Temperature

5 ºC to +70 ºC



Order information



  1. Connector: SC/UPC, SC/APC
  2. Cable type: indoor cable 0.9mm,2.0mm,3.0mm or drop cable 2x3mm
  3. Connector color: blue, green
  4. Package: 10pcs/set or 1pc/set, customized
  5. OEM ok

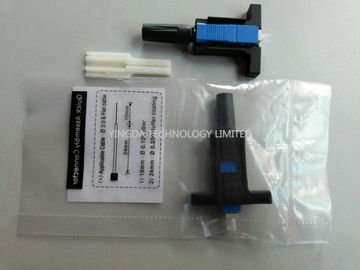

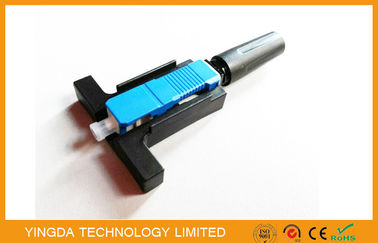

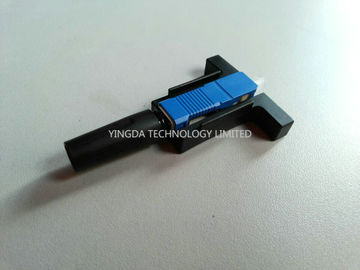

Single Mode Field Installable Connector , Terminated Fiber Connector SC PCSingle Mode Field Installable Connector , Terminated Fiber Connector SC PCSingle Mode Field Installable Connector , Terminated Fiber Connector SC PC
