1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH

China 1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH supplier
1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH supplier 1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH supplier 1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH supplier 1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH supplier

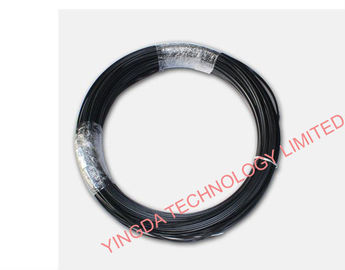

Large Image :  1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPC-THSS-A02

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 300pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Connector: SC/UPC SC/PC Fiber Count: 1core
Insertion Loss: <0.3dB Cable Diameter: 2*3.0mm
Fiber Type: Singlemode Package: Plastic Bag
Cable Color: BLACK Strength Member: FRP Or Steel

Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH 1Core





The patch cord which use FTTH drop cable is FTTH drop cable patch cord, the FTTH patch

cord length is generally 3-300meters. The FTTH drop cable patch cord length can be

customized, no need weld, direct installation,save labor cost, now it is widely used by

worldwide major operators, and also gradually been widely used in optical fiber video

monitoring installation.





Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network
  2. transmission performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression
  4. performance, protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and
  7. maintenance;
  8. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath, environmental
  9.  protection.
  10. Can be matched with a plurality of field connector, can be terminated at site.
  11. Due to its soft and light, it is widely used in access network; so it is also called indoor
  12. access network butterfly cable, and due to its shape called butterfly optical cable,
  13. figure 8 cable.



Application

  1. For indoor wiring, terminal user directly use cable;
  2. Building introducing (drop) cable;
  3. FTTH indoor wiring;



Implementation standards



YD/T1997-2009 access network butterfly optical drop cable



Specification



Item

SC FC ST LC drop cable

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability

≤0.2

Plug times

1000 times

Repeatability

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C, PH5.5 for 7days



Delivery Length:



2km/drum or 3km/drum (reel), or customized



Order information



1. Cable type: Figure-8 or self-supporting

2. Strength member: FRP or metal

3. Sheath material: LSZH, PVC

4. Fiber count: 1core, 2core, 4core...

5. Fiber type:G652D, G657A1,G657A2



1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH1 Core Self Supporting FTTH Patch Cord SC - SC Fiber Optic Drop Cable Black FRP LSZH
