Outdoor FTTA LC Duplex Optical Cable Assembly Patch Cord GJFJV 7.0mm G657A2 2.0mm
| Place of Origin | china |
|---|---|
| Brand Name | YINGDA |
| Certification | ISO CE ROHS |
| Model Number | YDPC-DLC-DLC-0334-A202-005XXX |
| Minimum Order Quantity | 500 pcs |
| Price | negotiable |
| Packaging Details | 1 pc/ box, 200pcs / carton box |
| Delivery Time | 7days after payment |
| Payment Terms | Western Union, T/T |
| Supply Ability | 60,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector | LC/UPC | Fiber Count | 2 Core |
|---|---|---|---|
| Insertion Loss | <0.3dB | Cable Length | 5 Meter |
| Cable Diameter | 7.0 Mm | Fiber Type | Single Mode 9/125um |
| Package | Plastic Bag | Cable Color | Black |
| Appliatoin | Base Station | Cable Material | LSZH |
| High Light | FTTA LC Duplex Optical Cable,G657A2 Duplex Optical Cable,GJFJV fiber optic patch cable |
||
Product Description

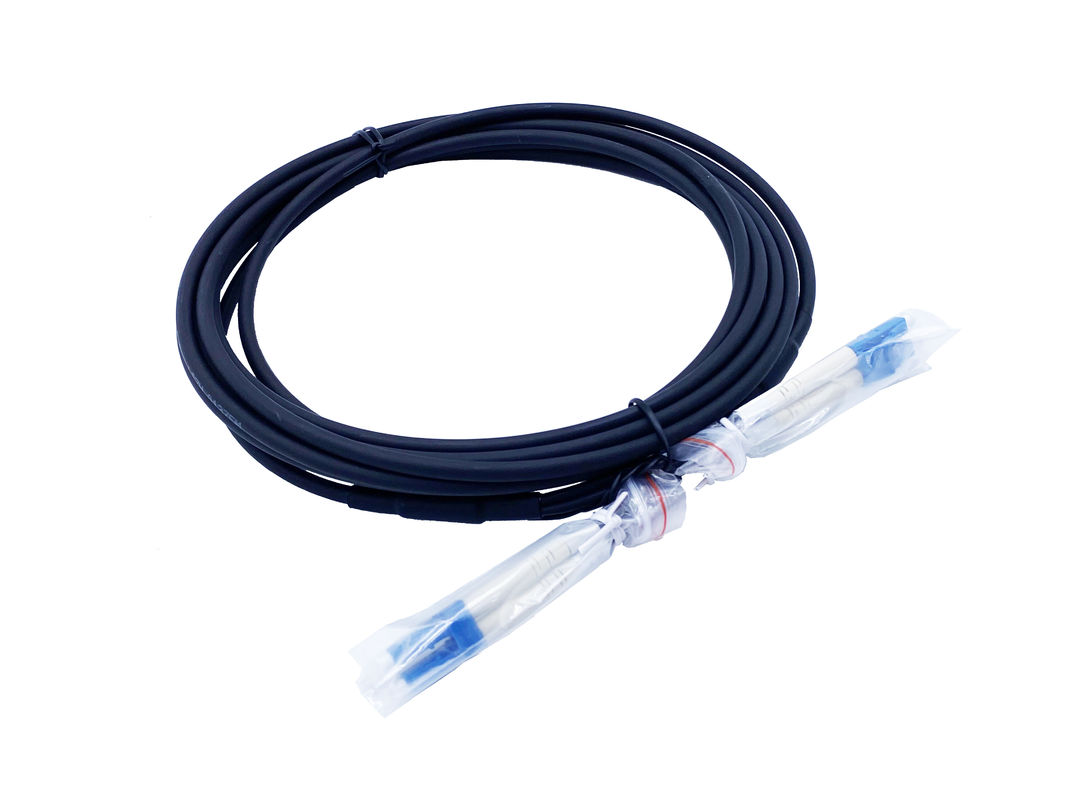

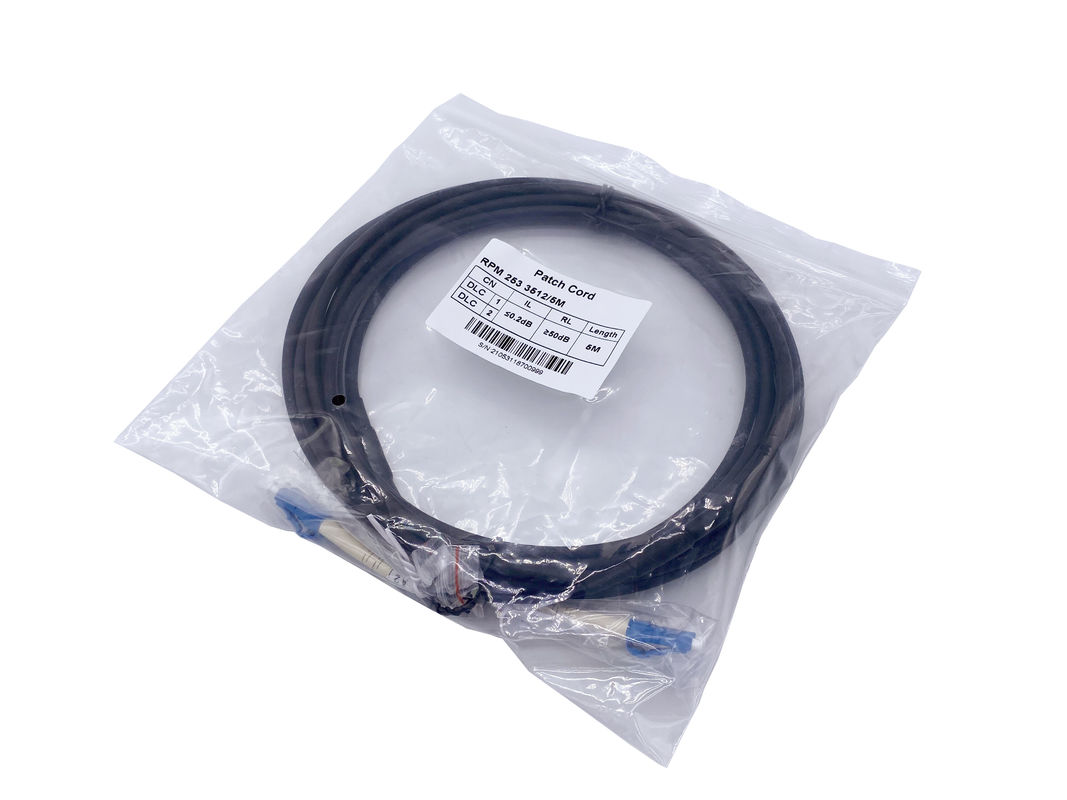

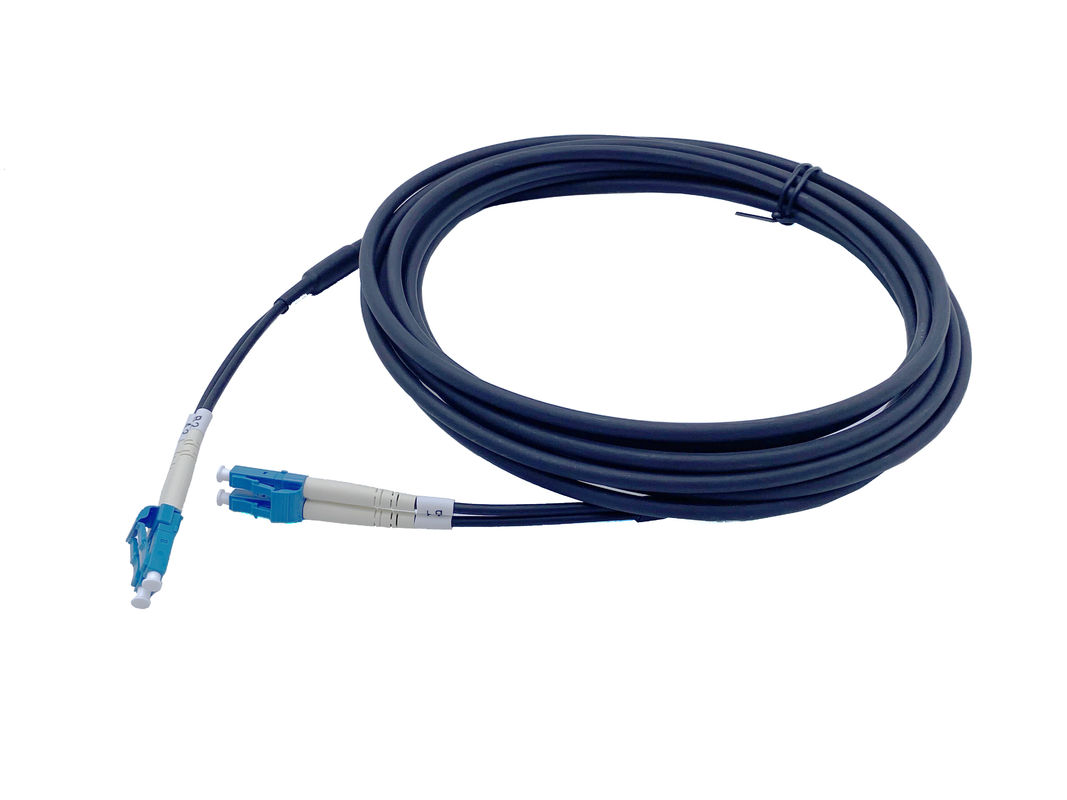

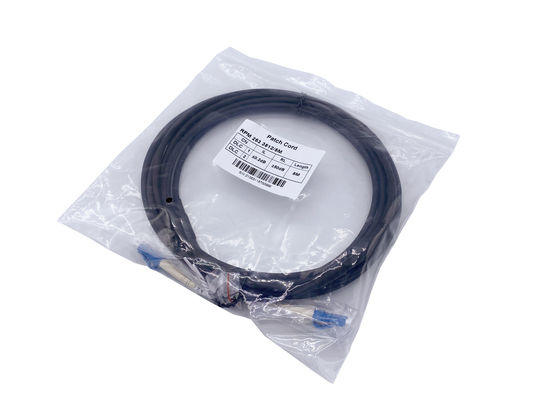

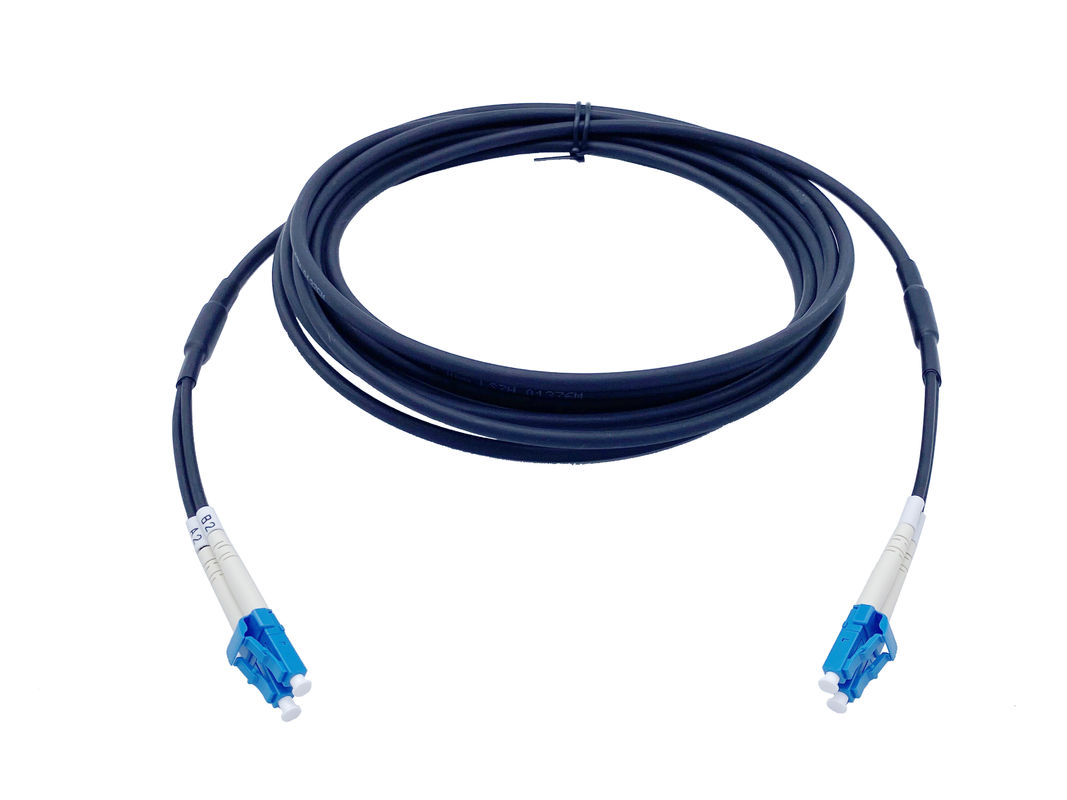

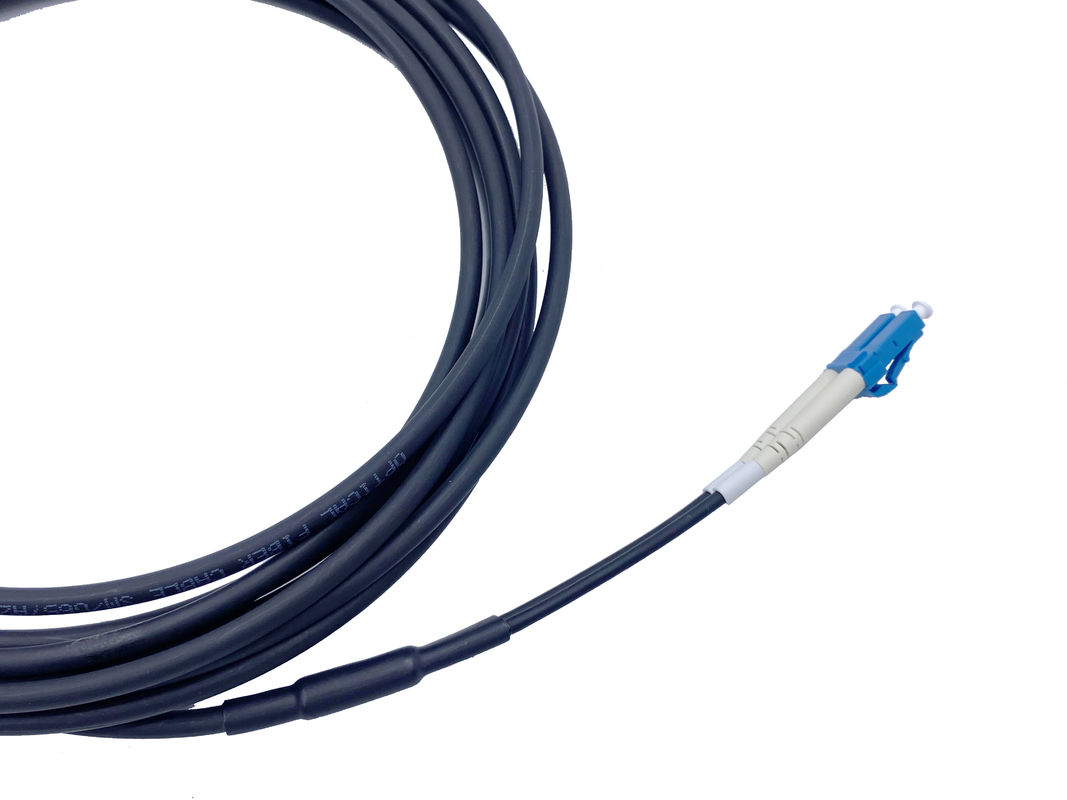

Outdoor FTTA LC Duplex Optical Cable Assembly Patch Cord GJFJV 7.0mm G657A2 2.0mm
Outdoor FTTA LC duplex optical cable assembly Patch Cord GJFJV 7.0mm G657A2 2.0mm breakout non-armored
FTTA unarmored base station optical fiber jumper, using φ 7.0mm LSZH black optical cable GJFJV. Both ends are in the form of branch armor, with LC / SC / FC / ST optical fiber connectors. In some application, will add pulling eye at both sides which are made from corrugated pipe or woven net outside of the connectors to protect and strengthen it during pulling in duct or pipes.
- Good mechanical and environmental performance
- Soft, flexible, convenient connection, and support high-capacity data transmission
- Meet various requirements of the market and users
- Length, cable color,cable material, labels all can be customized
- Samples are available
- Meet YD/T895-1997, ITU-T G. 657 Standard
Connector performance
| ITEM | PARAMTER | ||
| Fiber mode | Single mode | Multi mode | |
| Polish mode | UPC | APC | PC |
| Insertion loss | ≤0.2dB | ≤03dB | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Operating wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Test wavelength | 1310, 1550nm | 850nm, 1300nm | |
| Repeatability | ≤0.1dB | ||
| Interchangeability | ≤0.2dB | ||
| Durability | ≤0.2dB | ||
| SFiber Length | 1m, 2m….. any length optional | ||
| Length and tolerance | 10cm | ||
| Connector type | SC FC LC ST, etc. | ||
| Operating Temperature | -40C ~ +85C | ||
| Storage Temperature | -40C ~ +85C | ||
|
Fiber |
Cable |
Cable |
Tensile(N) |
Crush (N/100mm) |
Mini Bend |
Temperature |
|||
|
Long |
Short |
Long |
Short |
Dynamic |
Static |
|
|||
|
2 |
7.0 |
42.3 |
200 |
400 |
1100 |
2200 |
20D |
10D |
-40 ~+80°C |
Note:
- All the values in the table,which are for reference only,are subject to charge without notice.
- D is the outer diameter of the round cable
- The tensile and crush values in the table are minimum.
- Outer cable jacket and inner cable jacket are all LSZH material
Application
- FTTA FTTP FTTX outdoor base station remote traction
- RRU to BBU port interconnection
- 3G, 4G, 5G distributed base stations
- Power communication system, etc
- Aerospace & Defence
- Equipment diagnosis
- FO sensor
- WIMAX, BBU, RRU, RRH, LTE
BBU/RRU PATCH CORD:
Optical Cable Assembly, DLC/PC,DLC/PC,Single mode 9/125um (multimode 62.5/125 50/125um),
GYFJH 2A1a(LSZH),7.0mm, 2 Cores, 0.03m/0.34m,2mm, Outdoor protected branch cable(armored type)
Length= 10m, 20m xxx Meters, A end (RRU).
Order information -YDPC-CTA-CTB-F1F2-FTFC-CLXXX
| YDPC | - | CTA=Connector A | - | CTB=Connector B | - | F1=fanout length A | F2=fanout length B | - | FT=fiber type | FC=Fiber count | - | CL=Cable length | XXX=Waterproof type |
|
YD=yingda |
DLC=LC dupdx |
DLC=LC dupdx |
01=1CM |
01=1CM |
2D=G652D |
02=2core |
010=10mts |
PDLC |
For example:
Optical Cable Assembly,DLC/PC,DLC/PC,Multi-mode,GYFJH , 2A1a(LSZH),70m,7.0mm,2 ,Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable
ftta patch cord DLC-DLC single mode G65A72 2core-----Part No.: YDPC-DLC-DLC-0334-M202-070XXX
