SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished

China SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier
SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished supplier

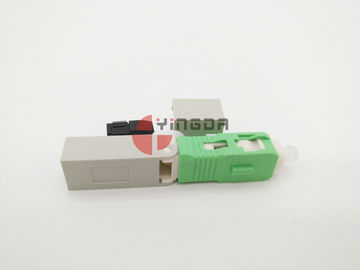

Large Image :  SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished

Product Details:

Place of Origin: CHINA
Brand Name: yingda
Certification: ISO
Model Number: YDFIC-SA-H

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: negotiable
Packaging Details: 10pc/pack
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 1000k per month
Contact Now
Detailed Product Description
House Color: Green Boot Type: Screw
Fiber Type: 0.9mm,250um,2mm,3mm Fiber Mode: APC / PC
Cable Type: Single Mode 9/125um Insertion Loss: Max.0.5dB

SC Mechanical Fast Connector, Fiber Optic Filed Installable Connector APC Green Pre-Polished





Fast Connector is also called Field Assembly Connector, Field Installation connector, quickly assembly connector. It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body. The assembly only requires normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.



Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode fiber and available with PC or APC ferrules.



Feature

pre-stubbed factory-polished ferrule that couples to the fiber being terminated.

Precision mechanical alignment insures low loss with a prosprietary gel.

Connector Type: SC

Fiber Application: Singlemode

Fiber Type: Simplex

Number of Fibers: 1

Maximum Cable Diameter (mm):2X3mm

Connector Ferrule: Ceramic



Specification



Item Parameter
Single-Mode
Insertion Loss Max≤0.5dB , Average≤0.3dB
Return Loss APC≥50dB;UPC≥45dB
Durability (1000 Mating) 0.2dB Max.
Operating Temperature -40°C~+75°C
Storage Temperature -40°C~+85°C

Remark: Ferrule Concentricity SM< 1um; MM< 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance±0.5 um.

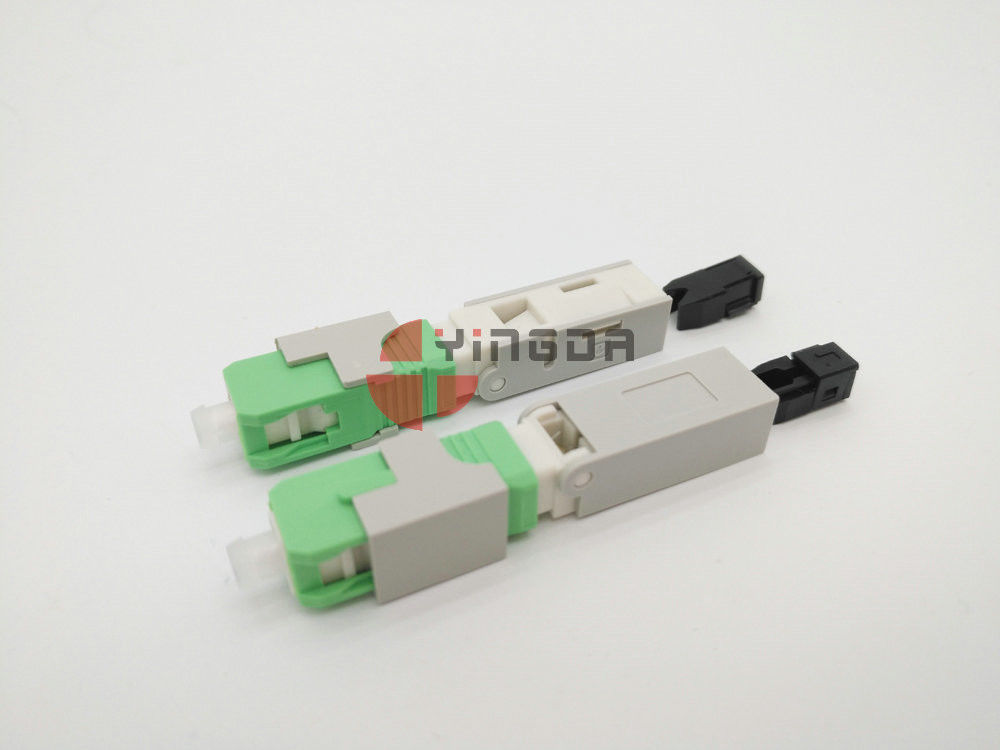

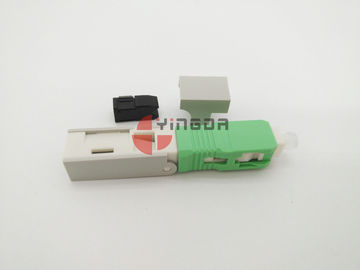

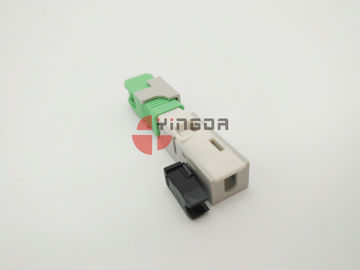

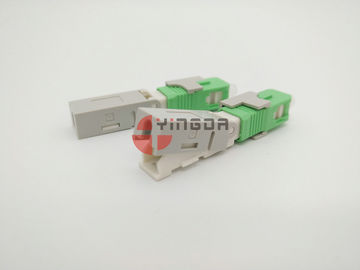

Product details



SC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre PolishedSC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre PolishedSC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre PolishedSC Mechanical Fast Fiber Optic Filed Installable Connector APC Green Pre Polished



Techanical requirements



ITEM SC/UPC SC/APC
Insertion loss

average≤0.25dB; test with standard connector and adapter≤0.5dB;

test with any connector and adapter≤0.7dB

Return loss ≥45dB ≥55dB
Cable type 3.0*2.0mm drop cable,§3.0/§2.0 round single fiber cable or other type
Fiber diameter 0.125mm bare fiber; 0.25mm cladding fiber;0.9mm tight tube fiber
Fiber mode Singlemode 1310/1550nm
