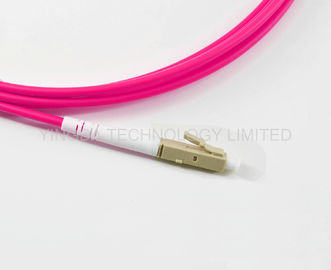

LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket

China LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket supplier
LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket supplier LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket supplier LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket supplier LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket supplier

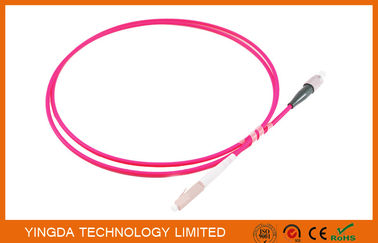

Large Image :  LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS,ROHS
Model Number: YDPC-SCFC-M4SX-LP02

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: us$1.28
Packaging Details: 1pc/plastic bag with test report, individual package
Delivery Time: 5day
Payment Terms: Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description
Cable Jacket: LSZH Connector: SC/PC, FC/PC
Fiber Mode: OM4 50/125um Cable Color: Pink
Length: 2meter Fiber Count: 2fibers
Cable Diameter: 2.0mm Net Weight: 0.03kg
Label: English, Neutral Test Report: Yes
Customer Brand: On Label Or The Cable Print

LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket





Optical fiber jumper is used as a link between fiber optic cable and equipment wiring. It has a thick

protective layer, generally used in the connection between the transmitter and the terminal box.



Optical fiber patch cord is similar to the coaxial cable, but no net shielding layer. In multimode fiber

center is the glass core for light propagation. The diameter of the core is 50-65um, roughly equal to the

 size of a person's hair. And single-mode fiber core diameter is 8-10um,

outside the core surrounded by a layer glass coating whose refractive index is lower than that of the

core in order to keep the fiber in the core. Then a thin layer of plastic jacket to protect the coating.



Features



  1. In accordance with Telcordia GR-326-CORE standard
  2. Low insertion loss, high return loss and high stability
  3. Good repeated mating characteristics, good interchangeability
  4. Using standard metal parts
  5. Ceramic ferrule, PC, UPC, APC grinding
  6. Can provide PVC, LSZH, OFNP, OFNR, TPU and other different colors, different outer sheath
  7. material
  8. Can provide G657A, G652D different fiber core material

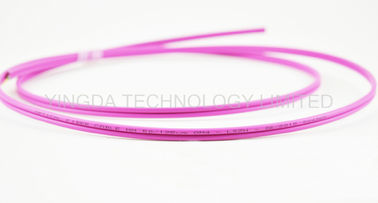

Indoor cable GJFJV

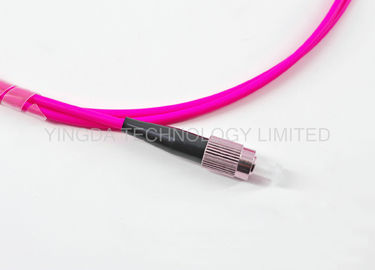

LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket



Application

Fiber jumper products are mainly used in communications equipment, fiber to the home, LAN, optical

fiber sensor, optical fiber communication system, optical fibre connection device defense combat

readiness. Suitable for limited TV network, telecommunication network, computer optical fiber network

and optical fiber test equipment, etc.. Generally speaking, it is mainly used in below several aspects:

  • optical fiber communication system
  • Optical access network
  • Optical fiber data transmission
  • Optical fiber CATV
  • LAN LAN
  • Test equipment
  • Optical fiber sensor



Specifications



Optical

performance

item



Test condition

Singlemode

Multimode

Insertion loss

UPC

SM:1310/1550nm

≤0.2dB

≤0.3dB

Mm:850/1300nm

APC

SM:1310/1550nm

≤0.3dB



Return loss

UPC

SM:1310/1550nm

≥55dB

≥35dB

Mm:850/1300nm

APC

SM:1310/1550nm

≥65dB



Mechanical loss

Compact test

1.8M height,8times

<0.1dB

<0.1dB

Vibration test

10-60Hz, 1mm

full amplitude

<0.1dB

<0.1dB

Plug life

>1000 times

<0.1dB

<0.1dB

Tensile strength

>100N

<0.1dB

<0.1dB

Environmental

loss

High low temperature

cycle test

-25~+75°C,2cycles

<0.2dB

<0.2dB

High temperature test

+80°C,2hours

<0.2dB

<0.2dB

Low temperature test

-40°C,2hours

<0.2dB

<0.2dB

Damp heat test

+40°C, 90-95%RH, 2hours

<0.2dB

<0.2dB



Order information



1. Connectors: FC,ST,SC,LC,MTRJ,MU,MPO,E2000,SMA,etc.

2. End face: UPC, APC, PC

3. Cable outer diameter:φ0.9,φ2,φ3

4. Fiber count: simplex, duplex,4core, 6core, 8core,12cores,24core,or customized

5. Fiber type:G652D,G657A,G655,G657A2,50/125,62.5/125,OM3 50/125-150, OM4 50/125-300

6. Connector color: blue, beige,green, aqua, purple,etc

7. Boot color: gray,blue, green, white, black, red, aqua, etc

8. Length: 1meter, 1.5meter... customized



LC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink JacketLC / PC - FC / PC Fiber Optic Patch Cord Jumper OM4 50/125um Multimode LSZH 2M Pink Jacket
