High Precision Automatic Return Fiber Optic Cleaver FTTH Fiber Optic Tool Kits
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDimension | 65*76*61mm | Suitable Fiber | Single Core(0.25-0.9mm)-12cores |
---|---|---|---|
Cutting Length | 9-16mm | Weight | 273g |
Suitable Operating Temperature | -40-80 °C | Suitable Storage Temperature | -40-80 °C |
Material | Metal | ||
High Light | Automatic Return Fiber Optic Cleaver,High Precision Fiber Optic Cleaver,Fiber optic Tool Kits Fiber Cleaver |

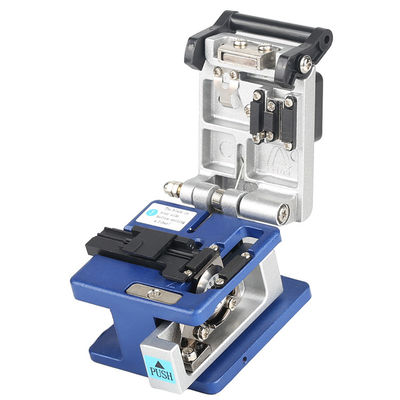

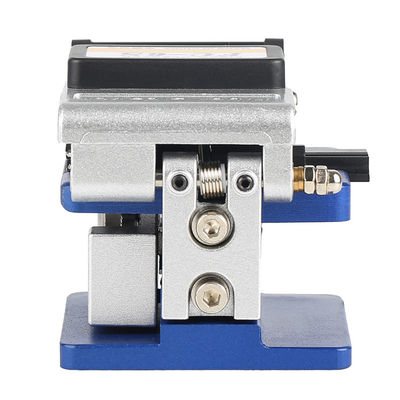

High Precision Fiber cleaver FTTH cold splicing tool automatic return cleaver Fiber optic Tool Kits FC-6S
The Cleaver sets the standard for portable, reliable and ease of use. Available
for either single fiber or ribbon splicing (up to 12 fiber ribbons) applications, the
Cleavers are compatible with all Telecommunications fusion splicers. Designed for
excellent portability, is equally at home in a splicing van or in a bucket truck
and is ideal for FTTx applications. The 16-position blade yields 48,000 single-fiber cleaves,
or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap
collector conveniently stores fiber shards until they can be safely discarded.
Technical specifications:
- Fiber: silicon optical fiber, optical fiber
- Cutting naked fiber diameter: 125 m
- Optical fiber coating diameter: 250~900 M
- Cutting angle: 0.5 degrees (single core fiber)
- Cutting blade life: 48000 times (1000 times* 16 times rotate the blade* 3 height)
- Size / weight: 65*76*61mm (mm) / 273g
Application
- Telecommunications Engineering and repair
- CATV engineering and maintenance
- Optical cable manufacturers
Specification
Applicable fibers |
single optical fiber or ribbons |
Bare fiber diameter |
125mm |
Cleaving angle |
0.5 degrees with single fiber |
Blade life |
36,000 fibers |
Blade positions |
3 height and 16 rotating positions |
Dimensions |
65*76*61mm |
Weight |
273g |
Product Description

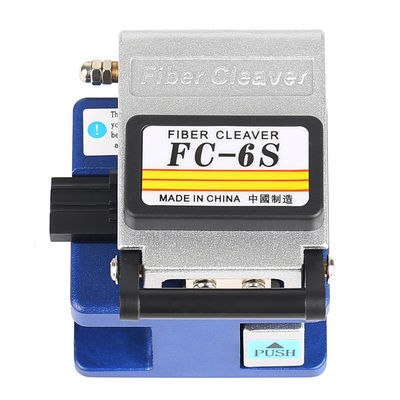

Model: FC-6S
Applicable fibers: Singlemode or Multimode Use
Fiber Diameter: 125um
Cutting angle: 0.5 Degrees
Jacket OD: 0.25 & 0.9mm
Provides approximately 36,000 cleaves
250um Coated or 900um Buffer fiber
Cleave Length:
9 - 16mm (Single Fiber - 0.25mm Coating)
10 - 16mm (Single Fiber - 0.9mm Coating)
Size: 63W × 76D × 61H (mm)
Weight: 475g

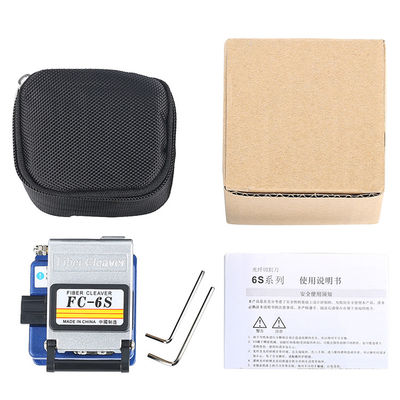

Package:
1 x Fiber Optic Cleaver
1 x Fiber Optic Cleaver Bag
1 x Instructions
1 x Large adjustable knife
1 x Small adjustable knife
