Fiber Optic OM3 Patch Cord 10G

China Fiber Optic OM3 Patch Cord 10G supplier
Fiber Optic OM3 Patch Cord 10G supplier Fiber Optic OM3 Patch Cord 10G supplier Fiber Optic OM3 Patch Cord 10G supplier Fiber Optic OM3 Patch Cord 10G supplier

Large Image :  Fiber Optic OM3 Patch Cord 10G

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: MCP-LSF-DX01

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 150pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Connector: SC/UPC, SC/PC Connector Fiber Count: Duplex
Insertion Loss: <0.2dB Cable Length: Customized
Cable Diameter: 2.0 Mm Fiber Type: Multimode 50/125um OM3 10G
Package: 1pc/ Plastic Bag Cable Color: Aqua

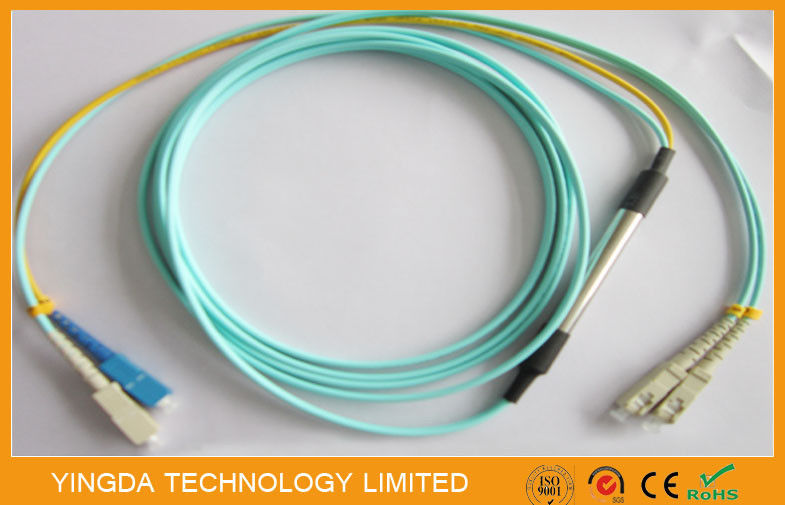

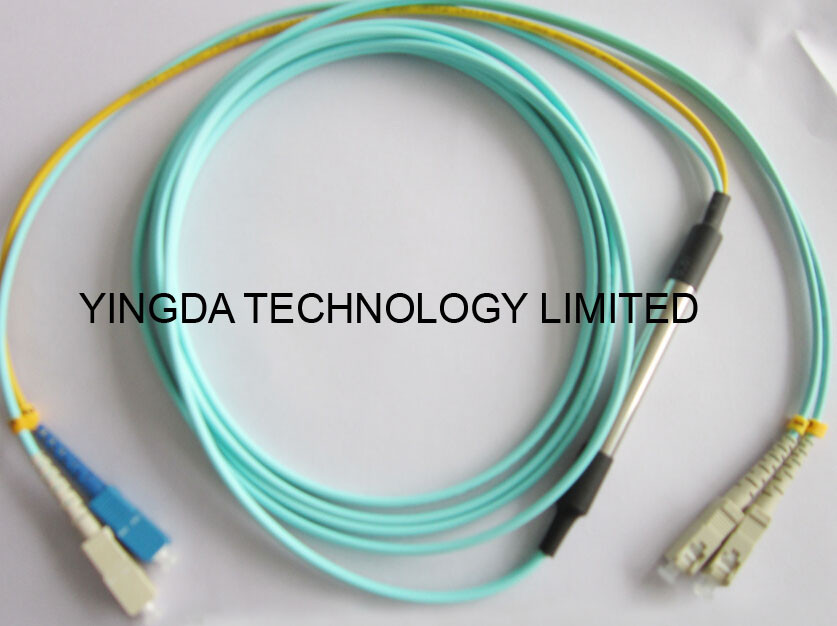

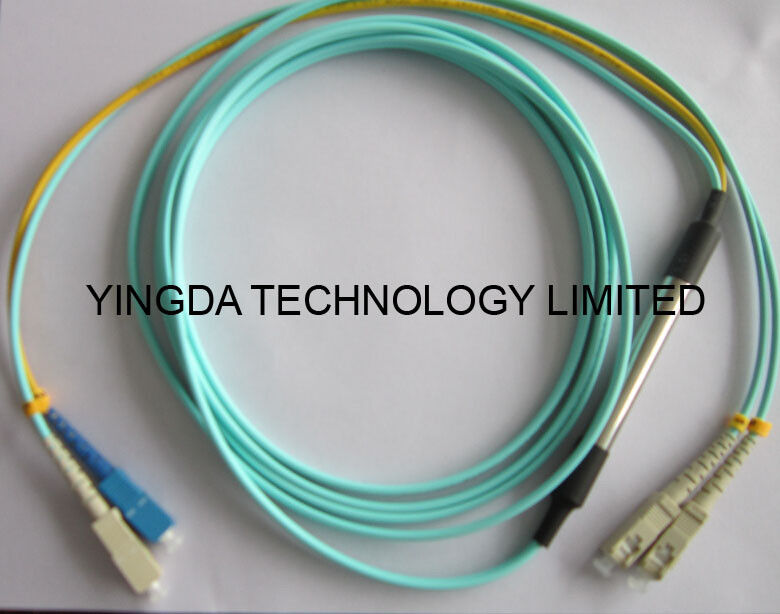

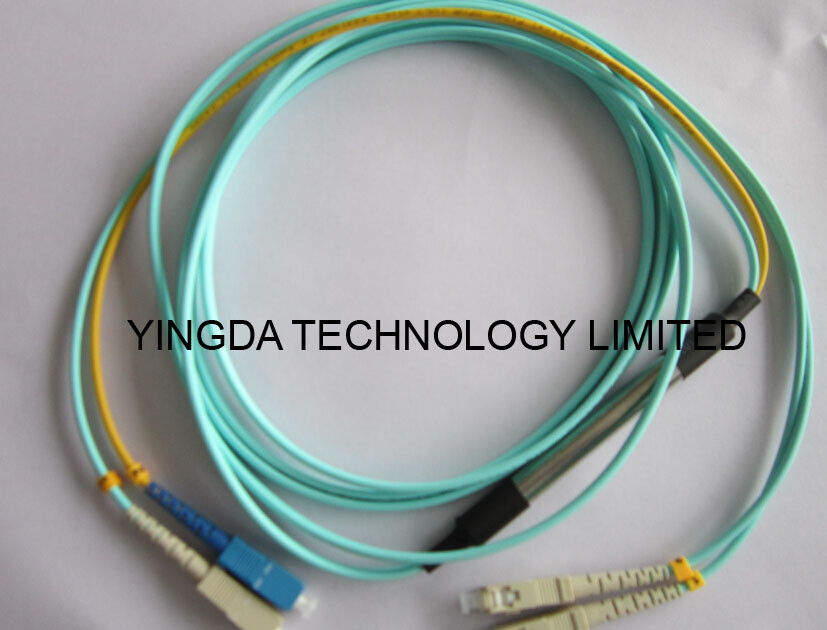

Mode Conditioning Fiber Optic Patch Cord SC - SC Duplex 50/125um OM3 10G




YINGDA Mode Conditioning Duplex Fiber Optic Patch Cable (50/125um or 62.5/125um) is use in

Gigabit Ethernet 1000BASE-LX applications. When deploying new high-speed 1000BASE-LX

routers and switches in existing multi-mode backbones, mode conditioning cable are a must.

Our Mode Conditioning cables allow 1000BASE-LX Ethernet to be run over a multi-mode

fiber optic backbone by offsetting signal loss. All Mode Conditioning Fiber Optic Cables

 from the YINGDA are IEEE 802.3z compliant and completely eliminate Differential Mode

Delay (DMD).



Features

  1. Comply with the IEEE 802.3 z (Gigabit Ethernet) standards
  2. Shielding effect of differential mode delay
  3. Low insertion loss (< 0.4 dB)
  4. Suitable for 50 um and 62.5 um multimode optical fiber cable
  5. Permanent displacement seal
  6. Suitable for the current cable design

Fiber Optic OM3 Patch Cord 10G

Fiber Optic OM3 Patch Cord 10G



Specification



Item

Multi-mode fiber(MM)

Fiber type

62.5/125um

50/125um

Average insertion loss/dB

0.4



Max insertion loss/dB

0.5



Interchangeability/dB

<0.2



Fiber offset value/um

17<offset<23

10<offset<16

Max Angle offset/°

1

1

Working temperature/℃

-20~+70



Tensile strength/kg

>10







Application

  1. Remote transmission to short transmission of one billion - bit systems
  2. The sensor
  3. Optical fiber access network
  4. Local area network (LAN)
  5. Gigabit Ethernet network - 1000Base LX wavelength (1310nm)



Order information



Item

Equipment

connector type

Plant

connector type

Fiber type

Cable

diameter

Cable

 length

MCP









FC(PC/UPC)

FC(PC/UPC)

50/125um

2.0mm

0.5meter

SC(PC/UPC)

SC(PC/UPC)

62.5/125um

3.0mm

1.0meter

LC(PC/UPC)

LC(PC/UPC)





...

ST(PC/UPC)

ST(PC/UPC)









MTRJ











We can also offer other types:

Fiber Optic OM3 Patch Cord 10G
