SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers

China SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers supplier
SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers supplier SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers supplier SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers supplier SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers supplier

Large Image :  SC ODF 96 Port Patch Panel Fiber Optic Distribution Frame Welding Tray 12 Fibers

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO, SGS
Model Number: ODF-UT96-SC/FC

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Price: Negotiable
Packaging Details: 1pc / carton box
Delivery Time: 7 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Working Temperature:: -40~+85 (℃) Fiber Optic Type: Singlemode Or Multimode
Material: Cold Rolled Steel Sheet Connector Type: FC, SC ,LC, ST, E2000
Weight: 11kgs Polish: UPC APC PC
Welding Tray Capacity: 12 Fibers Dimension: 485*300*252 Mm
Max Capacity: 96cores Welding Tray Qty: 8 Pcs

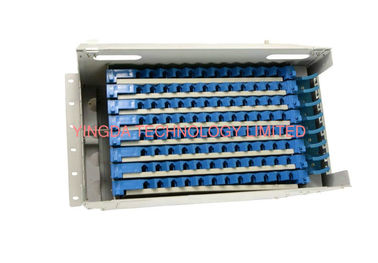

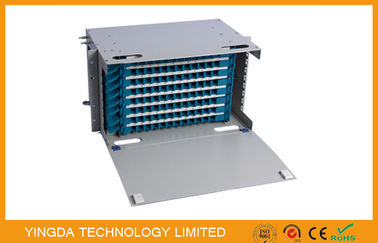

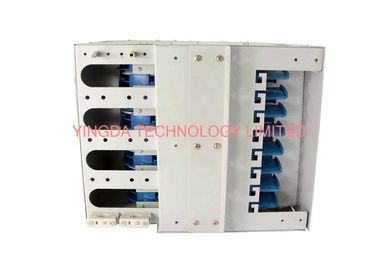

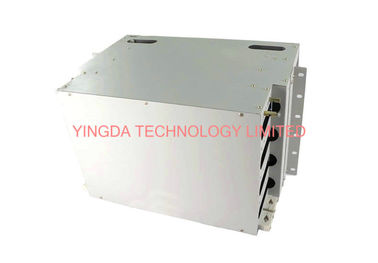

96 Core SC ODF Patch Panel Fiber Optic Distribution Frame Welding Tray 12Fibers







ODF optical fiber distribution frame is standard 19 inch chassis, capacity from 12 core to 96core,

high density, all modular design. This unit box make fiber splicing, fiber cable storage, cable

distribution in one set, each fused distribution module can be individually extracted, satisfy the

need of on and off the frame operation.



Large capacity optical distribution frame also are good operation, fused distribution module can

be installed FC, SC,ST, LC and many other adapters, and is suitable for common fiber optic

pigtails and ribbon pigtail, equipped with 12 core integrated fiber melting unit tray, can be

directly welded.





Main Technical Parameters



Environment temperature

-5 ~+45°C

Relatively humidity

≤85% (+30°C)

Atmospheric pressure

70~166 KPa

Connector attenuation

(Interchangeable and repeat)

≤0.5dB

Insertion loss

≤ 0.3dB

Return loss

APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB

  1. Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
  2. Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
  3. By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
  4. Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.



Structure features



  • Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
  • The downward and the side door use imported lock
  • The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
  • Configure reinforced core and cable fixed seat,complete accessories



Performance advantage



  • Good sealing performance, flexible configuration, quick installation
  • Set  three functions: the optical fiber splice, cable storage, cable distribution in one set
  • Easy operation, reliable grounding, protect the safety
  • The full protection of the jumping fiber, ensure the bending radius ≥ 40mm

Spare parts:

Splice tray, sleeve, buffer tube
