SHENZHEN YINGDA PHOTONIC CO.,LTD.

          Fiber Optic Connects The World

Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
Home ProductsFiber Optic Patch PanelCold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters
Good quality Fiber Optic Splitter Box for sales
Good quality Fiber Optic Splitter Box for sales
The fiber splitter box so nice. Nice quality, nice package, nice service....Looking forward to our next cooperation :)

—— Antonio

thanks for your fast delivery every time,and sound quality, and every time u offer special support for us. like u company so much

—— Chris Chataika

dear sophie very time ur voice is so sweet and always provide us full solution and fast reply for us, and help us got more and more business, thanks

—— Carla Lo.

am very satisfied with your quality, and you always finish my order on time, hope do more business with you in the future.

—— Benjamin Fernando

I'm Online Chat Now

Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

China Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters supplier
Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters supplier Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters supplier Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters supplier Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters supplier

Large Image :  Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: GPSM-2SC144

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: 1pcs / box
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: Cold Rolled Steel Max Capacity: 288 Cores Single Fiber
Size: 430*300*6U Adapter Qty: 144 Pcs SC Duplex Adapter
Logo: Ok Sample: Ok

288 Cores Slide Tray Fiber Optic Distribution Box Patch Panel with SC Duplex Adapters





Metal Slide Tray Drawer Type Fiber optic patch panel are the auxiliary equipment for terminal wiring in optical fiber transmission communication network, which is suitable for indoor optical cable splice directly

and branch connection, and protective the fiber.



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex AdaptersCold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

Completed with SC/APC adapters and pigtails, the rack mount ears is fixed on the box with screws at factory, when on-site construction, take it and install on the rack.





Features

  • Applicable in the termination and 19'' standard structure,
  • Metal sliding design
  • rack mount in optical distribution frame ODF
  • Suitable for FC,SC,ST,LC,E2000 adapters
  • Cold rolled steel sheet, with electrostatic spraying
  • Box size: 430*300*6U



Patch Panel Structure

Include 3 parts: box body, internal components, optical fiber connector protector.



1. Box body shell

convenient to open and install, have high voltage grounding device for the metal components.

2. Internal components mainly 3 items:



A. support: the internal structure body, used for the internal support;

B. Splice tray: to store optical fiber connector, protection pieces and the remaining fiber,

the remaining optical fiber length≥1.6m, bend radius37.5mm, also have remark to identify the fiber;

C.: fixed device: to fix the optical cable sheath, strengthen member and wiring pigtail.

Protection parts of fiber optic connectors: sleeve and cable rubber gland



Specification



Type

Dimension

(mm)

Max capacity

(core)

Carton size

(mm)

Qty/

carton

(pc)

G.w

(kg)

GPSM-1U-SC12 430*300*1U 12 485*420*350 5 29
GPSM-1U-FC24 24 485*420*350 5 29
GPSM-1U-2SC24 48 485*420*350 5 29
GPSM-2U-FC48 430*300*2U 48 500*355*550 4 26.5
GPSM-4U 130*300*4U 192 500*350*540 1 18.9



Production line pictures:



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

Internal design: with 24cores fiber optic splice tray, white, brand new ABS material, with 2 rods for cable manangement.

the slide is metal material, good quality and easy to operate



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

front overview, at back of the box, there is enough cable management kits, and enough space for cable storage.



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

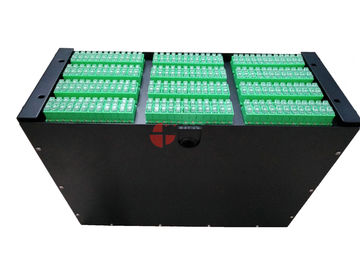

overview in front, 144pcs SC duplex adapter with dustproof cover, it is fix by screws to keep it stable and anti-dust.



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

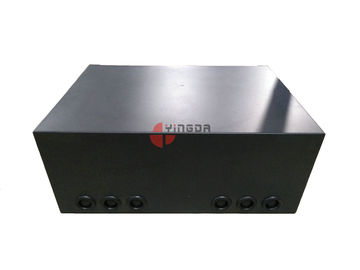

back with 6 pcs round cable ports, with rubber seals



Cold Rolled Steel Fiber Patch Panel 288 Cores Slide Tray With SC Duplex Adapters

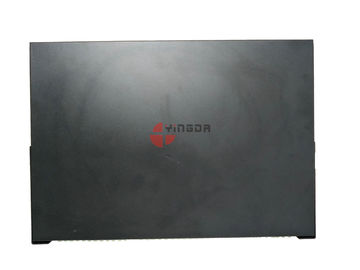

all box is packed with plastic film when delivery, for better protection.

Contact Details
YINGDA TECHNOLOGY LIMITED

Contact Person: Ms. sophie

Tel: +8618688982406

Send your inquiry directly to us (0 / 3000)
