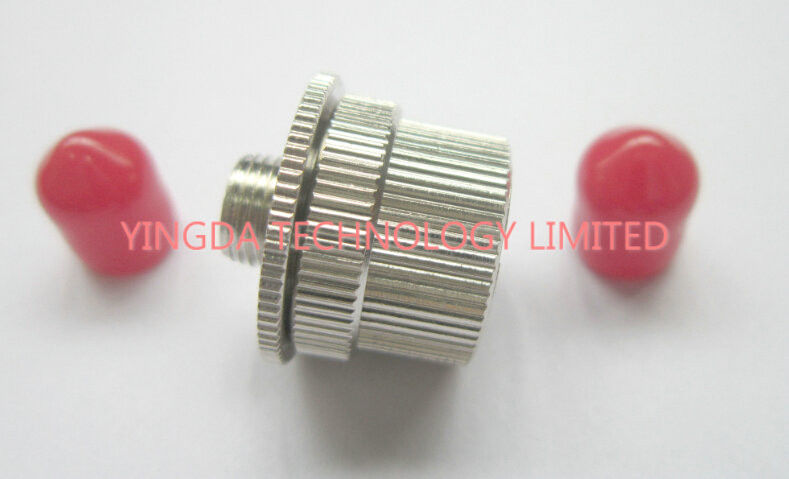

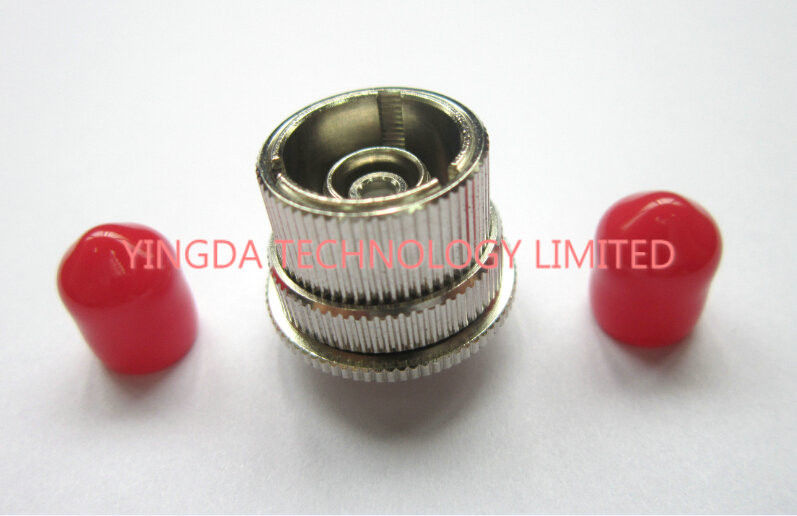

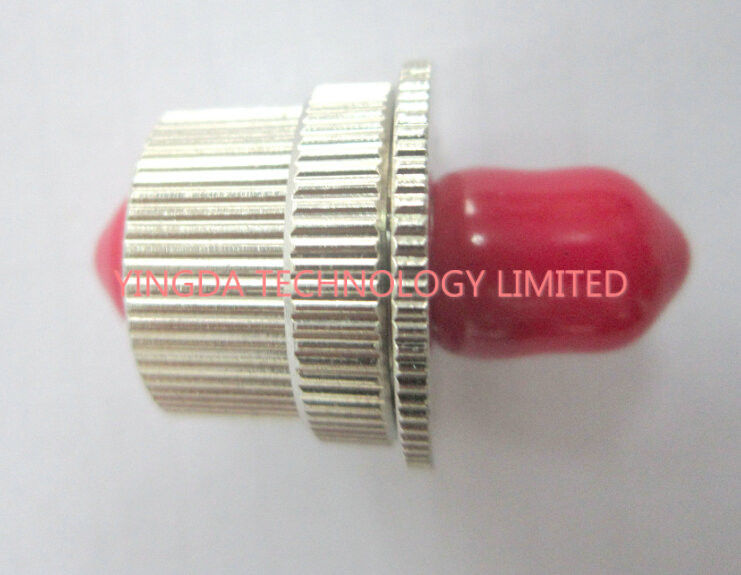

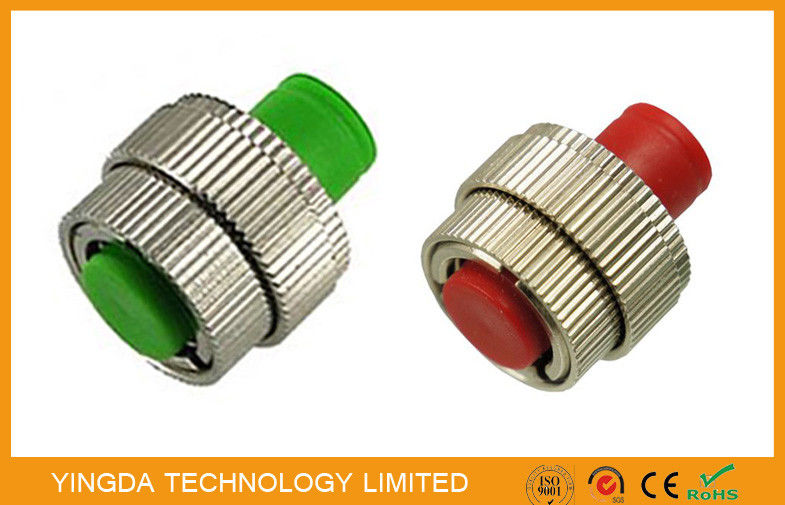

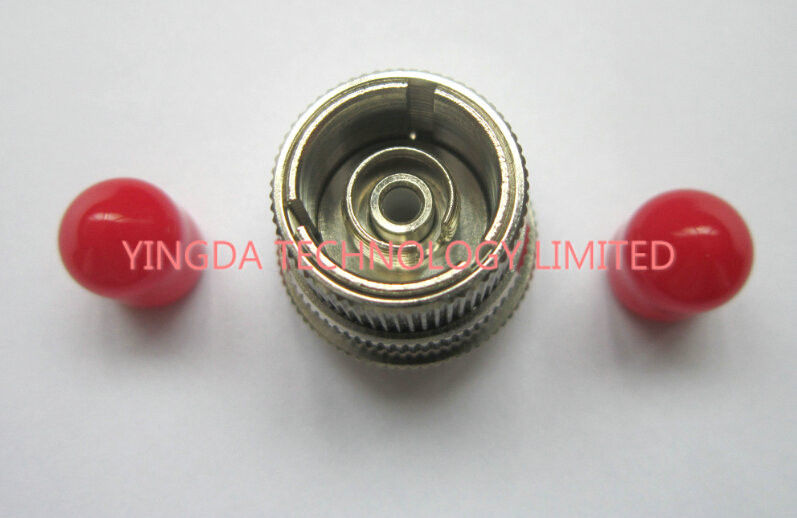

FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um

China FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier
FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um supplier

Large Image :  FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO, SGS
Model Number: ATTN-FCS-VOA-01

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 pc / plastoc bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Attenuation: 0-30dB Test Wavelength: 1200-1650nm
Body Material: Metal Additional Loss: 0.1dB
Working Temperature:: -40~+85 (℃) Fiber Optic Type: Single-mode
Industry Standard: Telcordia TA-NWT-001209 Connector Type: FC/PC
Dust Cap: Red

FC Variable Fiber Optic Attenuator, FC APC 0-30dB VOA Attenuator





FC Mechanical Adjustable (variable) optical attenuator is generally used in optical measurement.

In the when measure optical receiver sensitivity, usually place in the optical receiver input to adjust

receiving light power. It is in the middle of fiber connector, suitable for all kinds of fibre optic

connector with all high performance of connectors.



When use optical attenuator, please keep the environment clean and dry, put on the dust cap

when not in use, handle with care, strictly forbid collision.





Features

Application

 Good Interchangeability and repetition

Equipment test

Accurate attenuation value

The connection between equipment

High reliability

The connection between jumper

A variety of optional

Cable TV network

comply with IEC standards and

 ROHS requirements

metropolitan area network,

wide area network



Specification



Item

Single mode 9/125um

Test wavelength

1310nm, 1550nm

Return loss

≥60.0dB

Working wavelength range

1250~1650nm

The attenuation range

0~30dB

The attenuation values

 of tolerance

0~5dB, ±0.5dB

5~30dB, ±10%

Repeatability

≤0.10dB

Interchangeable

≤0.20dB

Plugging performance

Pulg 1000 times,attenuation

change ≤0.20dB

The maximum input

optical power

≤200mW

Working temperature

-20℃to +70℃

Storage temperature

-40℃to +85℃



FC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 umFC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 umFC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 umFC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 umFC APC 0 - 30dB Fiber Optic Variable Attenuator Single Mode 9/125 um
