Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

China Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network supplier
Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network supplier Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network supplier Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network supplier Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network supplier

Large Image :  Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: ATTN-SCF-01-B03

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 pc / plastoc bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Attenuation: 2dB Test Wavelength: 1310nm, 1550nm
Body Material: Plastic Additional Loss: 0.1dB
Working Temperature:: -40~+85 (℃) Fiber Optic Type: Single-mode
Industry Standard: Telcordia TA-NWT-001209 Connector Type: SC/PC
Color: Dust Cap: White, Connector Body: Blue Connector Shape: Male Female Type

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH





Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃





Order information



Attenuator

Item

Adapter type



FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)

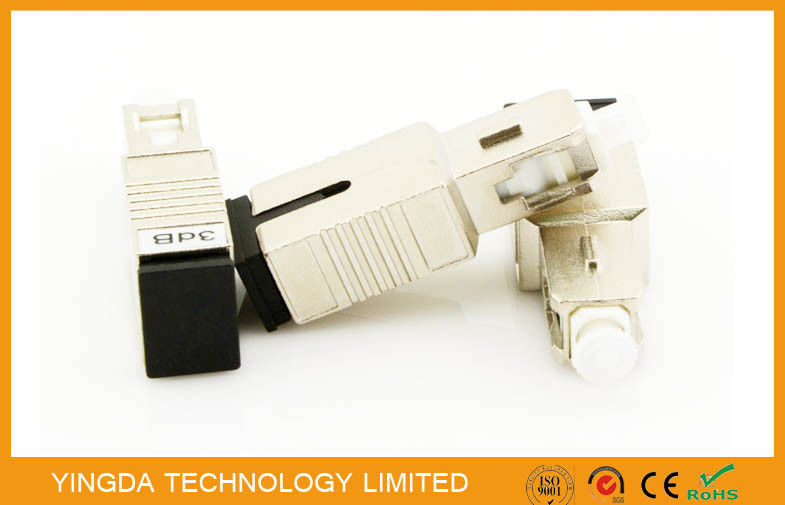

Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home NetworkFixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network



Other types female to male attenuator



Fixed SC Fiber Attenuator Male - Female Type SC / PC To The Home Network
