SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

China SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier
SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve supplier

Large Image :  SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: ATTN-MU-01-B07

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 pc / plastoc bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Attenuation: 1dB - 20dB Fix Test Wavelength: 1310nm, 1550nm
Body Material: Metal Additional Loss: 0.1dB
Working Temperature:: -40~+85 (℃) Fiber Optic Type: Single-mode, Multimode
Industry Standard: Telcordia TA-NWT-001209 Connector Type: SC/APC
Dust Cap Color: Green Connector Shape: Female To Male Attenuator

SC APC SM 1dB Attenuator, Fiber Optic Build Out Attenuator SC 1dB, SC Attenuator





Fiber Optic Female to Male fixed attenuator (F-M attenuator) is a kind of attenaution adjustable

attenuator which one end is connector type, the other end is adapter type (known as male to female) .



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation in

order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.



According to the ferrule end face it can be divided into PC and APC inclined eight degrees,

attenuation is very selective, 0 ~ 30dB optional, wavelength 1250 to 1650nm.



Due to mature production process, high test and quality control, now you can order 1dB,2dB, 3dB,

5dB,7dB, 10dB,15dB, 20dB, 25dB, etc.



Features:

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Material:

  • metal Housing
  • Ceramic Zirconium Sleeve
  • dust cap color; green for APC, black for UPC



Specification:



Return Loss:

Less than 50 dB (SPC)



Less than 55 dB (UPC)



Less than 65 dB (APC)

Attenuation Accuracy:

+/-0.5 (1-10)



 +/-1.0 (11-30)

Polarization Dependent Loss:

Less than 0.2dB

Maximum Optical Input Power:

200mW

Operating Temp. Range:

-40 ~ 80°C

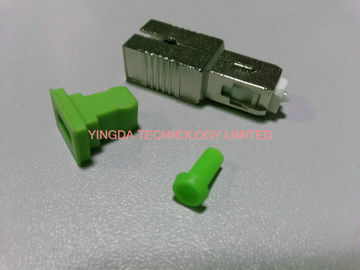

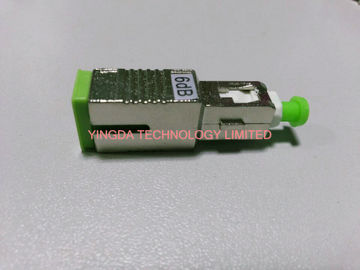

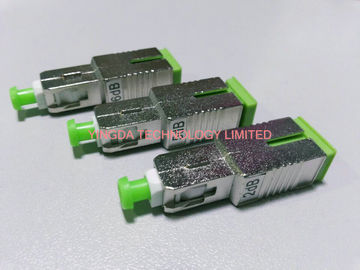

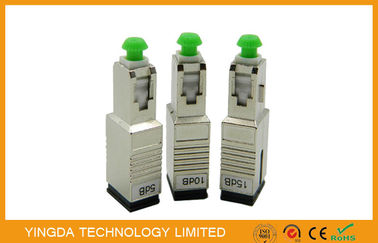

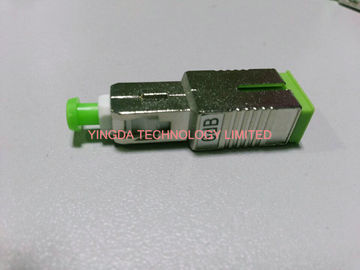

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium SleeveSC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium SleeveSC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium SleeveSC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve

SC APC SM 1dB Fiber Optic Build Out Attenuator SC With Ceramic Zirconium Sleeve
