fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White

China fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White supplier
fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White supplier fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White supplier fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White supplier fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White supplier

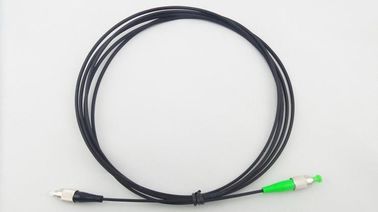

Large Image :  fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPC-THSS-A02

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 300pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Connector: FC/UPC FC/APC Fiber Count: 1core
Insertion Loss: <0.3dB Cable Diameter: 2*3.0mm
Fiber Type: Singlemode Package: Plastic Bag
Cable Color: Black Or White Strength Member: FRP Or Steel

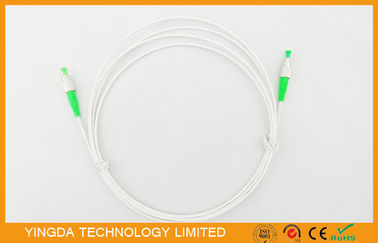

Fiber Optic Patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White





Drop cable can be made into single core, dual core, or 4cores structure, etc. The cross section

is figure-8, reinforcement is located in the center of the two circles, can be made of metal or

non-metal structure,optical fiber in the geometric center.YINGDA technology limited drop cable

use small bending radius G.657 fiber, can laying within 20mm bending radius, suitable for

pipeline or open wiring mode in buildings.

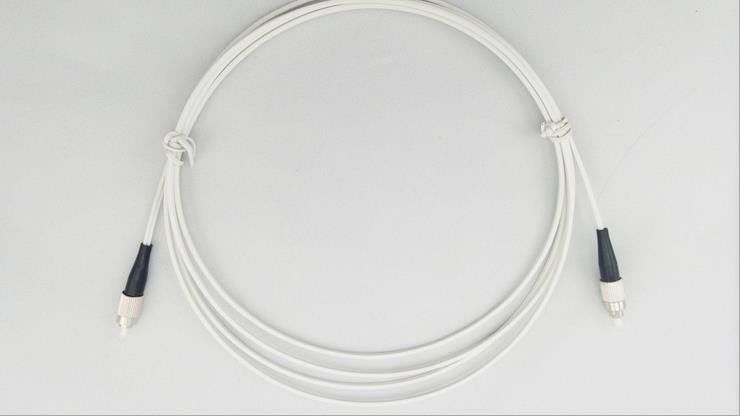

fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White



Features:

  1. Low cost
  2. High return loss
  3. Low insertion loss
  4. 100% factory test before delivery
  5. Cable material: PVC or LSZH
  6. Designed or FTH drop cable
  7. Better compliant with the installation requirement
  8. Compliance with Telcorid GR-326-CORE,ROHS



Application

  • For indoor wiring, terminal user directly use cable;
  • Building introducing (drop) cable;
  • FTTH indoor wiring;



Specification



Item





Test condition

Single mode

Multimode

Optical

 characteristic

IL

UPC

SM:1310nm/1550nm,

MM:850nm/1310nm

≤0.2dB

≤0.3dB

APC

1310/1550nm

≤0.3dB



RL

UPC

SM:1310nm/1550nm,

MM:850nm/1310nm

≥55dB

≥35dB

APC

1310/1550nm

≥65dB



Mechanical

 characteristic

Impact testing

1.8m height, 8times

<0.1dB

<0.1dB

Vibration test

10-60Hz,1mm Full amplitude

<0.1dB

<0.1dB

The number

of plug

1000 mating

<0.1dB

<0.1dB

Tensile strength

>100N

<0.1dB

<0.1dB

Environmental

characteristics

High temperature

 cyclic test

-25 ~+70°C

<0.2dB

<0.2dB

High temperature test

+80°C, 2hours

<0.2dB

<0.2dB

Low temperature test

-40°C, 2hours

<0.2dB

<0.2dB

The damp heat test

+40°C, 90-95%RH, 2hours

<0.2dB

<0.2dB

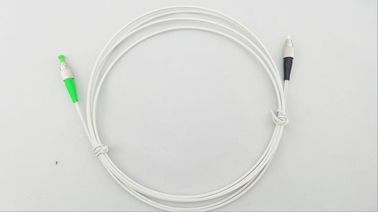

fiber optic patch Cord FC / APC - FC / UPC SM SX FTTH Drop Cable Figure 8 White
