Outdoor IP65 16 Ports 1x16 Fiber Optic Splitter Box Pole Mount / Wall Mounted Black
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | PC ABS | Waterproof | IP65 Protection Level |
---|---|---|---|
Installation | Wall Mount, Pole Mount, Aerial Mount | Cable Ports | 2 Cable Glands PG13.5 Or Uncut Ports |
Dimension | 292*218*83 Mm | Box Type | Ftth Access Terminal Box |
Plc Splitter | 1X16 Or 2pc 1x8 Mini Splitter Or LGX Cassette | Color | Black, White, Gray |
Cable Exit | 16 Pcs 2*3mm Ftth Flat Drop Cable Box | Adapter Qty | 16 Pcs SC Adapters |
High Light | 1x16 Fiber Optic Splitter Box,Wall Mounted Fiber Optic Splitter Box,Pole Mount Fiber Optic Splitter Box |
Outdoor IP65 16 Ports 1x16 Fiber Optic Splitter Box Pole Mount / Wall Mounted Black
FDB0216G is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
16 Port Optical Distribution Box Features
- Total enclosed structure with key and buckles
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Outdoor Wall mount or pole mount, IP65
16 Port Optical Distribution Box Specification
Model | FDB0216G-A | FDB0216G-B |
Dimension (A*B*C) | 292*218*83mm (D*E:80*155m) | |
Max.Capacity | 16 cores (single fiber) | |
Cable ports | 2cable gland, 16out | 1mid span, 16out |
Cable diameter | In:Φ7-12mm, out:2*φ3mm | In:φ20mm; out:2*φ3mm |
Splitter quantity | 1x16 or 2pc 1x8 steel tube | 1x16 or 2pc 1x8 LGX module |
Adapter quantity | 16SC | -- |
Color | Grey / black /white |
16 Port Optical Distribution Box Product Details

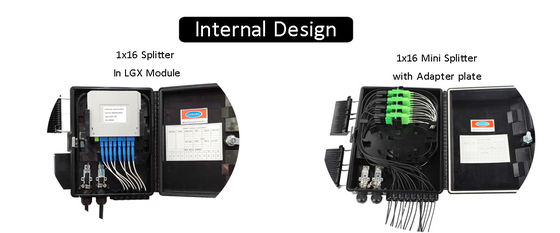

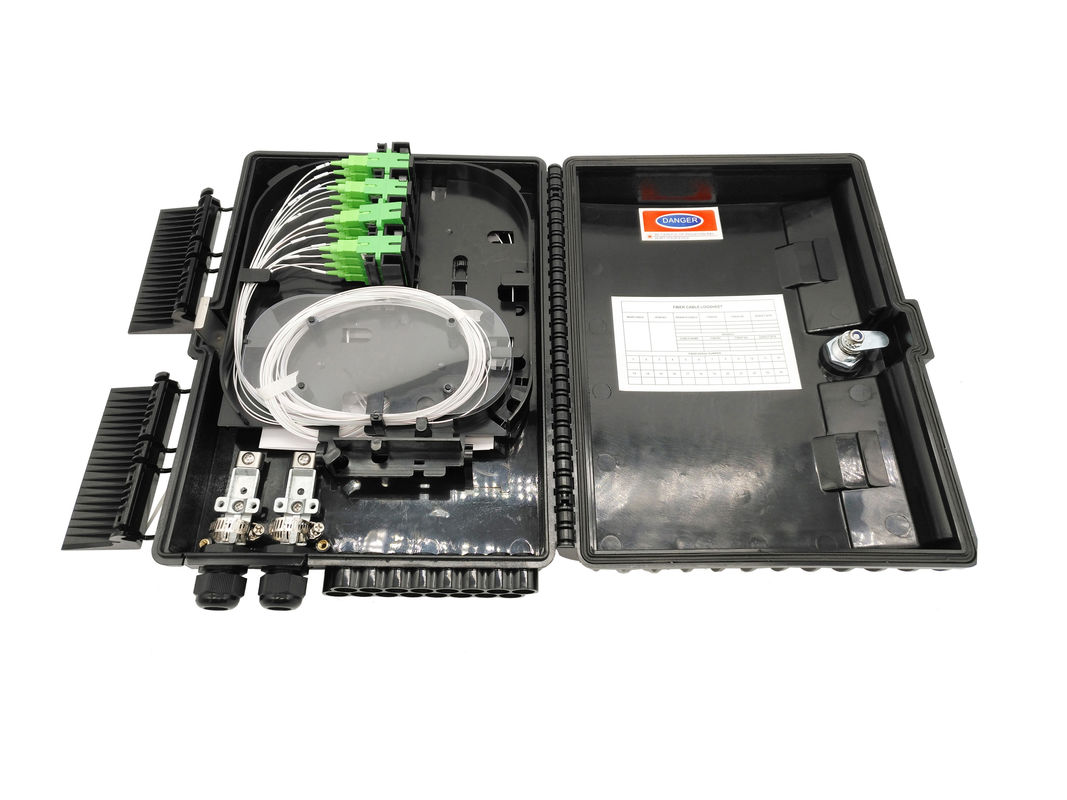

The box is totally enclosed and delivered fully load with 16pcs SC adapters and 1x16 splitter mini module, SC/APC connectors 0.75meters white color,900um, G657A1 hytrel loose tube,there is large area of winding, storage, splitting area. All the accessories is install on the middle rotate plate, when assembly we can only work on the plate, after it done, wil clip this on the box itself. Fast and convenient to operate.

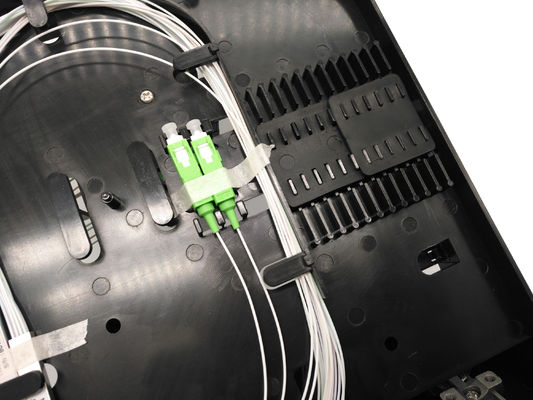

The back of the plate is for splitter input pigtails with connector fixtion, and steel tube fix, also there is 16pcs fusion splice slots on the right side, which can use 40mm, 45mm, 60mm heat shrinkable protection tubes for fiber splicing.

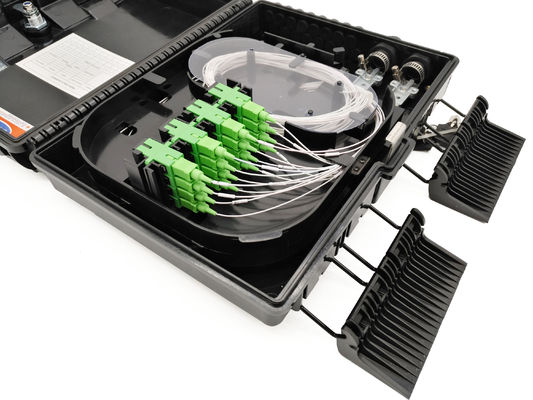

There is transparent cover for the cable winding area, in order to keep them in place and better protection. SC adapters should be with flange, so as to fix on the slots stable, where will connected with the fast connectors with drop cable.
There is also transparent cover the back winding area too, which is made of PP material and best protection for the fiber optic pigtails.
And the whole box is made of PC ABS material, high strength engineering plastic, ensure long lasting, high strength.

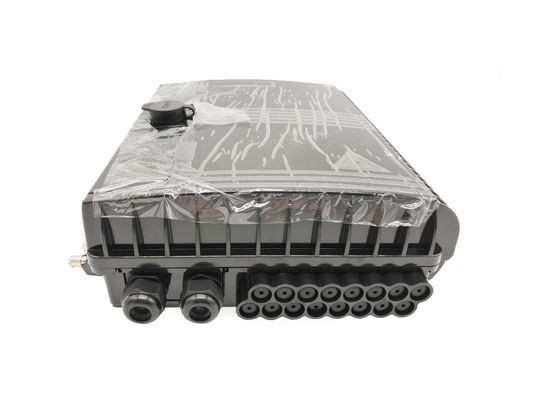

The cable entrance are 2pcs cable glands PG13.5 like above or 1 uncut ports instead which support mid span access. The cable outlet are 16pcs round ports with 3mm diameter hole in the rubber gronments, which ensure IP65 protection grade together with the waterproof ring around internal whole box side. You can use ftth round cable or drop cable as well. If the cable is too big, you can but the rubber gronments, and then clip the cable inside to pull it in and out.

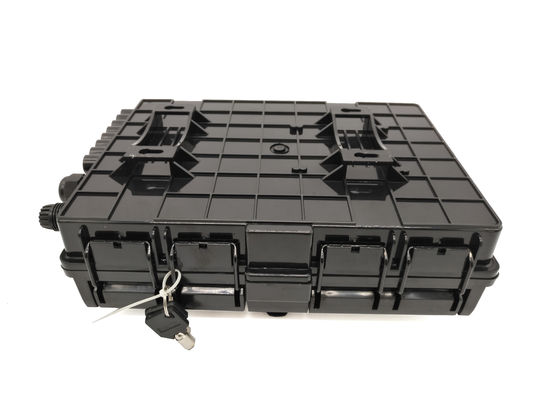

All the cable enter the box will have cable clamps to fix it in place, and there are stainless steel metal fixtures together for cable guide lines.
16 Port Optical Distribution Box Standard Accessory:
expansion screws, key, nylon tie, sleeve, buffer tube, uncut ports, user manual
16 Port Optical Distribution Box Pack information
Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
1.5Kg | cm | 10pcs | 60*34*51cm | 17.5kg |
