IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

China IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor supplier
IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor supplier IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor supplier IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor supplier IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor supplier

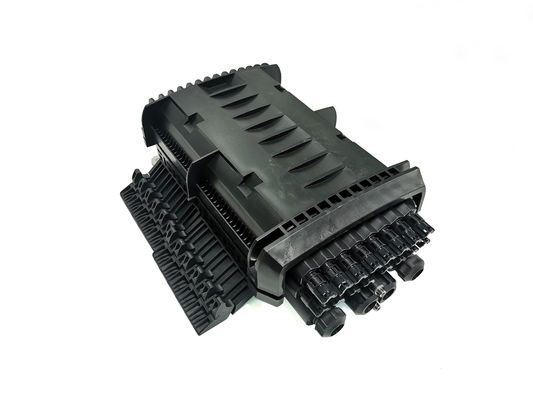

Large Image :  IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FDB0216F

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs, first order accept small order
Price: negotiable
Packaging Details: 1pc/box, 10pcs/carton box
Delivery Time: 7working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 60k per month
Contact Now
Detailed Product Description
Material: High Strength Engineering PP Capacity: 48fibers Maximum
Adapter: SC/APC PLC Splitter: 1:16 Or 2x 1:8 Mini Module
Color: Black Dimension: 385X245X130mm
Connector Insertion Loss: <0.3dB OME Or Sample: Ok
Cable Port: 2inputs, 16outputs Sealing Method: Mechanical Sealing
Features: Unique Cable Ports,muliti-functional,speical Structure And Closing Method Appliation: Wall Mount Or Pole Mount

IP68 16Ports FTTH Drop Cable Fiber Optic Splice Closure , Black PP Outdoor Splitter Joint Closure



Black IP68 FTTH Pole Mount Splice Splitter Closure, 3M BPEO For Fibre Distribution Point 16 Drops or 24 Drops







Description



FTTH drop cable type fiber optics plice & splitter closure features with ruggedness, which is tested under harsh confitions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design help user get better experience.



Features

  • Dis-mountable adapter panel
  • Support mid-span termination
  • Easy operation and installation
  • Rotatable and dis-mountable splice tray for easy splicing
  • Sealing Structure: mechanical sealing
  • Adaptor: 16 pcs of SC simplex
  • Maximum Splicing Capacity: 48 fibers (4 trays, 12 fibers/tray)
  • Applicable Splitter: 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
  • Sealing: IP68
  • Impact Test: IK10
  • Pull Force: 100N
  • Midspan Entry: yes
  • Storage (Tube/Micro Cable): yes
  • Color: Black
  • Material:PP



Application

  1. Wall mounting, pole mounting installation
  2. 2*3.0mm indoor FTTH drop cable and outdoor figure 8 FTTH drop cable



Specification



Model FDB-0216F
Sealing Structure mechanical sealing
Color black
Adaptor 24pcs of SC (16 pcs of SC for option)
Maximum Splicing Capacity 48 fibers (4 trays, 12 fibers/tray)
Applicable Splitter 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitters
No. of Cable Ports 1 oval cable inlet port, 24 drop cable outlet ports
Sealing IP68
Impact Test IK10
Pull Force 100N
Mid-span Entry yes
Storage (Tube/Micro Cable) yes
Dimension 385*245*130mm
Weight 4kg

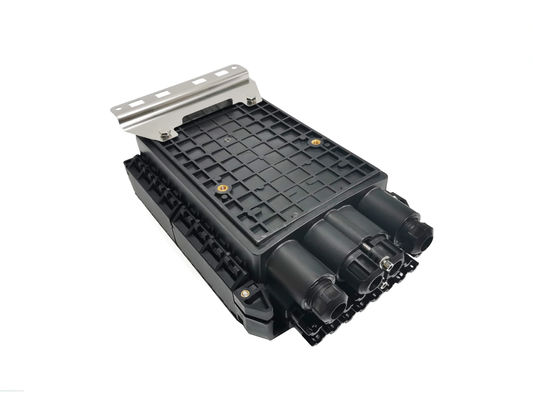

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures OutdoorIP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

Package information

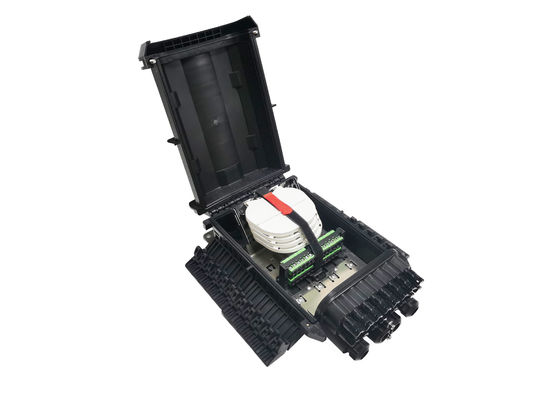

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures OutdoorIP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

  • 6pcs / carton
  • Carton size: 530*425*470mm,
  • Gross weight/carton: 24kgs.

Optional Accessories

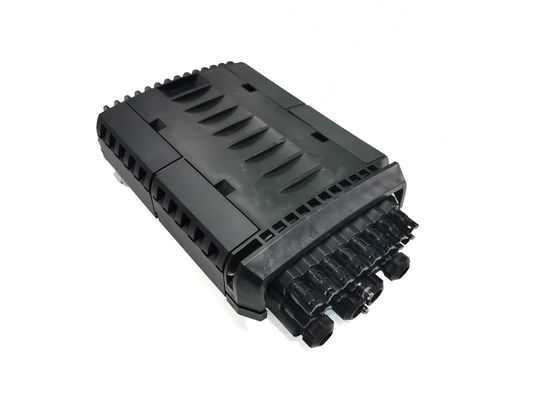

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor



More pictures

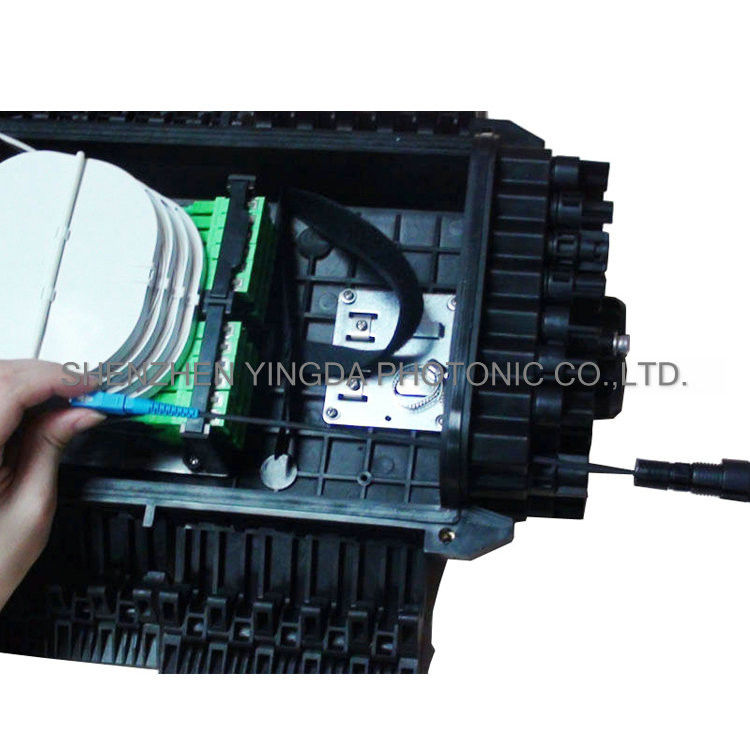

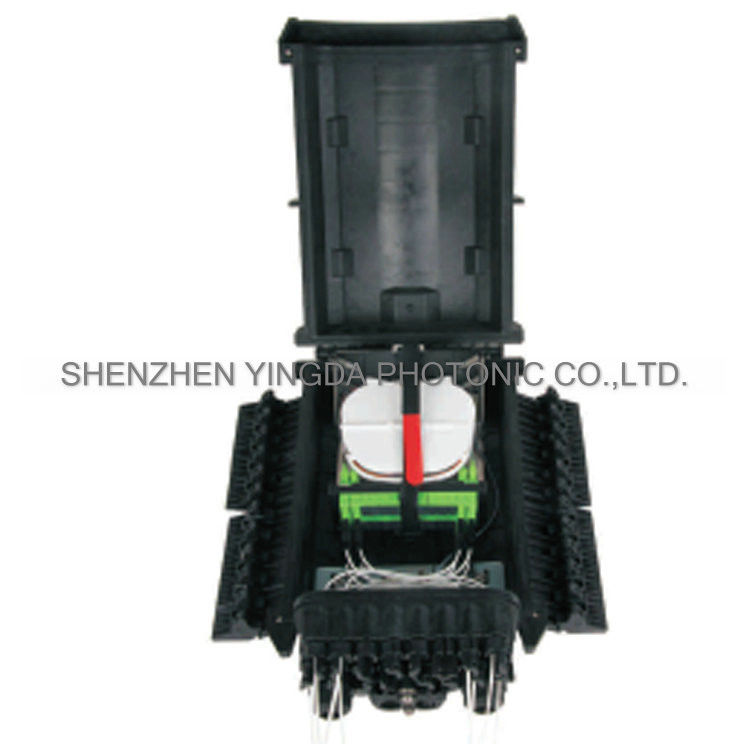

External or Internal overall view

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

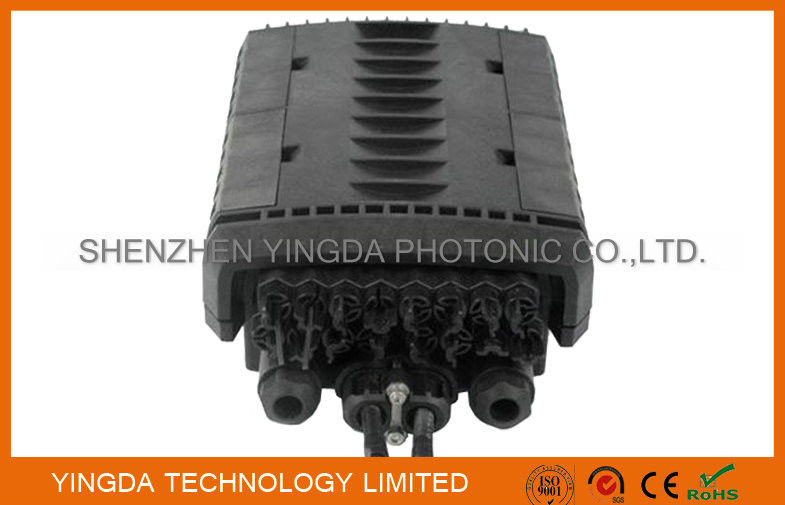

High quality,high precise, high strength for outdoor use

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

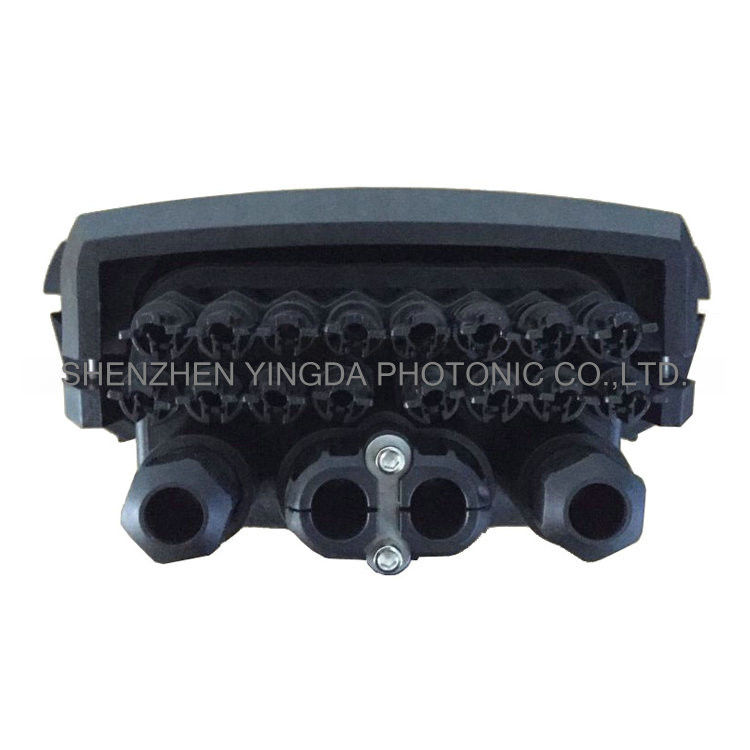

Cable ports: 2in 2out for distribution cable, 16outputs for ftth drops



IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor

All box delivery with full accessory kits and tools

IP68 16Ports Fiber Cable Joint Box , Black PP Fiber Optic Enclosures Outdoor



Welcome any inquiry or questions  to sales@ydpcable.com.
