FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

China FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted supplier
FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted supplier FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted supplier FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted supplier FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted supplier

Large Image :  FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: FDB0216G

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 1pc in a box, 10 pcs per carton box
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: ABS+PC Color: Black
Ftth Drop Cable: 16 Pcs Cable Ports: 2in 16out
Plc Splitter: 1x2,1x4,1x8,1x16 Adapter: SC, LC Duplex
Max Splicing: 16cores Application: Wall Mount Or Pole Mount
Cable Entry: Cable Gland

FTTH Fiber Termination Box IP65, Wall Mounted 16 Ports Outdoor Fiber Optic Splitter Box Black





FDB0216G 16port termina box is widely used as a termination point for the feeder cable to connect with drop cable.The fiber splicing, splitting ,distribution can be done in this box,and meanwhile it provides solid protection and management for the fttx network building.Can be used indoor or outdoor .



Features

  • Material:PC+ABS, wet-proof,water-proof,dust-proof,anti-aging, protection level IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation,storage,distribution all in one
  • Cable,pigtails,patch cords are running through own path without disturbing each other ,cassette type SC/LC/PLC adaptor installation ,easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Indoor and outdoor use
  • wall mount or pole mount
  • 2in ports, 16out ports
  • pre install pigtails and adpater, plc splitter inside of box at factory is available.
  • cable entry port can changed into express ports for uncut cable



Product Details



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall MountedFTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

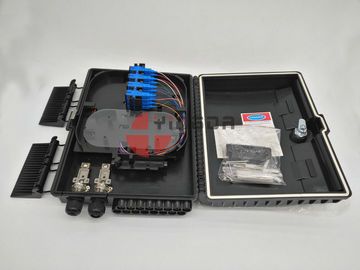

 1.  cable box front view, black, 2in 16out, wall mount at back,anti-thief waterproof lock and self-clip design. plastic material.



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall MountedFTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

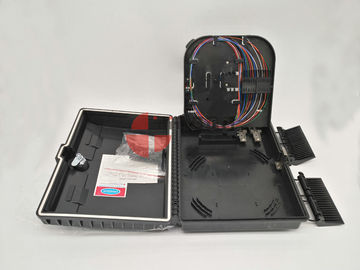

2. splice tray one side is for adapter and fiber storage, the other side is for splitter and fusion distribution



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall MountedFTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

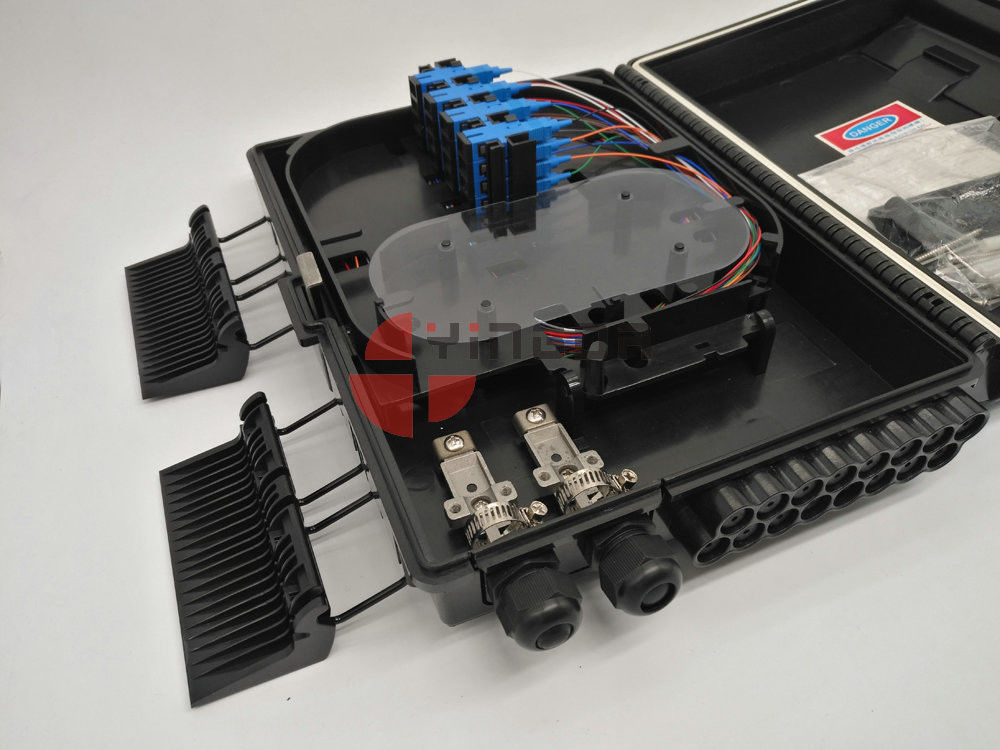

3.  cable port and all box cover is with rubber seal for better waterproof, and sutiable for outdoor use.

there is fiber marking label and laser mark on the cover for on-site marking.



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall MountedFTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

4. cable gland can replaced by express cable port(as the red marked black thing in the accessories),then the feeder cable can go through the box without cutting.



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall MountedFTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

5. anti-thief waterproof lock and self-clip design.



FTTH 16 Ports Fiber Termination Box Fiber Optic Splitter Box IP65 Wall Mounted

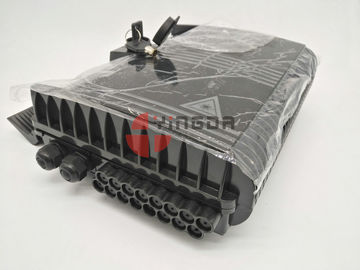

6. Packing


Specification


1.Environmental requirement
Working temperature:-40℃~+85℃ Relative humidity: ≤85%(+30℃)Atmospheric pressure: 70KPa~106 KPa


2.Main technical
Insertion loss: ≤0.2dB
UPC return loss≥50 dB
APC return loss≥60 dB
Life of insertion and extraction: >1000 times


3. Thunder-proof technical
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V


The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no punctre,no flash over;U≥3000V



Optical characteristics



Model FDB0216G
Dimension 292*218*83mm
Max capacity 16cores
Cable port 2in, 16out
Adapter qty 16pcs SC
Cable diameter In:7-10mm, out: 2*3.0mm or indoor cable
Color White, black, gray
Material ABS+PC
Installation Outdoor Pole mounting, wall mounting
Waterproof grade IP65





Order information



Model PLC SPLTITER Spitter qty Adapter Adapter qty Cable entry Body Color
FDB0216G 102=1X2 01=1pcs SA=SC/APC 01=1pcs A=cable gland W=White
104=1X4 02=2pcs SU=SC/UPC 02=2pcs B=uncut cable B=black
108=1X8 N=not include LU=LC/UPC 03=3pcs   G=gray
116=1X16   LA=LC/APC ...
N=not include   N=not include 16=16pcs
