Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box

China Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box supplier
Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box supplier Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box supplier Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box supplier Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box supplier

Large Image :  Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: FDB0216G

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1pc in a box, 10 pcs per carton box
Delivery Time: 6days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 5000pcs/month
Contact Now
Detailed Product Description
Material: ABS+PC Color: White. Black
Ftth Drop Cable: 16 Pcs Cable Ports: 2in 16out
Plc Splitter: 1x2,1x4,1x8,1x16 Adapter: SC, LC Duplex
Max Splicing: 16cores Application: Wall Mount Or Pole Mount
Customer Logo: Silk Print Cable Entry: Express Port For Uncut Cable Go Through The Box

2 In 16 Out Optical Splitter Termination Box for Uncut Fiber Optic Patch Cable Waterproof Plastic Lock Enclosure





Model: FDB016G



This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable conection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.



Features

  • Total encloused structure, be in a nice shape
  • Protects and manages cable effectively
  • Secured with anti-theft locking mechanism
  • Standard size, light weight
  • High quality PC + ABS material
  • Good properties of dust, and moisture proofing, IP65/68
  • Clamping for feeder cable and drop cable, fiber spliding, fixation, storage, distribution, etc in one unit
  • Suitable for SC and LC duplex adaptor and pigtail
  • Easy to operate
  • Wall and pole mountable
  • Suitable for both outdoor and indoor use



Application

  • Telecommunication subscriber loop
  • Fiber to the home (FTTH)
  • LAN/WAN



Box structure explanations



Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Optical characteristics



Model FDB0216G
Dimension 292*218*83mm
Max capacity 16cores
Cable port 2in, 16out
Adapter qty 16pcs SC
Cable diameter In:7-10mm, out: 2*3.0mm or indoor cable
Color White, black, gray
Material ABS+PC
Installation Outdoor Pole mounting, wall mounting
Waterproof grade IP65 / 68



Technical data



Work temperature -40°C~+85°C
Reliable humidity ≤85% (+30°C)
Atmospheric pressure 70kPa~106kPa
Insertion loss ≤0.2dB
Return loss upc ≥50dB
Return loss apc ≥60dB
Insert and pull out life ≥1000times
insulation The grounding device is insulated with teh termination box, IR≥1000m Ω/500V (direct current)
Withstand voltage Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover,U≥3000V(direct current)





Fiber Optic Splitter Distribution Box Can Silk Print customer LOGO on request.

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Fiber Optic Splitter Distribution Box Can Make Black Color, or White Color on request.

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box

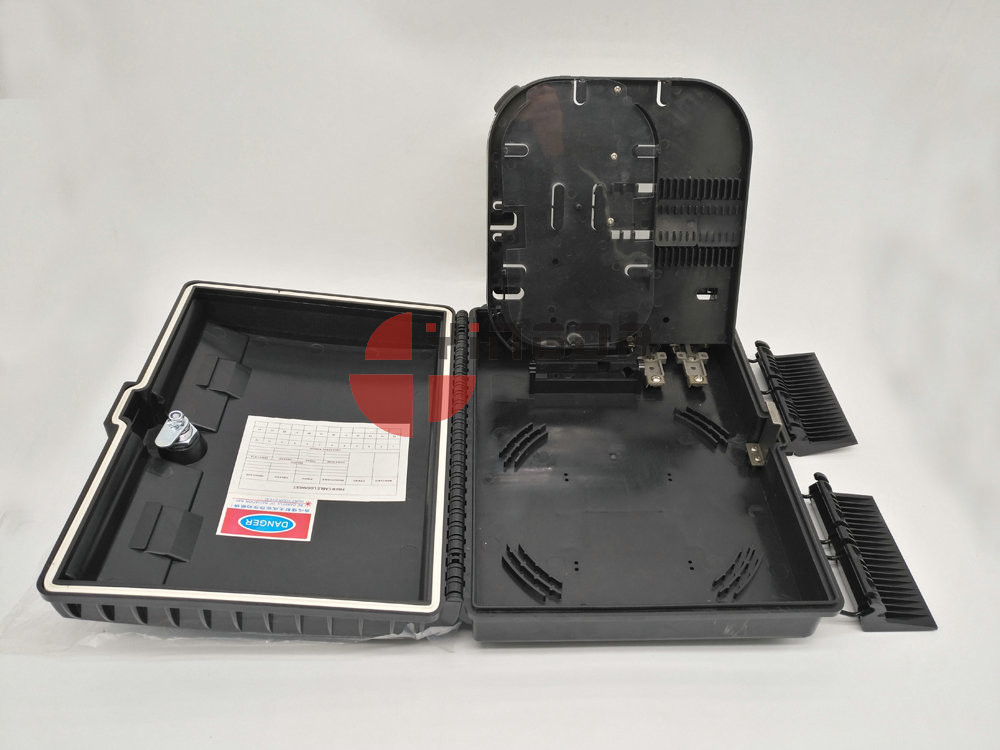

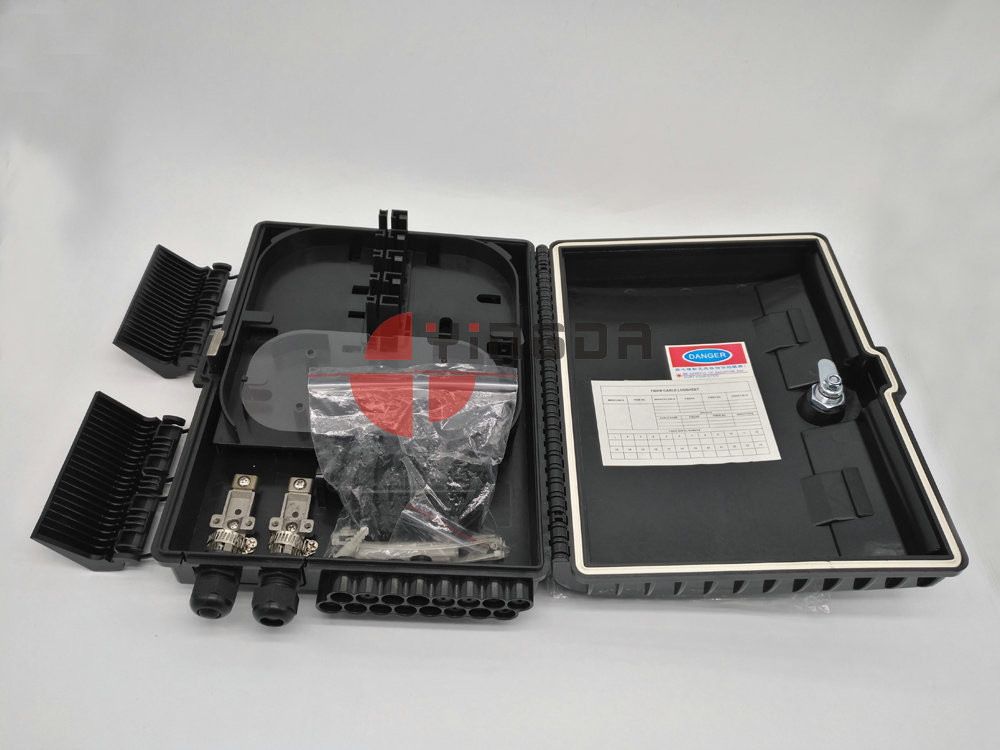

Empty Terminal Box Internal View

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box

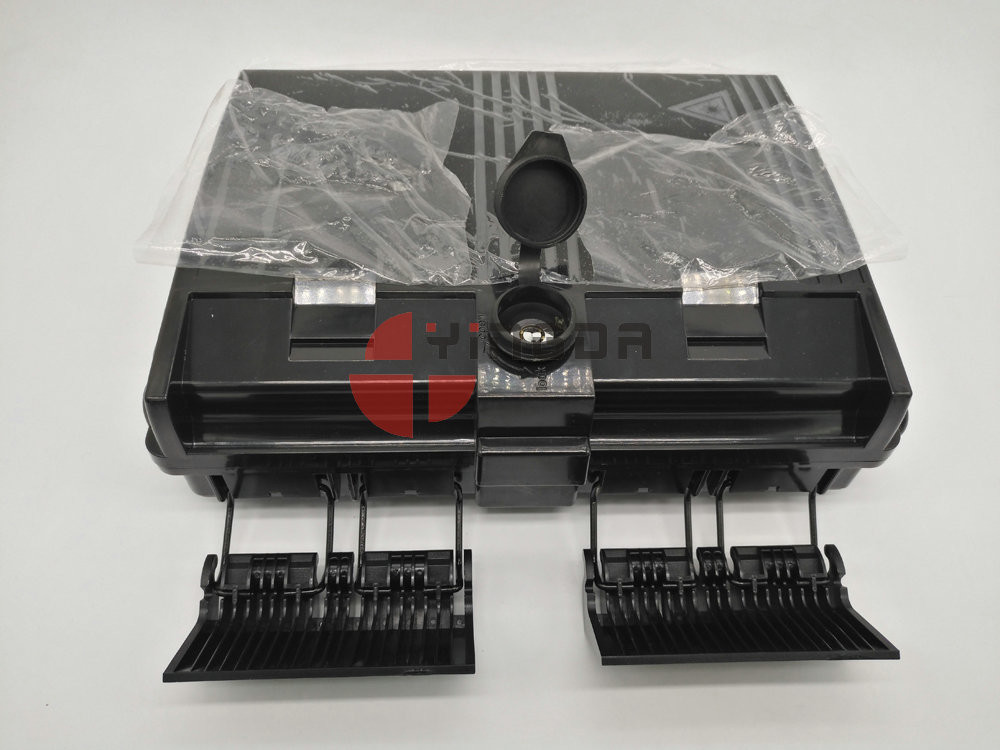

Outer of box

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Adapter panel

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Where to splice fibers

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box

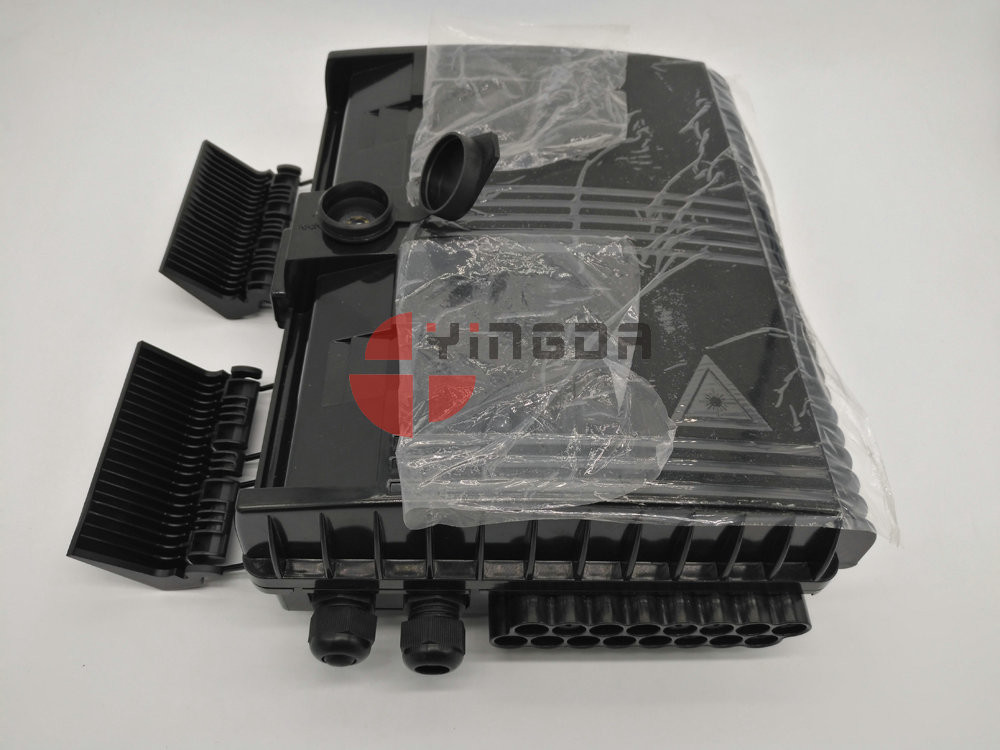

Box ports

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Key

Black Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination BoxBlack Fiber Optic Splitter Box 2 In 16 Out Optical Splitter Termination Box



Order information



Model PLC SPLTITER Spitter qty Adapter Adapter qty Cable entry Body Color
FDB0216G 102=1X2 01=1pcs SA=SC/APC 01=1pcs A=cable gland W=White
104=1X4 02=2pcs SU=SC/UPC 02=2pcs B=uncut cable B=black
108=1X8 N=not include LU=LC/UPC 03=3pcs   G=gray
116=1X16   LA=LC/APC ...
N=not include   N=not include 16=16pcs
