FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PC ABS | Waterproof | IP65 Protection Level |
|---|---|---|---|
| Installation | Wall Mount, Pole Mount, Aerial Mount | Cable Ports | 2 Cable Glands PG13.5 Or Uncut Ports |
| Dimension | 292*218*83 Mm | Box Type | Ftth Access Terminal Box |
| Plc Splitter | 2pc 1x8 Mini Splitters | Color | Black, White, Gray |
| Cable Exit | 16 Pcs 2*3mm Ftth Flat Drop Cable Box | Adapter Qty | 16 Pcs SC Adapters |
Product Description

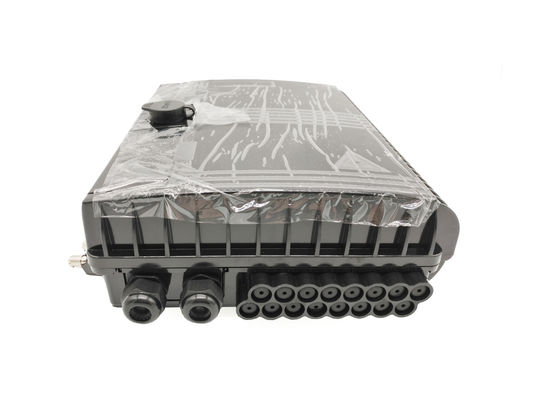

FTTH IP65 16 Ports 2pcs 1x8 Fiber Optic Splitter Box Aerial Pole Wall Mounting Black
FDB0216G is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
16 Port Optical Distribution Box Features
- Total enclosed structure with key and buckles
- High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging, Resistance to chemical and U.V attack.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution,etc all in one.

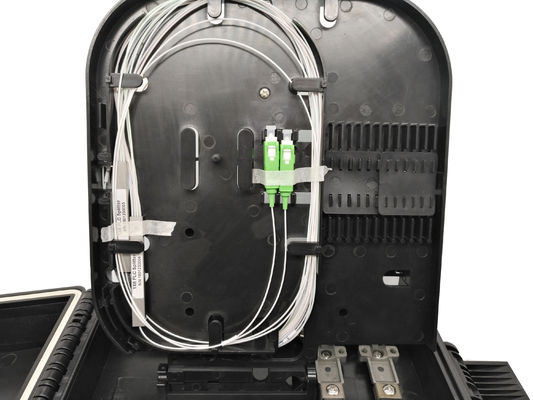

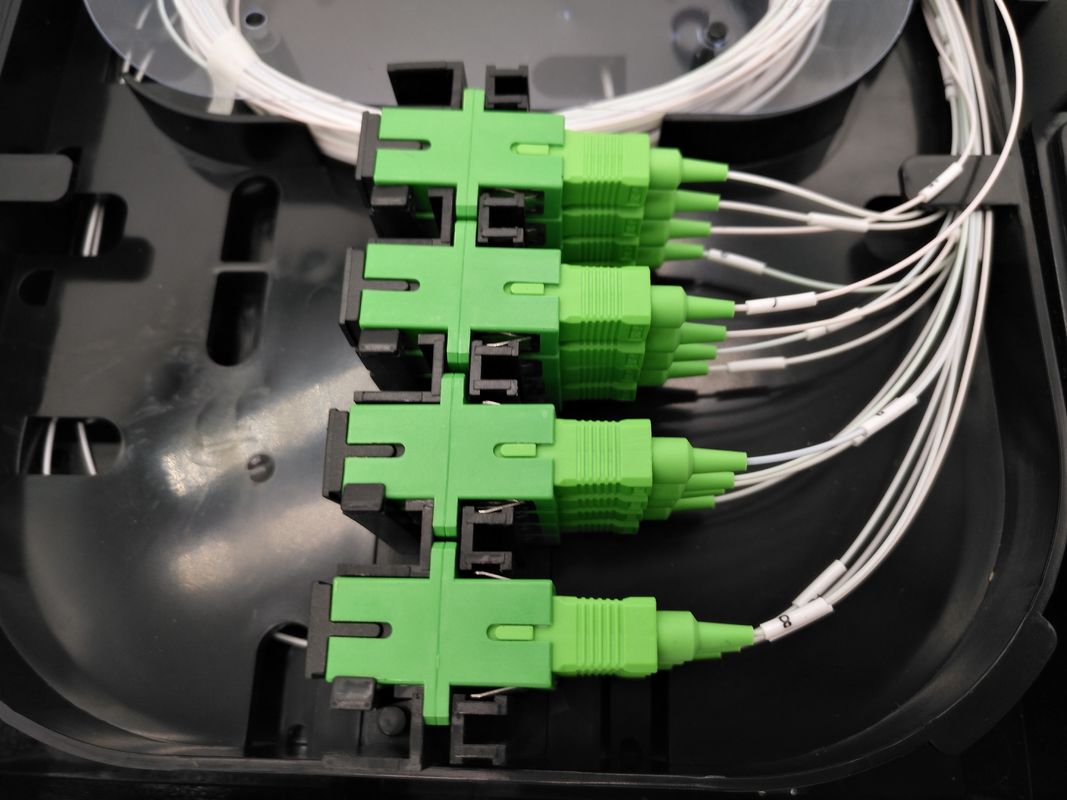

- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Outdoor Wall mount or pole mount, IP65
16 Port Optical Distribution Box Specification
| Model | FDB0216G-A | FDB0216G-B |
| Dimension (A*B*C) | 292*218*83mm (D*E:80*155m) | |
| Max.Capacity | 16 cores (single fiber) | |
| Cable ports | 2cable gland, 16out | 1mid span, 16out |
| Cable diameter | In:Φ7-12mm, out:2*φ3mm | In:φ20mm; out:2*φ3mm |
| Splitter quantity | 1x16 or 2pc 1x8 steel tube | 1x16 or 2pc 1x8 LGX module |
| Adapter quantity | 16SC | -- |
| Color | Grey / black /white | |
16 Port Optical Distribution Box Product Details

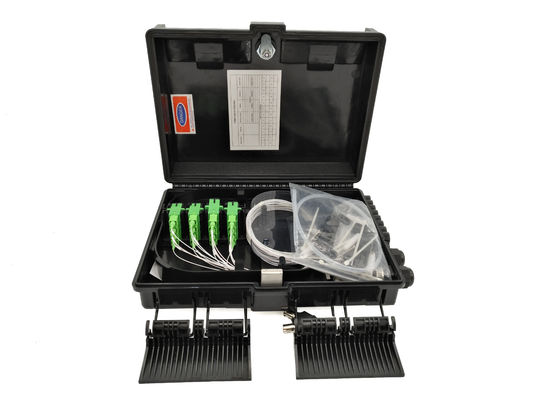

16 Port Optical Distribution Box Standard Accessory:
expansion screws, key, nylon tie, sleeve, buffer tube, uncut ports, user manual
16 Port Optical Distribution Box Pack information
| Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
| 1.5Kg | cm | 10pcs | 60*34*51cm | 17.5kg |
