Black Fiber Optic Termination Box 96 Fibers Outdoor Fiber Optic Distribution Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Distribution Box Patch Cord Box,Fiber Optic Termination Box | Color | Black |
|---|---|---|---|
| Outer Package Size | 470x180x125 (mm) | Product Weight | 2650g-2975g |
| Fiber Port | 6 | Connector | SC/FC/ST/LC |
| Capacity | 96 Fibers | ||
| High Light | Black Fiber Optic Termination Box,96 Fibers Fiber Optic Termination Box,OEM Outdoor Fiber Optic Distribution Box |
||
Product Description

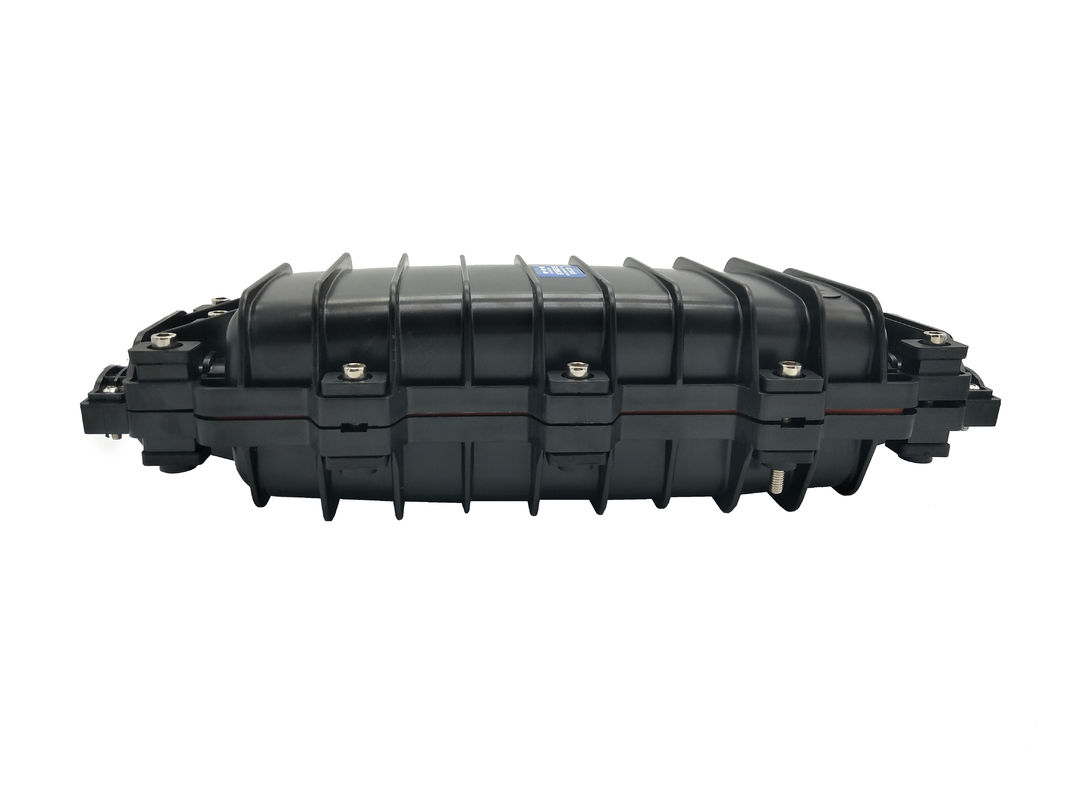

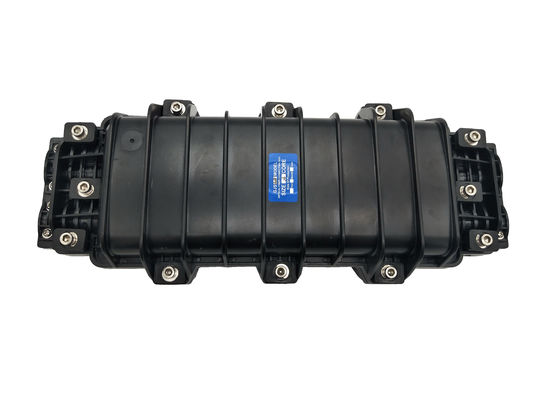

Under Ground Fiber Optic Splice Enclosure 96 Cores, Outdoor Cable Enclosure Manhole
Application: aerial, underground, wall-mounting, duct-mounting, handhole-mounting.
The ambient temperature ranges from -40℃ to +65℃.
Dimension and capacity
| Outside dimension (LxWxH) | 470x180x125 (mm) |
| Weight (excluding outside box) | 2650g-2975g |

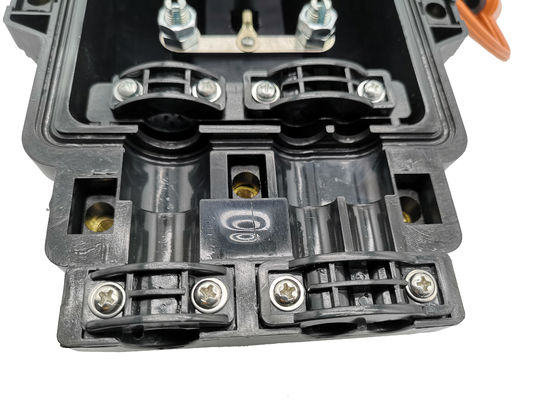

| Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
| Diameter of fiber cable | Φ8—Φ20 (mm) |
| Capacity of FOSC |
Bunchy: 12—96 (Cores) Ribbon: max. 144(Cores) |
Main components
| No. | Name of components | Quantity | Usage | Remarks | |

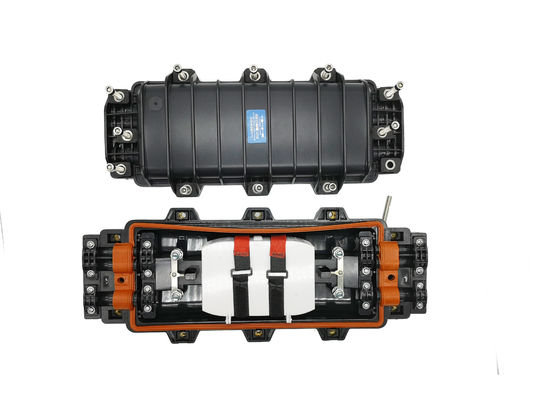

| 1 | Housing | 1 set | Protecting fiber cable splices in whole |
Internal diameter: 320x120x100(mm) |
|
| 2 |
Fiber optic splice tray (FOST) |
max. 6 pcs (bunchy) max. 4pcs (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:3 (pieces) |
|
| 3 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | ||

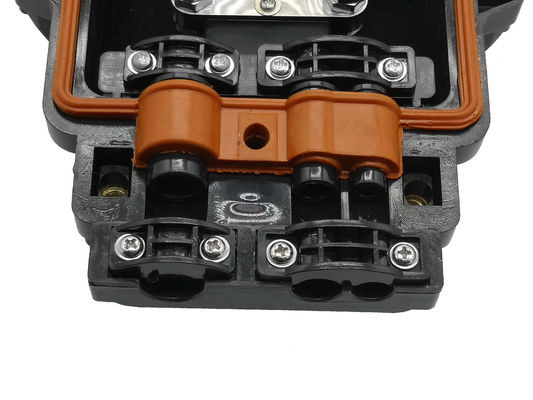

| 4 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | ||
| 5 | Port plug | 6 pieces | Sealing empty ports | ||
| 6 |
Pressure testing valve |
1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement | |

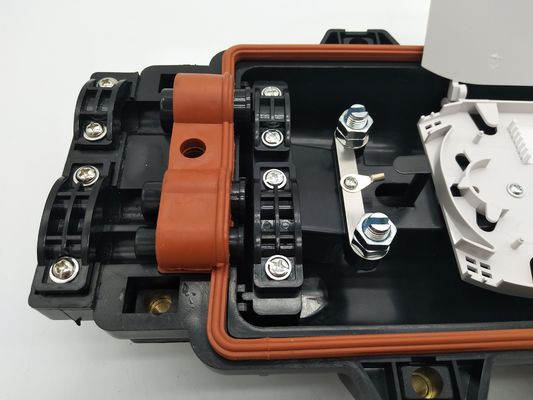

| 7 | Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement | |
Main accessories and special tools
| No. | Name of accessories | Quantity | Usage | Remarks |
| 1 | Insulation tape | 1 roll | Enlarging diameter of fiber cable for easy fixing | |
| 2 | Hanging hook | 1 set | For aerial use | |
| 3 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 4 | Abrasive cloth | 1 piece | Scratching fiber cable | |
| 5 | Labeling paper | 1 piece | Labeling fiber | |
| 6 | Special wrench | 3 pieces | Fixing bolts, tightening nut of reinforced core | |
| 7 | Measuring paper | 1 piece | To measure circle, of which its diameter is enlarged with seal tape | |
| 8 | Desiccant | 1 bag | Put into FOSC before sealing for desiccating air. | |
| 9 |
Buffer tube
|
to be decided by customers | Hitched to fibers and fixed with FOST, managing buffer | Configuration as per requirement |
| 10 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 11 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 12 | Seal tape | 1 roll | Enlarging diameter of fiber cable which fits in with seal fitting | Configuration as per specification |
