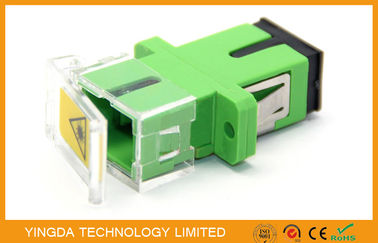

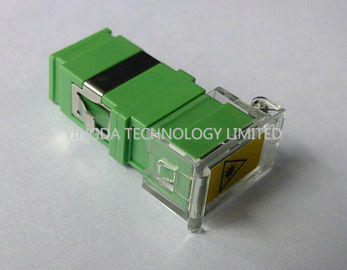

SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly

China SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier
SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly supplier

Large Image :  SC Fiber Optic Shutter Adapter With Transparent Plastic , Pathcord Assembly

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-SCA-01/S

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 50 Pcs / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Contact Now
Detailed Product Description
Fiber Count: Simplex Adapter Connector Material: Plastic
Adapter Color: Green Sleeve Material: Ceramic
Fiber Type: Singlemode Polish Mode: APC
Insetion Loss: < 0.2dB House Material: ABS
Connector: SC Shutter Material: Plastic Transparent

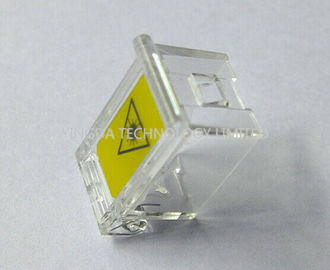

SC Fiber Optic Adapter With Shutter Transparent Plastic, SC Shutter Adapter Back Cover​





SC simplex fiber optic shutter adaptors are specially designed to suit FTTH applications. The shutters

are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered

adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the

same precision and optical performance as the normal adapter.



YINGDA shutter adapters are available in SC simplex/duplex and LC duplex/quad designs. They are

available with zirconia or phosphor bronze alignment sleeves in flange or flangeless body types.

The connector color can be blue, green, gray or aqua. It is used to align and join two or more

fiber-optic connection, to ensure alignment of two fiber-optic connections.





Features

  1. Compliant with: ANSI, Bellcore, TIA/EIA standards
  2. Dust caps protect against debris and contamination
  3. Low insertion <0.2dB
  4. high return loss >55dB
  5. Active device termination



 Specification



Characteristics

Conditions

Values

Durability

500times

<0.2dB

Temperature Cycling

-40 ~ +80℃ (42Cycles)

<0.2dB

Humidity Cycling

75℃, 95%/336hr

<0.2dB

Vibration

10~55Hz(2hr)

<0.2dB

Impact

1.5m drop, 8times

<0.2dB



Application

  1. Telecommunication
  2. CATV
  3. Data Communications
  4. Instrumentation
  5. Local Area Networks



Order information



Connetor type

SC, LC

Cable type

SM, OM1, OM2, OM3, OM4

Fiber count

Simplex, duplex, quad

Sleeve

Ceramic, Phosphor bronze

Connector color

Blue, green, beige, aqua, purple

Shutter material

Plastic, metal

Polish method

UPC, PC, APC
