FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

China FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized supplier
FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized supplier FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized supplier FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized supplier FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized supplier

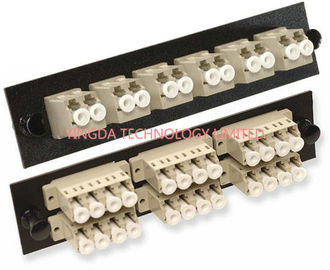

Large Image :  FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-LC-MM-Q4

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: 20 pcs / blister box
Delivery Time: 3working days
Payment Terms: T/T or western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Fiber Count: 4 Core, Quad Fibers Connector Material: Plastic
Dustcap Color: Beige / Grey Sleeve Material: Ceramic
Fiber Type: Mm / Multimode Polish Mode: PC
Sky Window: Can Be Customized

FTTH Rack Adapter Panel LC Quad Adapter, LC MM Optical Fiber Adapter





This coupler provides a solution for extending a current run of fiber optic cabling. This coupler

is constructed from highgrade plastic and has been designed and engineered for durability

and a long life.

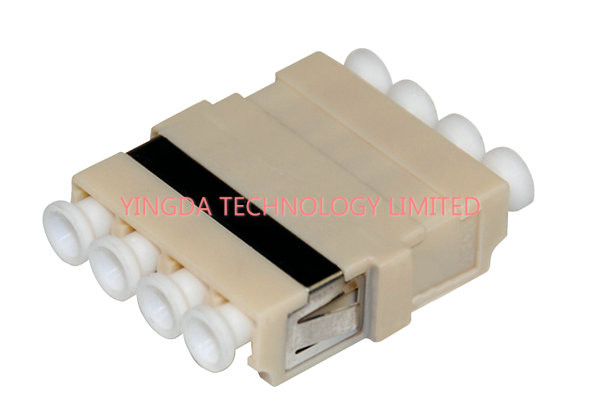

Adapter structure



FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized



Advantage:

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.



Material List:

  1. Sleeve: Ceramic or PB
  2. Housing: PC , Flammability UL94 V-0
  3. Dust cap: PVC, Flammability UL94 V-0
  4. Clip:s tainless steel





Optical characteristic



Optical Performance



Premium Grade

Standard Grade

Insertion Loss

≤0.1dB

≤0.2dB

Durability

1000 times

1000 times



Environment and Mechanical Properties



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





This adapter have two types; A and B

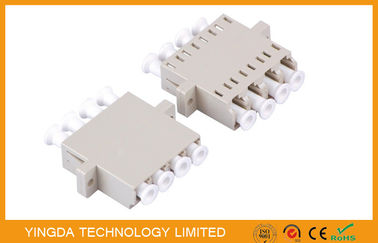

Type A: have sky window like below



FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter CustomizedFTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter CustomizedFTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized




Type B: don't have sky window, the surface is smooth, see below:

FTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter CustomizedFTTH Rack Panel LC Quad Adapter , LC MM Optical Fiber Adapter Customized
