Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

China Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier
Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D supplier

Large Image :  Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO SGS CE ROHS
Model Number: GPDB-S32D

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: NEGOTIABLE
Packaging Details: 1 pc per box, 6 pcs per carton shipping box
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Contact Now
Detailed Product Description
Capacity: 32 Fibers Cable Ports: 12 Pcs
Dimension: 350*340*120mm Material: High Strength Engineer Plastic PC
Color: White Application: FTTH FTTX ODN,PON Network
Adapter: 34 Pcs SC Application: Outdoor Wall Mount, Pole Mount
Splitter Type: LGX Splitter Cassette Max Split Ratio: 4pcs 1x8 PLC Splitter Module

LGX Insert Style 1:32 PLC Optical Splitter Fiber Optic Terminal Box



GPDB-S32D plastic wall mount splitter distribution box with insert style splitters, suitable for outdoor, corridor or weak current silo application, it can be used for local or drop cable end and sub-distribution and protect connection of cable and layout pigtails, and fiber optic terminations of optic access network, with the advantage of light, small, convenience of transportation and installation, and max apacity 32 cores.



Specification

Model GPDB-S32D
Max splitting 1 x 1:32; 2 x 1:16;4 x 1:8
Cable ports 12pcs
Dimension/mm 350*340*120
LGX module 2pcs
Net weight 3.48 kg
Carton size 430*380*460mm
Gross weight 22.3kg
Carton quantity

6pcs



Features

  • The box is made of imported flame retardant material, with aging resistant and ultra violet resistant characters;
  • Sealing with pressed strip, waterproof and dust-proof with IP65;
  • Spare pigtails and drop cable can be save in the storage part, convenience for maintenance;
  • Special lock device for outlet of drop cable, bilayer structure,bottom for splicing and upper layer for splitting and distribution. The installing plate can be turn over for convenience of installation and operation;
  • Maximum 2pcs of splice tray for satisfying kinds of connection.
  • Special screw and key for its door lock, can be installed on wall or mounted on pole;
  • Temperature working:-40~+80℃, storage temperature:-40~+80℃.
  • With 4pc standard slot position for the installation of insert-style splitter of 1:8 or 1:32;



PRODUCT CATEGORY



Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

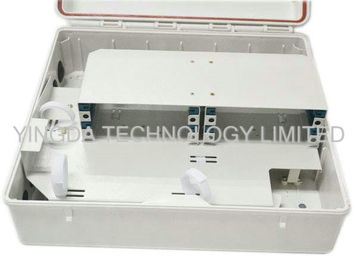

TYPE A: LGX mdoule with rotate plate.



The upper side can use 1 piece 1x16 LGX / 2 pieces 2x16 LGX /4 pieces 1x8 LGX modules.

The back of the plate is for cable management.

At the bottom of the box, it is splice tray for fusion and distribution.



Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

TYPE B: Adapter panel



If no use LGX module, can use SC adapters. max. 24SC or 48SC. Then use drop cable with connectors for termination to end user.

the box size are the same.

Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

TYPE C: no rotate plate



use ABS splitter module max. 1x64 splitter ratio, adapter panel max. 72 SC couplers, and 3 pieces 24cores fiber optic splice trays.





Product details



Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32DMini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

If with rotate plate, the splitter output is insert into the adapters directly, and fix the input on the coupler of the adapter panle of the plate, and paste the steel tube on the plates too, thre is cable clamps to make better fiber manangement.



And on the bottom of the box, there is splice tray for fusion, cable tie ,rods, and metal parts for cable entry and management. large fiber storage and management area.



Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32DMini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D



the box is with 6pcs cable entry, 3 small 3 big, you can puncture rubber, then bring the cable in or out of box easily.

it is PC+ABS high engineering material and is waterproof. can be used outdoor, anti-UV, anti dust, can meet IP65.

the box is closed with key and buckles,anti-thief, safe and long time use.



Mini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32DMini 1 / 32 PLC Fiber Optic Splitter Box For FTTX ODN PON Network GPDB-S32D

er, there is a square blank to print customer logo if need, Strengthened lines make the whole box stronger.

all the box is white color, with accessory bag before delivery.

we can install plc splitter, adapter, pigtails at factory for customer to save your on-site constrcution time and labour cost.





Accessory: Adapter, Pigtail, Plc splitter, Connector, Sleeve, Nylon tie, Wall mount screws, Cable fix circle, etc.





We have one more fiber optic terminal distribbution box can do 48cores:OTB-32B too, wall mount or pole mount both ok, it is popular in Europe, Middle East, South Asia, etc.  swelcome any inquirie for more details:
