Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box

  • Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box
  • Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box
  • Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box
  • Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FTB104C 106C
Minimum Order Quantity 100PCS
Price NEGOTIABLE
Packaging Details 1 pc / box, 60 pcs / carton shipping box
Delivery Time 5-8 working days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 100000 pcs / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Capacity 4 / 6 Cores Single Fiber Bunchy Cable Inport 1PCS
Dimension 210*140*40mm Cable Diameter 7-10mm
Material ABS Anti-UV, Flame Retartant Color White
Application Fiber To The Home FTTH Or Indoor Outdoor Use Adapter 4 /6 Pcs SC Simplex Adapter, LC Duplex Adapter
Cable Output 7-10mm Or 2.0*3.0mm FTTH Drop Cable
High Light

fiber optic terminal box

,

fiber optic distribution box
Leave a Message
Product Description

Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box With SC Pigtails Adapters





MODEL: FTB104C / FTB106C



Fiber To The Home, FTTH is a transmission method for optical fiber communication. This box directly connect the fiber to the subscriber's home (user desired place). The optical fiber communication mode and strategy is different with FTTN, FTTC, HFC (Hybrid Fiber Coaxial) which are all depend on metal wires including twisted pair and coaxial cable.FTTH is used as the last one kilometer information transmission.



Features

  • Wall-mounted and rack mounted application
  • Self-clip design,easy to operate
  • Suitable for SC, FC adapters max 4-6 cores
  • Max capacity 4fibers
  • Environmental Temperature:－25℃～40℃;
  • Fiber to the Home (FTTH) home and outdoor use
  • Drop cable 2*3.0mm figure-8 FRP LSZH and fast field installation connector install
  • Rubber sealing circle for waterproof
  • Can be use for un-cut cable go through the box



Specifications



Model

Dimension

(H*W*D)

 Cable diameter Cable ports Max capacity Material Color
FTB104C/106C 210*140*40 mm

7-10mm or

2.0*3.0mm drop cable

 1in, 4 / 6out

4 / 6 core



 PC+ABS White





More pictures

Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 0Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 1

                            box top view                                                       box back view



  • Terminal box is made of high strength export engineering plastic ABS+PC, white color.
  • wall mount application, indoor or outdoor use
  • clip-self design, with a special plastic key to open, fast and easy to use.
  • waterproof  with red circle rubber seal all round the box inside.







Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 2Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 3

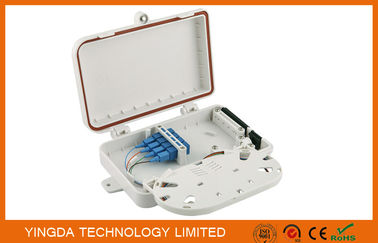

  • inside of the box, there is a adpater panel, which can hold 4pcs SC simplex adapters, 4pcs pigtails.
  • 1x fiber tray have enough space for fiber optical cable routing and storage.
  • there is a place to fix the steel tube which can use PLC splitter.

Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 4Ftth / Fttx Mini Plastic Wall Mount 4 PortS Drop Cable Fiber Optic Termination Box 5

  • cable inports: 1ports for indoor or outdoor cable 7-10mm diameter.
  • cable outports: 4ports for FTTH drop cable 2x3.1mm or indoor or outdoor cable.
  • all cable ports with rubber seal, it can prevent water in.
  • IP65 protection class
  • fire retardant material if needed.



Package information



Model Carton size Carton qty G.W.
FTB104C/106C 51.5*47.5*46.5 cm 60 pcs 22.5 kgs
