FTTH Outdoor IP65 Pole Mount Fiber Optic Splitter Box For Drop Cable 2x3mm Black SC
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHigh Light | FTTx Fiber Optic Termination Box,Enclosed Outdoor Fiber Termination Box,IP65 Outdoor Fiber Termination Box |
---|
FTTH Outdoor IP65 Pole Mount Fiber Optic Splitter Box For Drop Cable 2x3mm Black SC
The equipment is used as a termination point for the feeder cable to connect with drop cable in
FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
- Total enclosed structure with key and buckles
- High strength engineer plastic, wet-proof, water-proof, dust-proof,
- anti-aging, Resistance to chemical and U.V attack.
- Clamping for feeder cable and drop cable, fiber splicing, fixation,
- storage, distribution,etc all in one.
- Cable, pigtails, patch cords are running through own path without
- disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed
- by expression port, easy for maintenance and installation.
- Outdoor Wall mount or pole mount, IP65
Specification
MODEL | FDB0216G-LGX | FDB0216G-AD |
Splitter type | LGX module | Mini module |
Dimension | 292*218*83 mm | |
Fusion capacity | 16 cores single fiber | |
Cable port | 1mid span(13.5mm)/2cable gland(12mm), 16outputs for drop cable (2*3mm drop cable or soft cable) | |
Material | PC+ABS | |
Color | Grey, black, white (optional) | |
IP grade | IP65 | |
Splitter qty | 2pcs 1x8 or 1pc 1x16 | |
Adapter qty | 16 SC | |
Installation | Pole mount, wall mount |

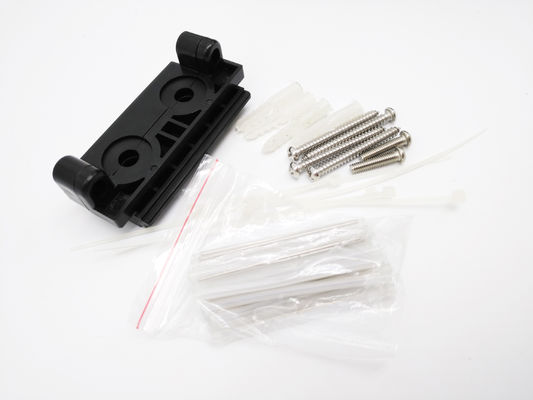

Standard accessory:
Buffer tube, wall mount kits, nylon tie, cable tie, heat shrink sleeve, key
Product Details

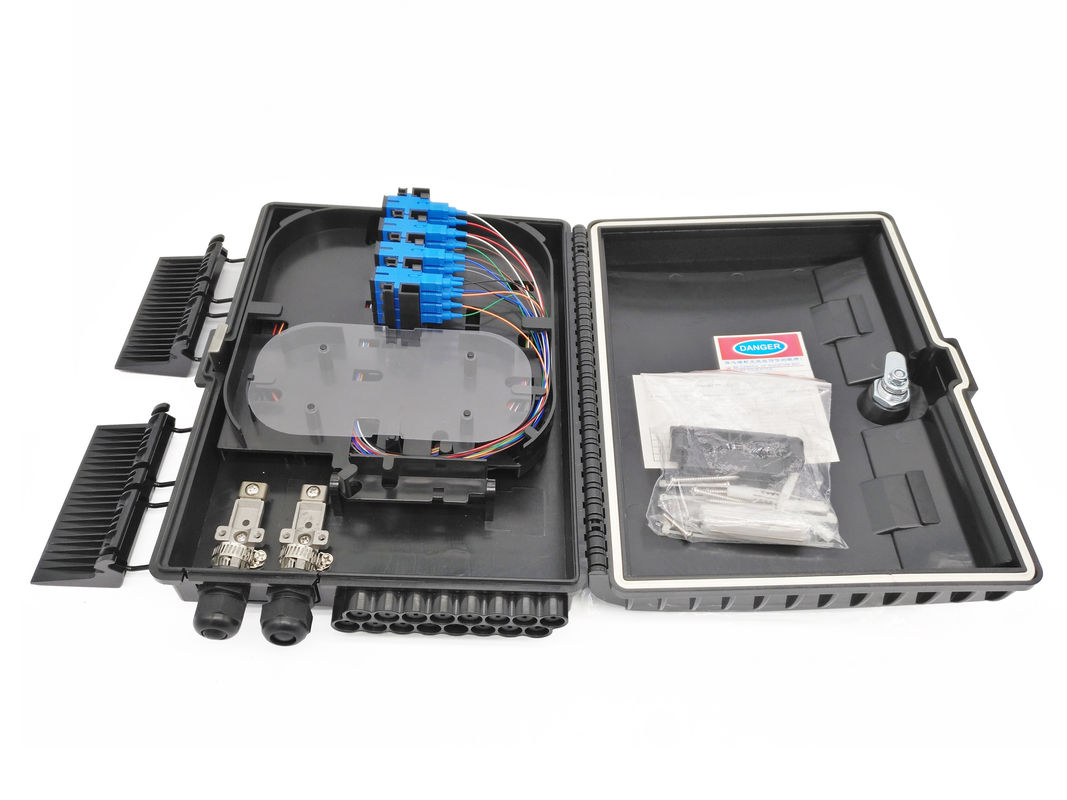

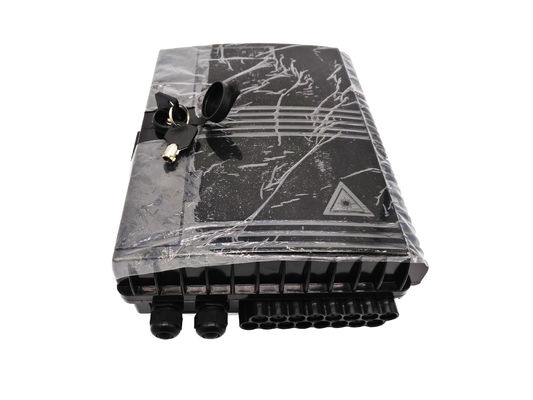

ABS PC engineering plastic material, Buckle + key lock design, easy to open and close, good choice for outdoor harsh environment.
Adapter plate can hold max. 16pcs SC simplex adatpers with flange, no need screws to fix, there are clips for each adapters, stable and not loose.

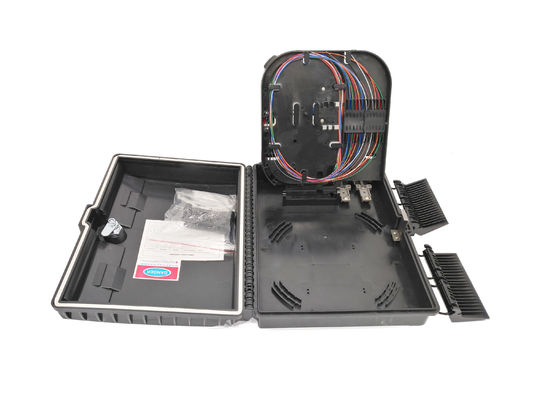

Fusion splice area on the rorate plate back, max. 24cores, and 2slots for splitter tube fixtion, large and reasonable fiber winding area to ensure the bend radius.

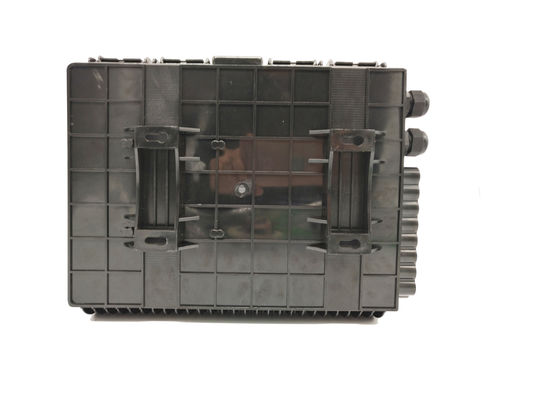

Cable inlet and outlets are all sealed with rubbers, and there are cable fixtures for feeder cable go in the box and after stripped. All the metal parts in the box are stainless steel and mold embedded in the bottom of the box, not loose, long life span.
There are working table for fiber mark and future use, also laser mark for fiber optic equipment.
