Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter

China Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier
Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter supplier

Large Image :  Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter

Product Details:

Place of Origin: CHINA
Brand Name: Yingda
Certification: ISO
Model Number: FDB0296D

Payment & Shipping Terms:

Minimum Order Quantity: 100pc
Price: negotiable
Packaging Details: 1pc/box, 5pcs/carton box
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Material: Pc Abs Color: Gray
Max Fusion: 96 Cores Product Name: Fiber Optic Distribution Box, 96cors Fiber Box
Size: 490*400*150mm Adapter: SC
Splitter: Mini Type Max. 1pc 1x64 Or 2x64 Cable Port: 6pcs Round, 1 Mid Span

Outdoor 96 Cores Plastic Wall Mounted Optical Cable Distribution Box for 1X64 Splitter fiber access terminal





96cores fiber termination box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.



Features

  • 6 cable ports, 1mid span
  • Industrial standard user interface,max. can hold 96 pcs SC
  • Made of high impact engineering plastic
  • Can accommodate 1x4,1x8 & 1x16,1x32,1X64 PLC splitter LGX module or adapter panel, 2xN series is available
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 96 FTTH drop cables
  • outdoor use, IP65



Specification



Model FDB0296D
Dimension(W*D*H)mm 490*400*150mm
Max. Capacity 96 fibers
Cable ports 6ports
Cable diameter(mm) 6:Ø20;2:Ø16
Max. adapter 96 SC
Max. Splitter PLC 1:64(1pc); PLC 1:32(2pc) steel tube or LGX module
Color gray





More products

Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 SplitterOutdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter

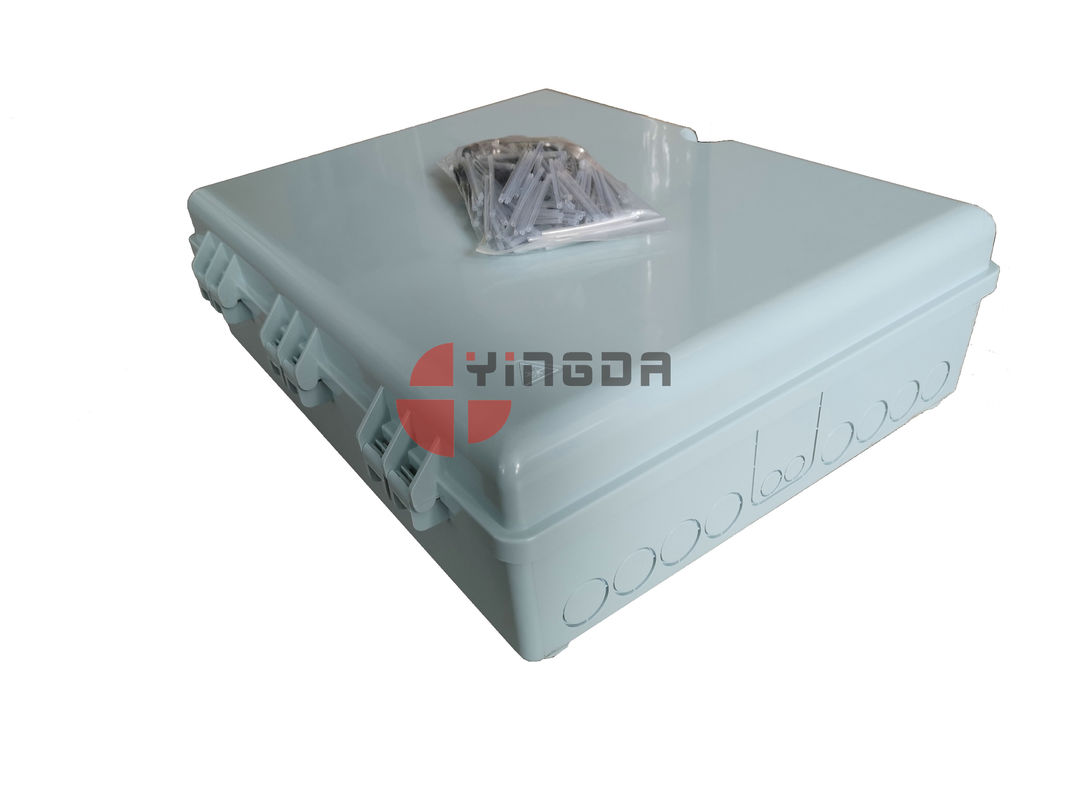

product overview: 1box with 1 accessory bag, inneral is for SC adapters and mini splitter available.





Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 SplitterOutdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter

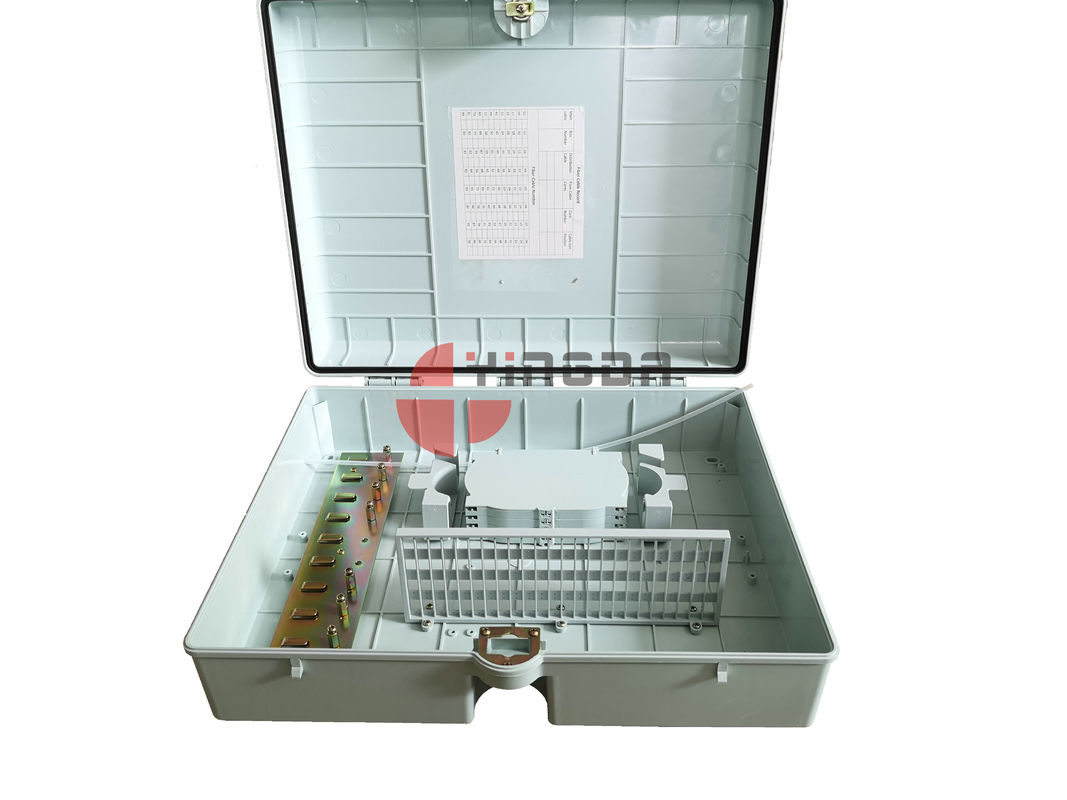

metal key with buckles for open and close, with 1 cable wring label on the cover inside.



Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 SplitterOutdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter

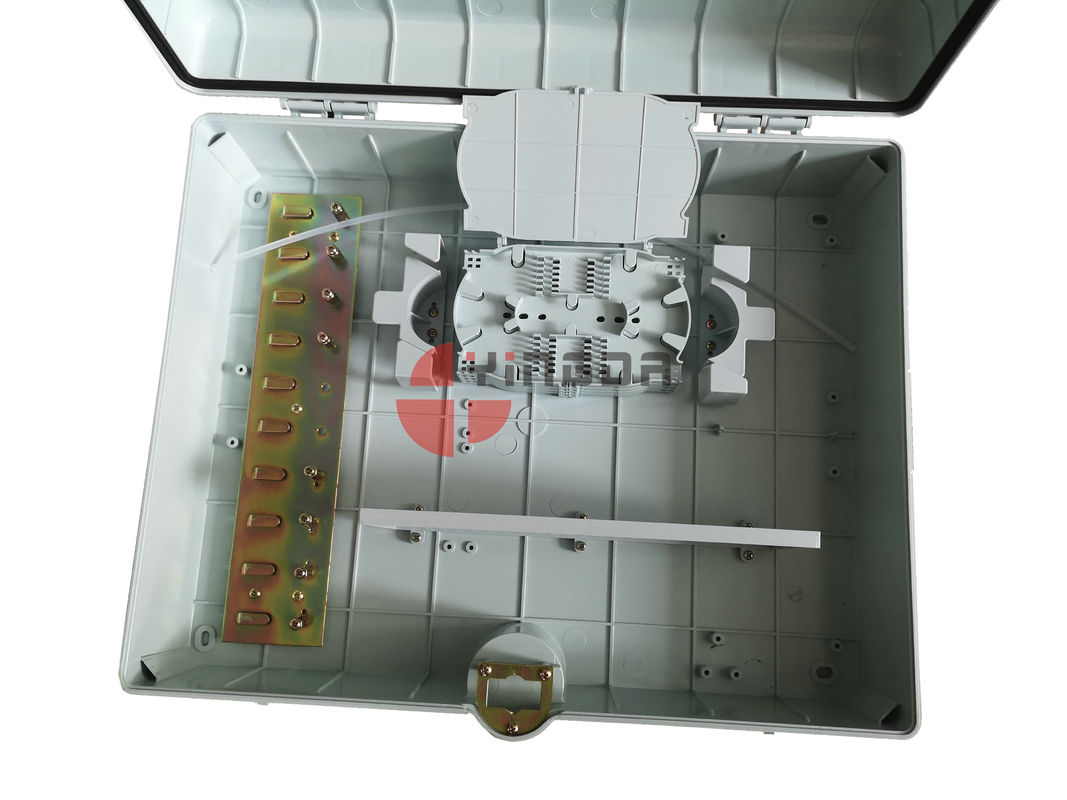

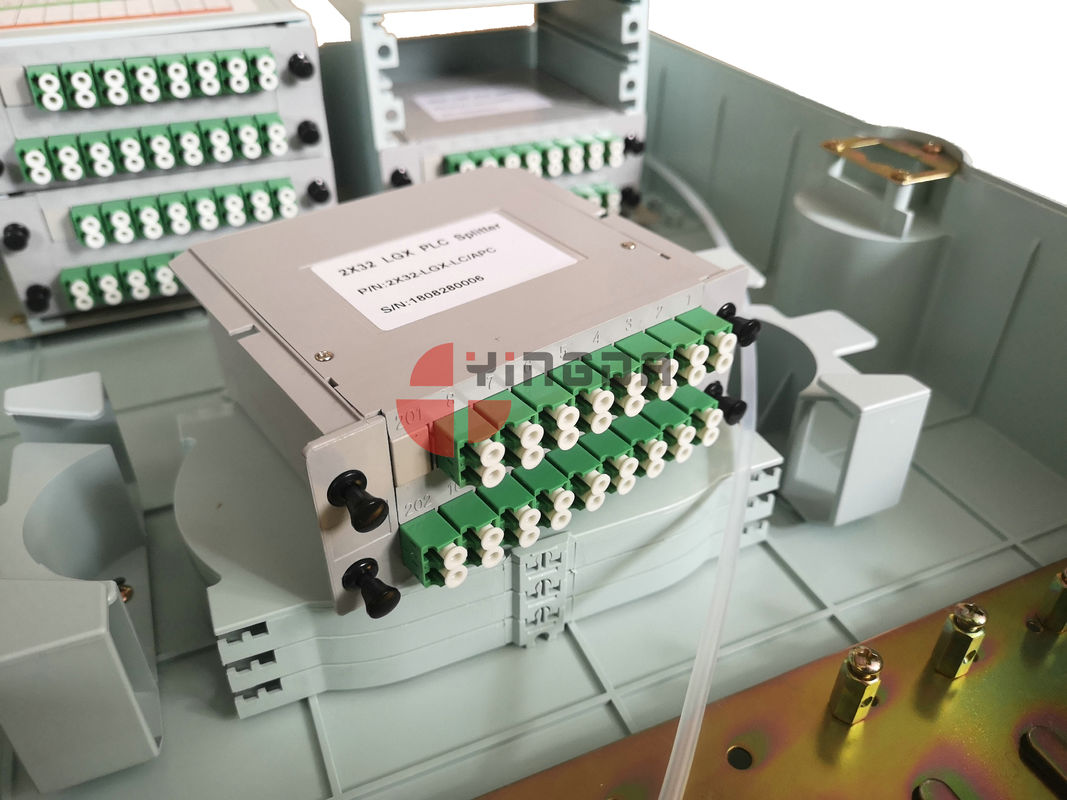

internal can use max. 96 cores SC fiber optic adapters, and with 4 pcs 24fiber trays,max. fusion 96cores bunchy fiber



Outdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 SplitterOutdoor 96 Cores Plastic Fiber Optic Termination Box SC Adapter For 1X64 Splitter



splice tray is fixed with screw on the bottom, there is metal cable ties for cable entry and exit.





Standard accessories



sleeve, cable exit rubber seal, cable ties, expansion screws, etc
