Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO

Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO

  • High Light

    fiber optic closure

    ,

    splitter distribution box

  • Material
    High Strength Engineering PC+ABS
  • Capacity
    16 Pieces Optical Fiber
  • Adapter
    SC/UPC
  • FBT Splitter
    1:16 Mini Module Plc Splitter
  • Color
    White
  • Dimension
    306X240X106mm
  • Connector Insertion Loss
    <0.3dB
  • OME Or Sample
    Ok
  • Cable Port
    Cable Gland Waterproof
  • Cable Diameter
    3-16mm
  • Features
    With Metal Bucket
  • Appliation
    Wall Mountedvillas For Better Protection And Apperance
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    CTO-16D
  • Minimum Order Quantity
    200pcs, first order accept small order
  • Price
    negotiable
  • Packaging Details
    1pc/box, 20pcs/carton box
  • Delivery Time
    5-8working days
  • Payment Terms
    T/T, Western Union, MoneyGram, L/C
  • Supply Ability
    50k per month

Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO

Epon 16ports Fiber Optic Splitter Box For 1X16 PLC Splitter, IP68 Outdoor Optical Fiber Junction Box Enclosure CTO BOX





The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Specification

Model CTO-16D
Dimension (A*B*C) /mm 319.3*214*133
Installation size (D*E/F*G)/mm 52*166*166
Max.Capacity 48 cores (single fiber)
Cable entry 2big round: ᴓ8~14mm, branch cable:ᴓ16mm
Cable exit 16pcs Mini SC adapters
Splitter quantity 1x2, 1x4, 1X8 mini splitter
Waterproof grade IP65
Material PC+ABS
Color Grey



Features

  • Total enclosed structure with key and buckles
  • High strength engineer plastic, wet-proof, water-proof, dust-proof, anti-aging
  • Outdoor wall mount, pole mount or aerial mount, protection level up to IP65
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
  • Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

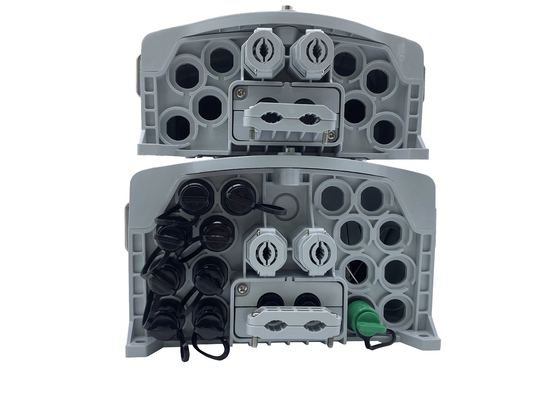

Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO 0Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO 1Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO 2



Splicing tray

Item Splice tray A Splice tray B
Dimension (HXWXD) /mm 134*104*8 134*104*4
Net weight/kg 0.021 0.015
Color Customized Customized
Material PC+ABS PC+ABS
Capacity 12cores (single fiber), 1slot for 1x8 plc tube 8core (single fiber)

Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO 3



Standard accessory

usual manual, expansion screws, buffer tube, pole/wall/aerial mountsleeve, key, nylon tie



Epon 16 Ports Fiber Optic Splitter Box For 1X16 PLC Splitter, Optical Fiber Junction Box CTO 4
