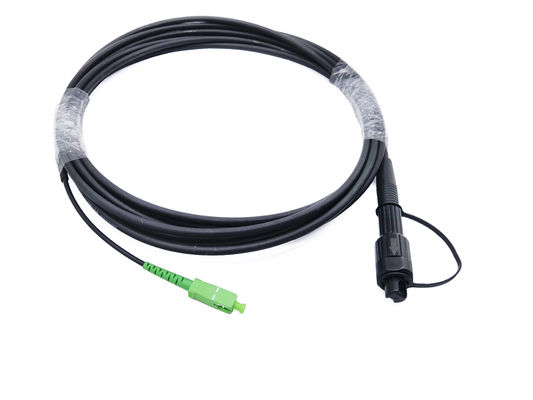

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black

Products - Fiber Optic Patch Cord
  • High Light

    FTTA Fiber Optic Cable

    ,

    SC APC Fiber Optic Cable

    ,

    G657A2 LSZH Fiber Optic Cable

  • Application
    FTTA Outdoor Wiring
  • Connector
    SC / APC
  • Fiber Count
    1 Core
  • Fiber Type
    G.657A2
  • Cable Sheath
    LSZH/TPU/PE
  • Cable Length
    5 Mts
  • Cable Color
    Black
  • Insertion Loss
    < 0.3dB
  • Cable Strength Member
    Aramid Yarn
  • Cable Diameter
    5.0mm Double Sheath Cable
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    YDPC-MSA-SA-50LSB-A201-005
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable
  • Packaging Details
    1 piece / bag

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black

  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
  • Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black
Get Price Contact Now

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black


Mini SC waterproof reinforced connector has SC houseless core, spiral bayonet and multilayer rubber cushion. The special plastic shell is resistant to high ad low temperature, acid and alkali corrosion resistance, anti-UV. Its sealing waterproof performance can up to be IP67. The unique screw mount design is compatible with the fiber optic waterproof ports of Huawei equipment ports. It is suitable for 3.0-5.0mm single-core round cable or FTTH fiber access cable.

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 0
Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 1
Features

  • IP67 waterproof indoor or outdoor use
  • Guide and spiral clamp mechanism, can be blinded with one hand
  • Simple and quick, connect and install,long life time
  • Seal design: It is waterproof, dust-proof, anti-corrosion, anti-UV, etc
  • High quality plastic material, compact size, easy to operate
  • Through the wall seal design, with unique black dust cap
  • No need fusion, then can connect directly to achieve interconnection

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 2Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 3
Connector parameter

Fiber type Unit SM MM
UPC APC UPC
OD mm 2.0*5.0
Insertion loss dB ≤0.20 ≤0.30 ≤0.20 ≤0.40
Return loss dB ≥45 ≥50 ≥40 ≥50
Wavelength nm 1310/1550nm 850/1300nm
Mating times times

≥1000


Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 4

Application

  • FTTH wiring project
  • Fiber optic communication in harsh outdoor environments
  • Outdoor communication equipment connection
  • Compatible with Huawei waterproof fiber equipment SC port
  • Remote wireless base station

Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 5
FTTA 5mm Cable structure
This specifications covers the optical fiber cable for laying in outdoor installation. The optical fiber meets the requirements of ETISALAT.
Pre Connectorized SC APC FTTA Fiber Optic Cable 5.0mm G657A2 LSZH 5Mts Black 6
Cable parameter

Item Value
Fiber count 1 core
Tight buffer Diameter 850±50um
Material PVC
Color White
Sub-unit Diameter 2.9±0.1mm
Material LSZH
Color White
Outer sheath Diameter 5.0±0.2mm
Material LSZH/TPU/HDPE
Color black
Strength member Double Aramid Yarn



Order Information ---YDPC-A-B-ESR-TC-L


Name Connector 1 at one side (A) Connector 2 at the other side (B) Cable type (E) Cable sheath(S) Cable color(R) Fiber type (T) Fiber count (C) Length (L)

Yingda=YD
PC=patch cord
PG=pigtail

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC
...

MSC=Huawei Mini SC/UPC
MSA=Huawei Mini SC/APC
SSC=Supertap SC/UPC
SSA=Supertap SC/APC
SU=SC/UPC
SA=SC/APC


23=2.0.*3.0mm flat cable
25=2.0*5.0mm flat cable
47=4.0*7.0mm flat cable
50=5.0mm round cable
30=3.0mm round cable
20=2.0mm round cable
...

LS=LSZH
PE=HDPE

G=gray
White=W
Black=B

2D=SM G.652.D
A1=SM G.657.A1
A2=SM G.657.A2
...

01=1core=simplex
02=2core=duplex
04=4core
...

001=1m
002=2m
...
100=100m
...

Example:
YDPC-MSA-SA-25LSR-A101-050
Pre-terminated patch cord with drop cable 2.0*5.0mm SM 6.657A1 LSZH 40meter Huawei compatible Mini SC/APC - SC/APC grey

NOTE: all connector is compatible with Huawei/Optitap/Hoptic/H connector, not original, please kindly note.
