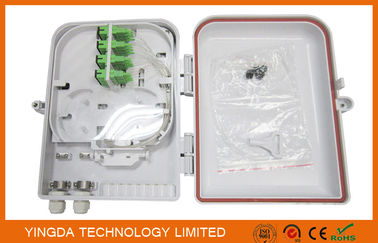

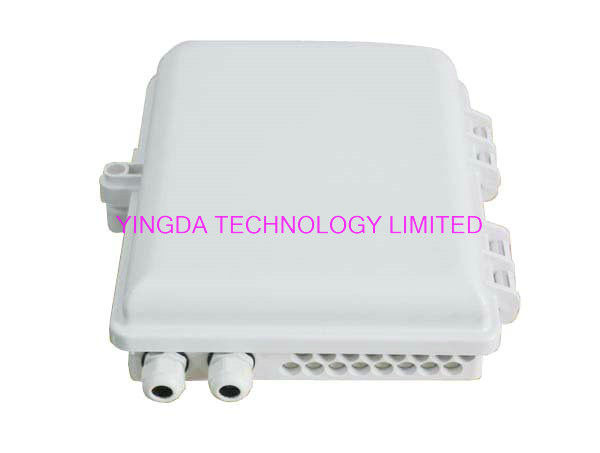

16 Ports Optical Fiber Termination Box, 1:16 Splitter Optical Distribution Box Pole Mount FTTH Plastic
FTTH Splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters). It can be used for protective connection of cable and layout pigtails, and fiber optic terminations of optic access network. It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.
It also finishes straight through connection, Cable shall be spliced with indoor cable after stripping and coiling in the box, which finishes straight through connection, complying to traditional network transportation requirement.

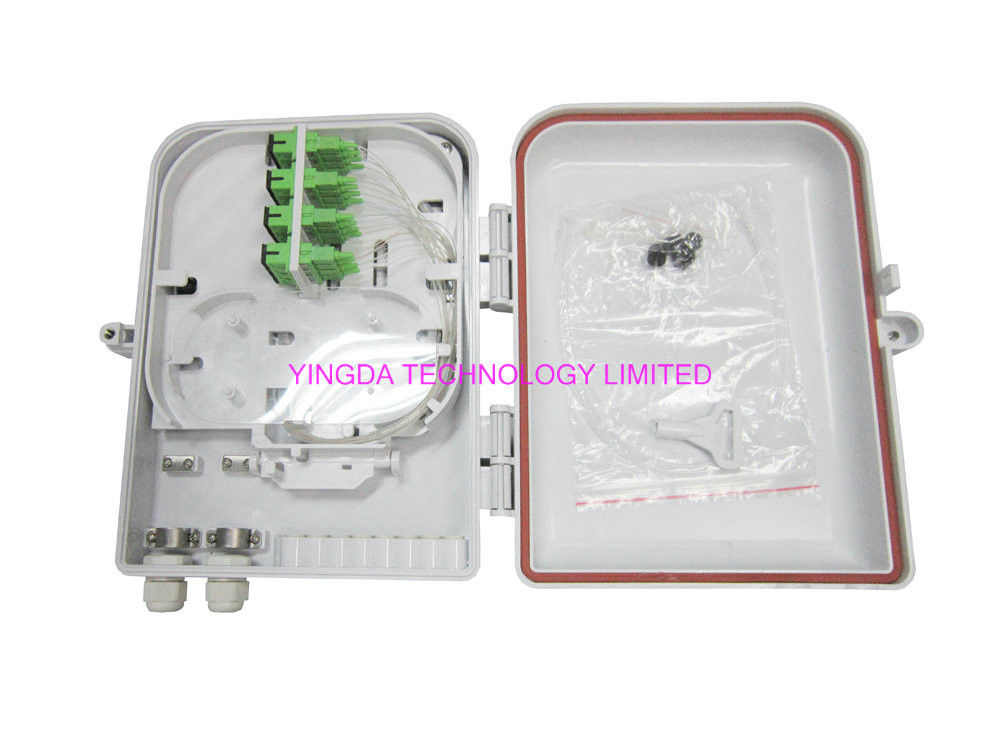

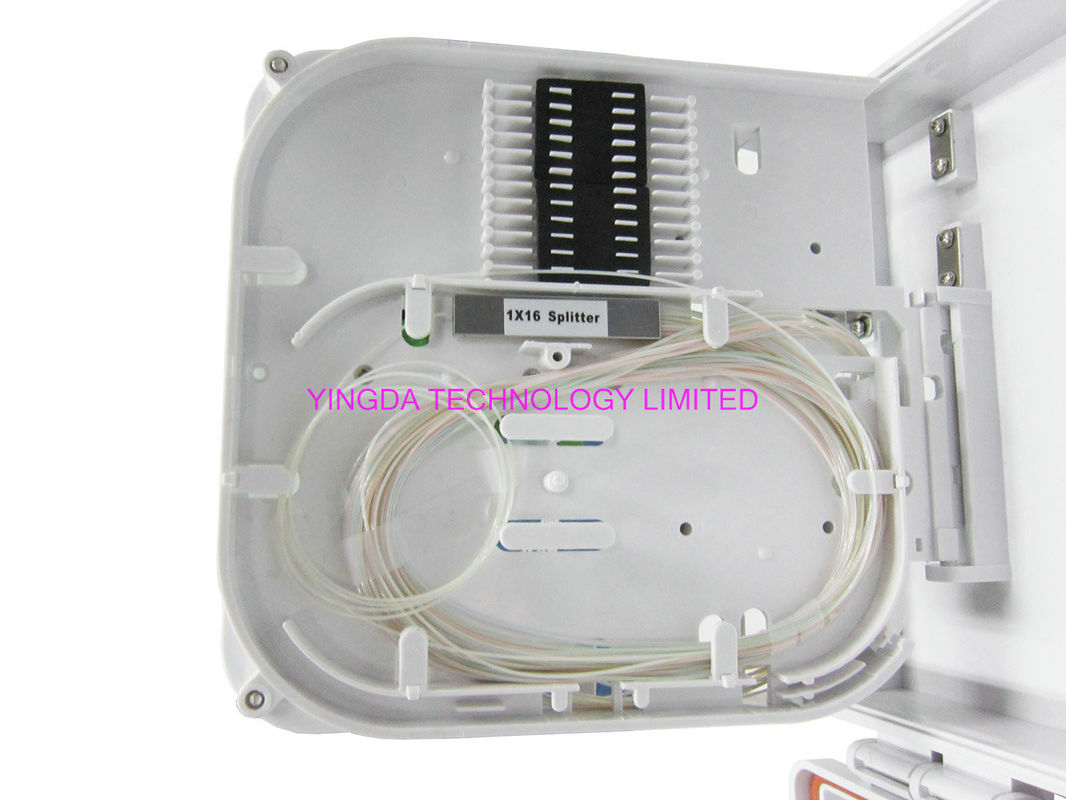

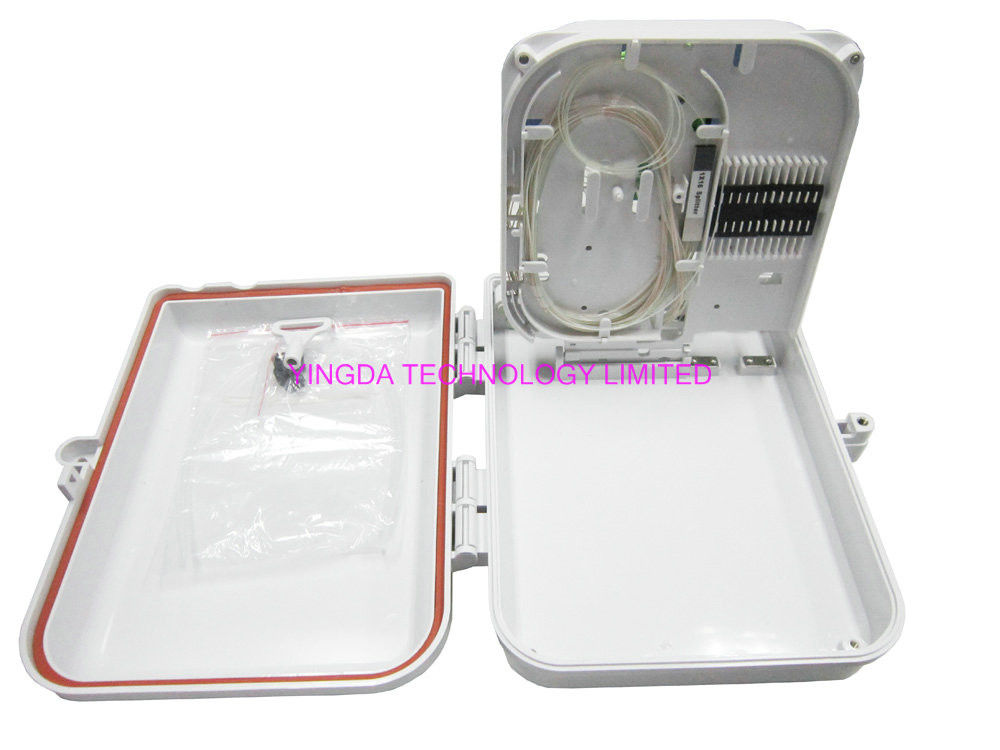

The splitter distribution box can realize the functions of splitting, splicing, distribution and butterfly-like cable dispatch after cables to the floor in FTTH project. The bottom part is for incoming cable fixing,storage,splicing, and parking. The upper layer is for cable distribution with adapter panels, and fiber storage.
the whole splice tray can be taken off by hand and install it in the box self-clip.
|Cable ports||2inlet, 16outlets|
|Splitter||Mini splitter 1x8,1x16|
|Model||N.W (kg/pcs)||Dimension of outer carton (mm)||G.W of outer Carton (kg/carton)||No of Products (pcs/carton)|
1.We can accept T/T, L/C and Western Union, Paypal, the way is direct online payment, you can choose yourself. If you want other payment term, please let us know before when you order.
2. For our long-term customers, monthly payment is OK!
Why Chose us :
1. Fast delivery
2. Competitive price
3. Professional product and technical support
4. Prompt answer for any question or inquiry
5. Reliable quality, OEM service available
6. Longtime warranty
7. Value-added service: except good products, we can provide good services on logistic and other help you may need
