Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
-
High Light
ftth fiber optic cable
,ftth drop cable
-
Cable JacketYellow, Orange, Aqua, Blue
-
Minimum Length10km
-
Fiber Count4 Core To 96 Cores
-
Cable SizeMax. 16.0mm
-
Jacket MaterialPE, LSZH, TPU
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO,SGS
-
Model NumberMPC
-
Minimum Order Quantity10 KM
-
PriceNegotiable
-
Packaging Details2km / wooden drum
Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
Description

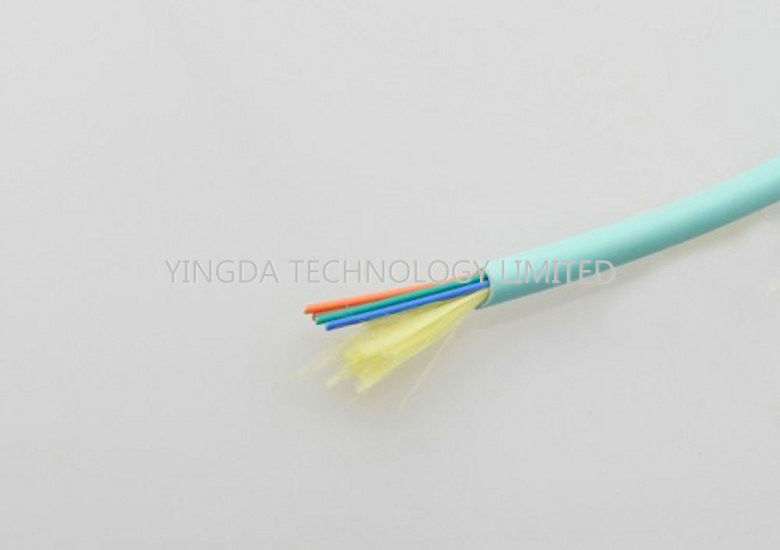

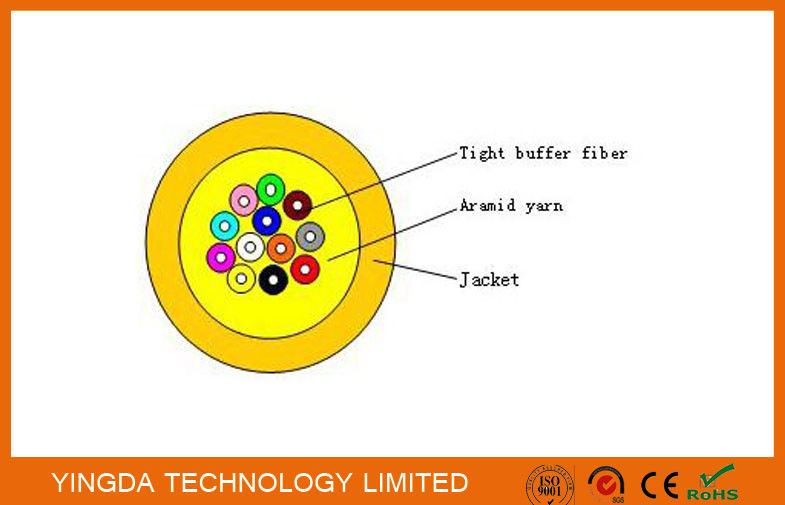

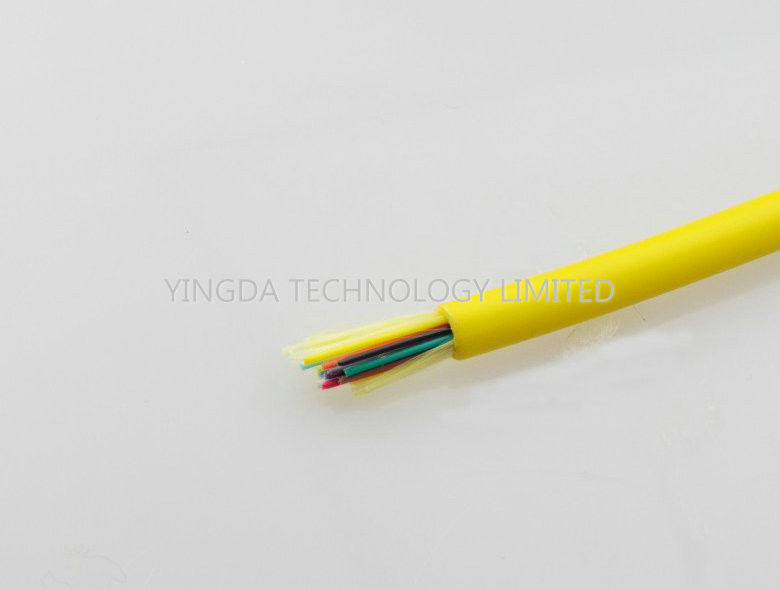

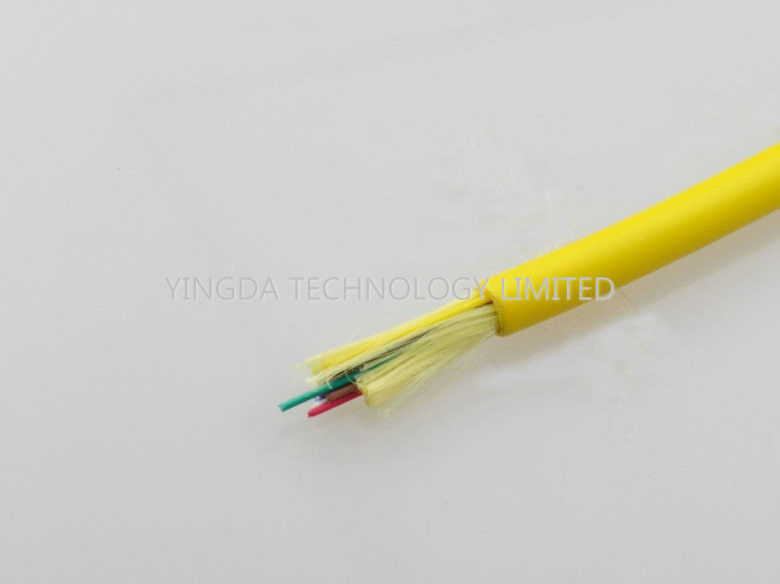

Multi-purpose distribution cable use several 900um flame-retardant tight buffer
fiber as optical communication medium, the tight buffer fiber wrapped with a
layer of aramid yarn as strength member units, and the cable is completed
with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Application
◆Multi-optical fiber jumper
◆Indoor any purpose cable distribution
Technical parameters
|
Cable code |
Fiber count |
Cable size (mm) |
Cable weight (kg/km) |
Tensile(N) |
Crush (N/100mm) |
Crush resistance |
Temper ature (°C) |
||||||||||
|
Long term |
Short term |
Long term |
Short term |
Dynamic |
Static |
||||||||||||
|
MPC04 |
4 |
4.8 |
17 |
200 |
550 |
200 |
1000 |
20D |
10D |
-20~+60 |
|||||||
|
MPC06 |
6 |
5.2 |
21 |
200 |
550 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC08 |
8 |
5.5 |
28 |
200 |
550 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC12 |
12 |
6.2 |
36 |
300 |
650 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC24 |
24 |
8.5 |
59 |
400 |
750 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC48 |
48 |
11.8 |
125 |
500 |
850 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC72 |
72 |
14.5 |
150 |
600 |
800 |
200 |
1000 |
20D |
10D |
||||||||
|
MPC96 |
96 |
16.0 |
185 |
800 |
1000 |
200 |
1000 |
20D |
10D |
||||||||
|
Fiber type |
G652D |
50/125 |
62.5/125 |
G657A1 |
G657A2 |
OM3-150 |
OM3-300 |
OM4 |
|||||||||
|
Jacket material |
PE |
LSZH |
TPU |
||||||||||||||
|
Features |
|||||||||||||||||
|
Single mode fiber optic cable sheath color: yellow |
|||||||||||||||||
|
Multi-mode fiber optic cable sheath color: orange |
|||||||||||||||||
|
Other contracted color |
|||||||||||||||||
