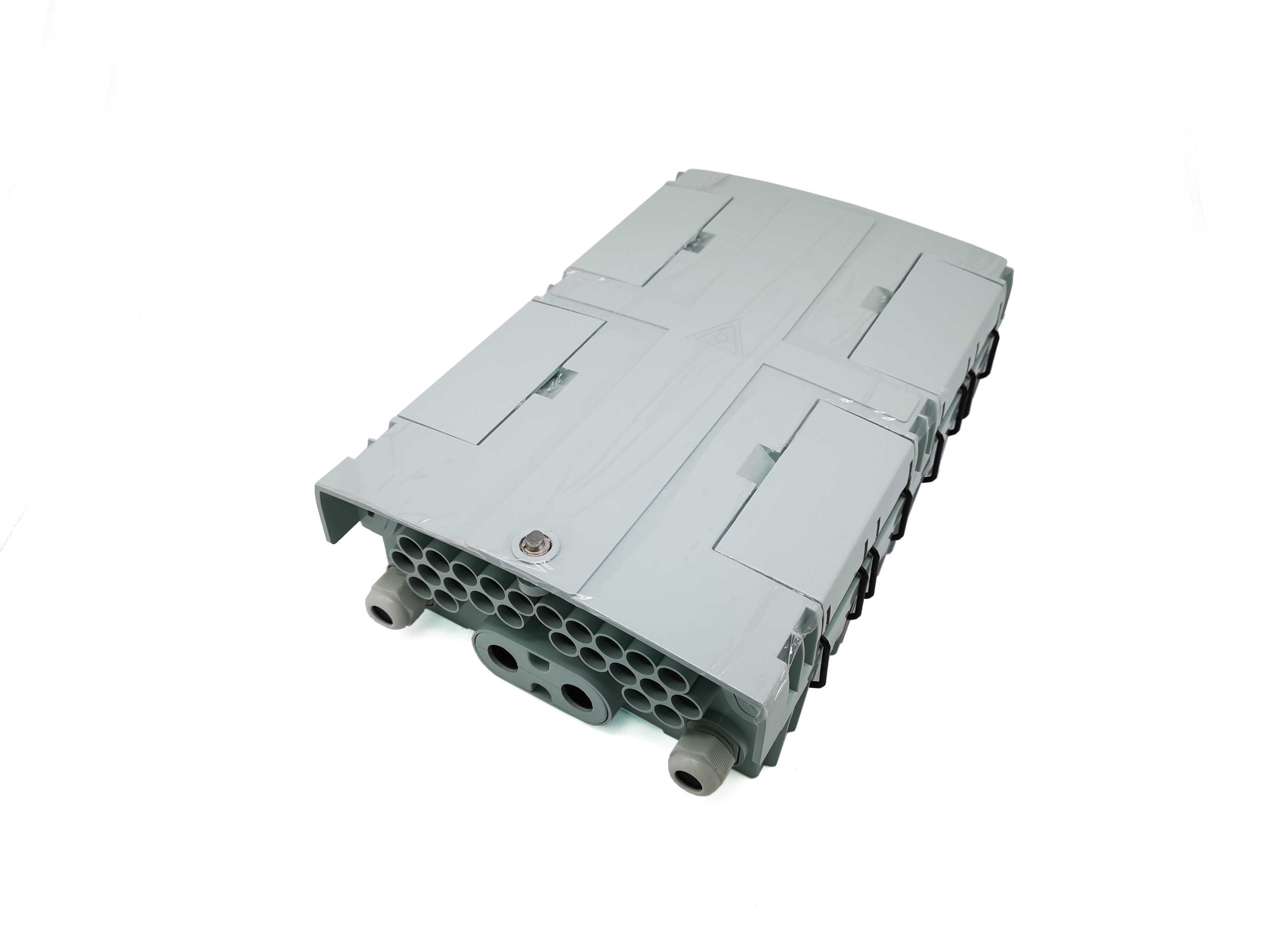

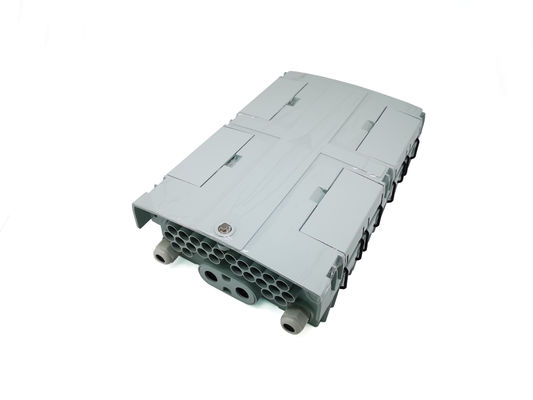

24 Port FTTH ODB Optical Fiber Cable Splitter Termaintion Box SC-APC Couplers Outdoor IP65 Gray

FDB0224M is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Specification

FDB0224M Optical Distribution Box Features

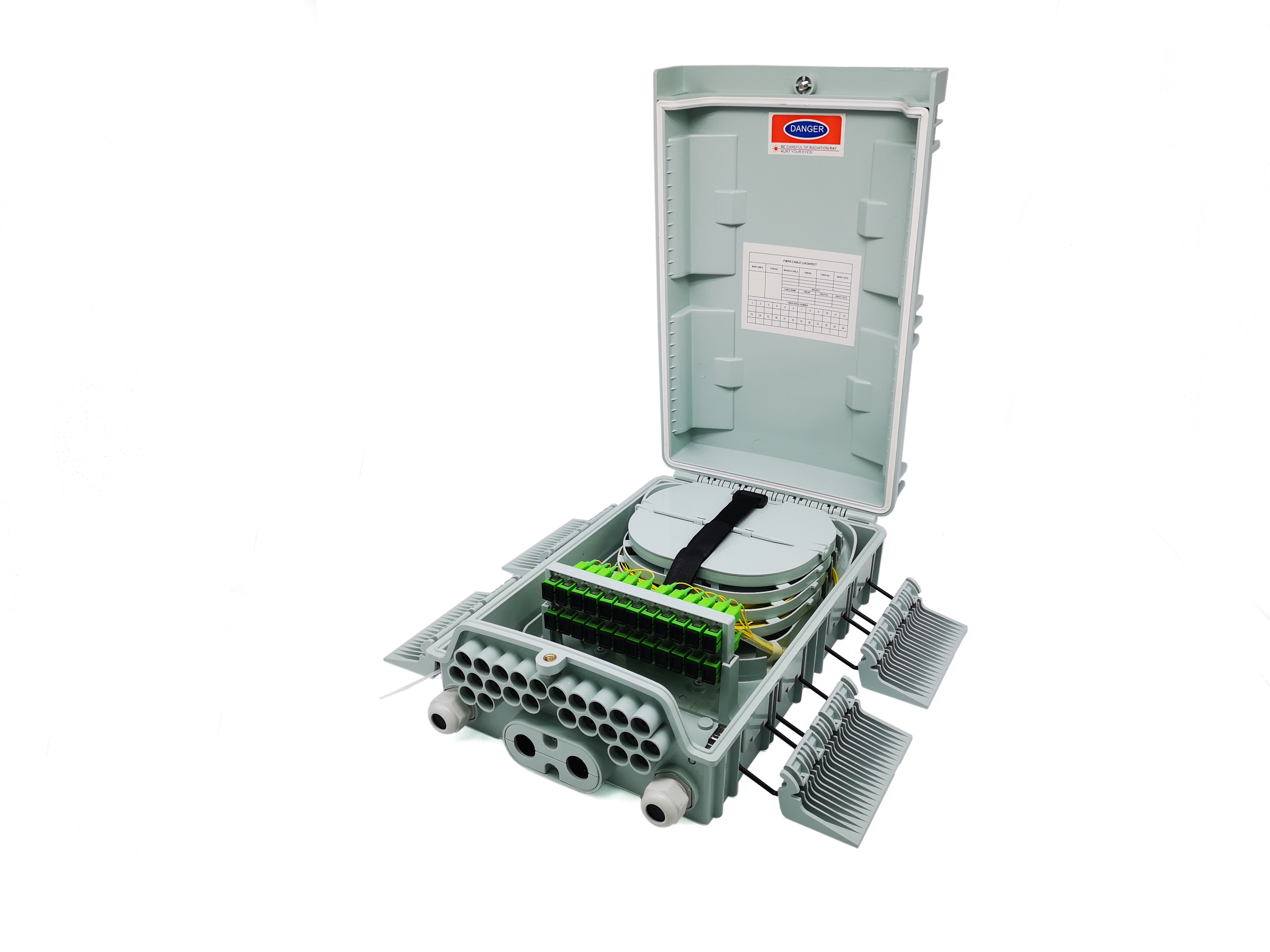

a box will configuration with 4pcs splice tray,each tray fusion splice 12cores, total 48cores.There is enough fiber routing or storage area, and 1splitter tube fix slot embedded in the middle of the tray.

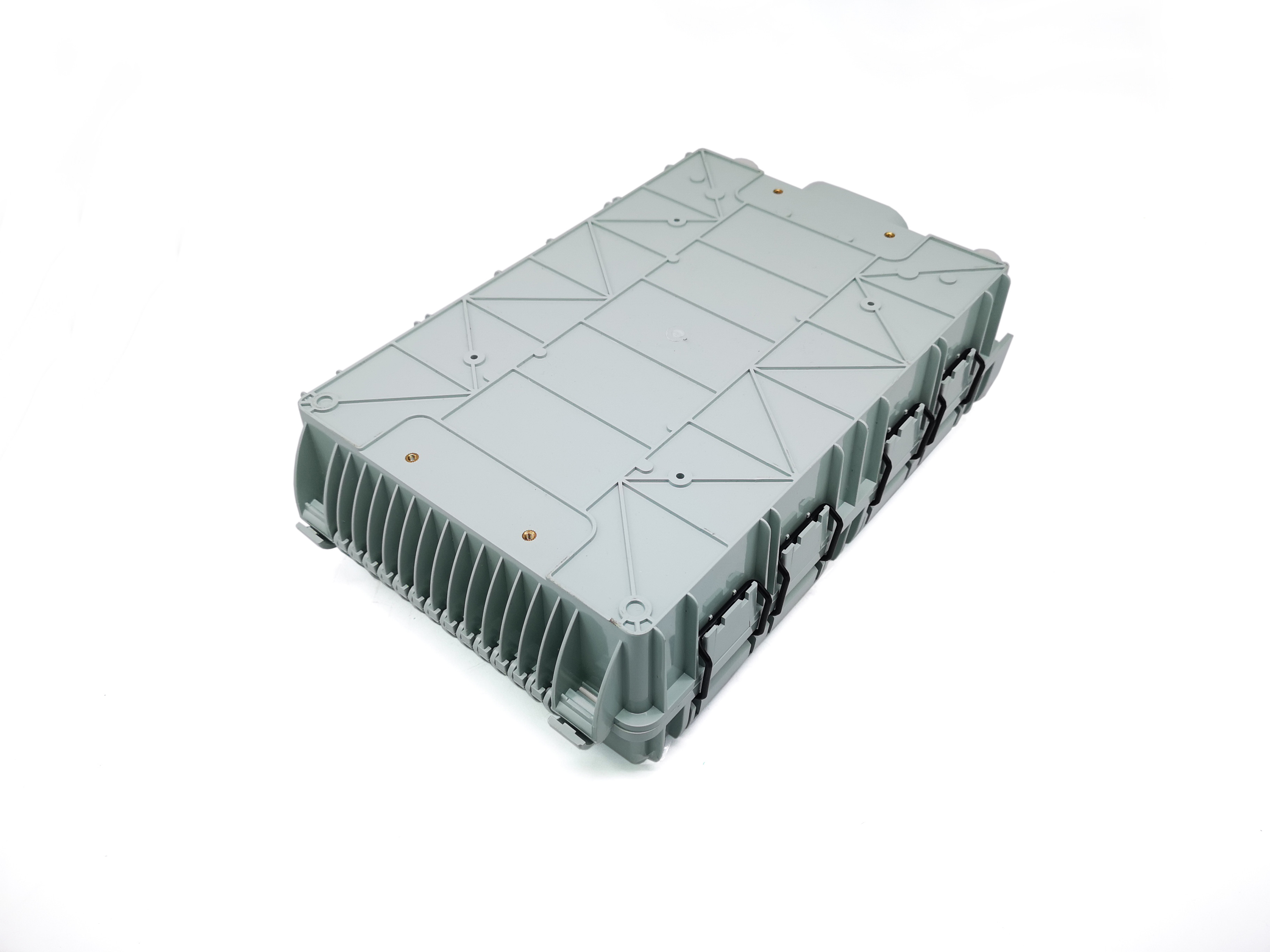

The trays are fixed during transporatio with velcro to keep it in place, and the cover and bottom of the box is hinge design, not separate, which make better operation.

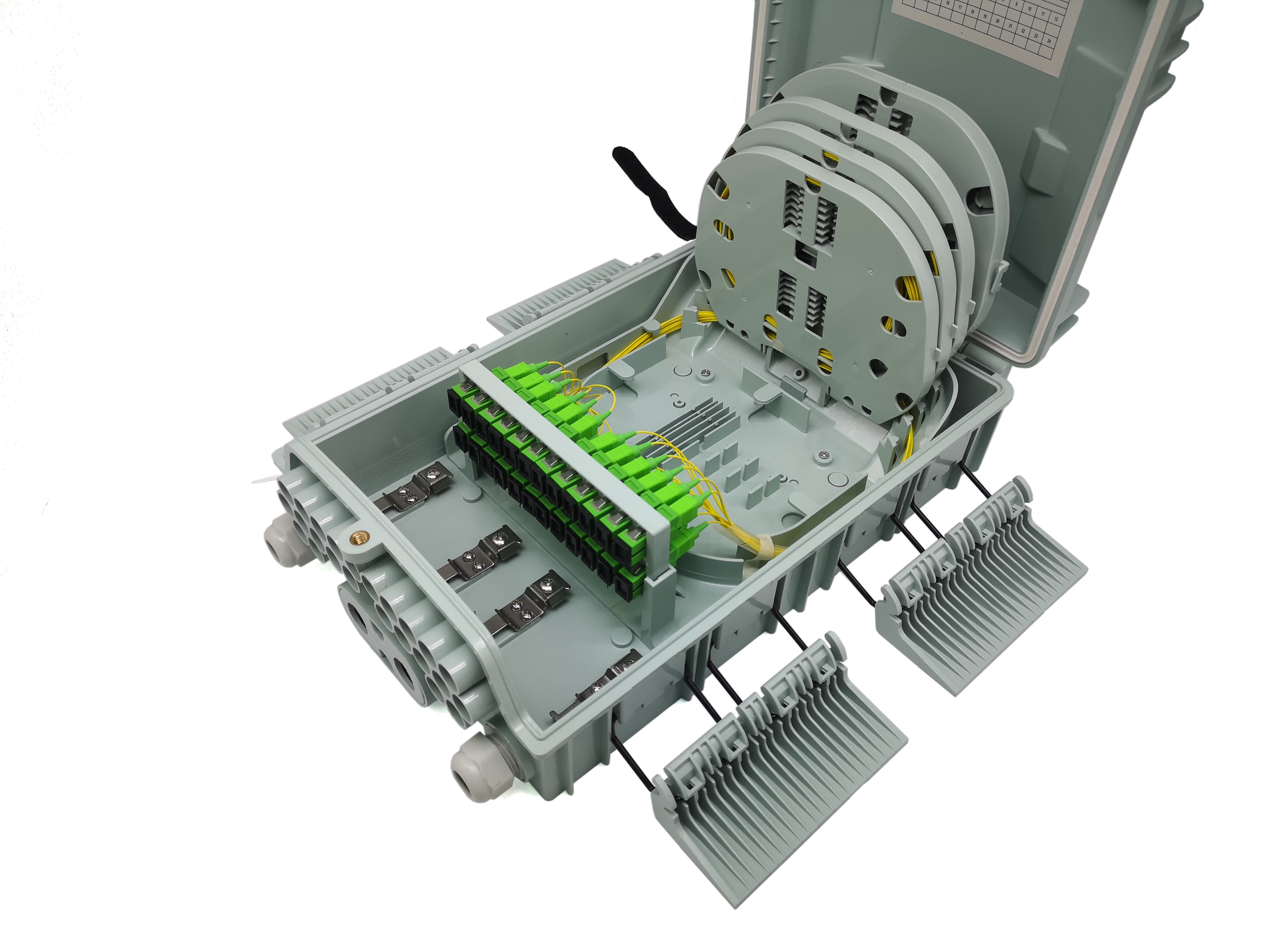

Each box maximum can load 24pcs SC fiber optic couplers on plastic adapter plate, unique design ensure stable without mounting screws, but with screw holes if customer need.

In front of the adapter, it is the cable entry there is stainless steel cable clamps, which screws to fix the cable entry.

The cable entry can be 1 piece mid span for express port, or 2 cable glands; 24pcs cable exit with rubber seal espeicallly use for ftth figure-8 drop cable exit.
