PON FTTH Splitter Fiber Optic Enclosure 48 Cores 3 Layers 4 In 4 Out
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Size||600*162*81mm||Cable Port||4in 4out, 16pcs Drop Cable 2*3mm|
|Cable Diameter||8-16mm||Adapter Qty||9pcs Or 16pcs SC SIMPLEX Coupler|
|Splitter Qty||2pc 1x8 Or 1pc 1x16|
fiber optic junction box,
fiber optic cable junction box

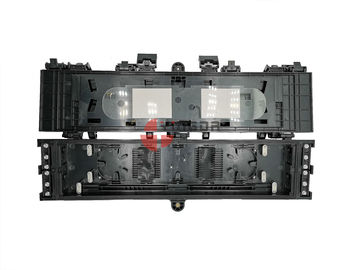

PON FTTH 1:8 1:16 Splitter 48 Cores 3 Layers PP Fiber Optic Splice & Splitter Closure
GJS-2018 Splitting and Wiring fiber optical splice closure not only have the butt-joint and branching function, but also have the function of optical cable splitting and wiring, suitable for the installation of main optical cables and drop cables with different diameters.
- The closure adopts horizontal mechanical sealing and advanced internal structure design.
- It can be installed two 1:8 Blockless PLC splitter or one 1:16 Blockless PLC splitter.
- 4 pcs 8～16mm main cable both ends in and out.
- 16 pcs 2*3mm drop cable both ends in and out.
- The closure is spacious enough for winding and storing fibers.
- The patented sealing structure keep good sealing performance after re-entry and re-using.
- Easy open and close of closure with very little tool.
- 24cores Fusing Splice available(Max.48cores)
- Messenger Installation available in the Closure
- Mid-Span Branch,Aerial mounting
- Separated in PLC Splitter Room and Fusion Splice Room
- It is especially applicable to FTTH optical fiber distribution
|Max Capacity||48 cores|
|Max. Adapter||18 pcs SC|
|Splice tray capacity`||24 fibers or 48 fibers|
|Max. Splitter:||2pcs 1:8 or 1pc 1:16 mini tube|
|Cable port||4 in 4 out, 16 pcs for drop cable|
|Cable diameter||4 round:Φ8～Φ16mm; 16 ports-2*3mm drop cable or indoor cable|
load with all mounting accessories and user manual, high quality and unique design inside for splitter, adapter, pigtail and fibers.
Cable port: each side 4in 4out, 8pcs drop cable, with fubber seal for 3 layers for good waterproof, stainless steel metal screws and components

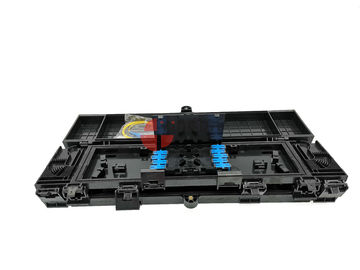

can load 9pcs SC adapter or 16pcs Adapter ; can fusion 48 cores single fiber, with sleeve slot, and enough fiber storage and distribution spce
Cable port diameter:15.72mm Cable port diameter: 9.12mm
|Heat shrinkable protective sleeve||1bag||Desiccant||2bags|
|silicon oil||1 bottle||Buffer tube for bunchy fiber||1 roll|
|Seal tape||1 roll||Abrasive cloth||1pc|
|Aerial mount hanging hook||1set|
