96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector

  • High Light

    fiber optic closure

    ,

    optical distribution box

  • Material
    PC+ABS
  • Color
    Gray, Black
  • Dimension
    345*220*95mm
  • Adapter/outport
    Max. 8pcs Reinforced SC Adapter
  • Max. Capacity
    96 Cores
  • Cable Input
    1 Uncut Port+2 Reserved Cable Entrance
  • PLC Splitter
    Mini 1x8 PLC Splitter
  • Application
    Wall Mount,Pole Mount,Aerial-hanging
  • Sealing Type
    Mechanical Sealing
  • Max. Splice Tray
    4PCS(24 Fibers/tray)
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    FDB0208Y
  • Minimum Order Quantity
    100pcs
  • Price
    Negotiable
  • Packaging Details
    1pcs/box
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    100k pcs per month

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector



This fiber optic splitter box is able to hold up to 8pcs reinforced adapters. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. Its splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. You can take each tray out, after splice, then fix it in closure. The box integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features

  • Water-proof design with IP-65 Protection level.
  • Integrated with flap-up splice cassette and adapter holder.
  • 96F splice capacity and 8 positions for SC reinforced adapters.
  • Plug-and-play installation, easy for maintenance and expansion.
  • Fiber bend radius control more than 40mm.
  • 180 degree access with buckled lock structure.
  • 1*8 PLC splitter can be installed in each splice tray as option.
  • 8 pcs of pre-installed reinforced water-proof adapter for SC.
  • 1 uncut cable port(10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable(8-16.5mm).

Specification

Model FDB0208Y
Material PC+ABS
Dimension 345*220*95mm
Cable Port 1 uncut port, 2 reserved cable entrance
Cable Dimension uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm
Cable Outport 8pcs mini optiTap connector ports
Max. Capacity 96 Fibers (4 trays, 24F/tray)
Sealing structure Mechanical sealing(buckle and screw)
PLC Splitter Max. micro 1x8 Splitter
Color Gray, Black
IP Grade IP65
Application Wall mount, pole mount or Aerial-hanging
Weight 1.2KGS



More Detail

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 096 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 1

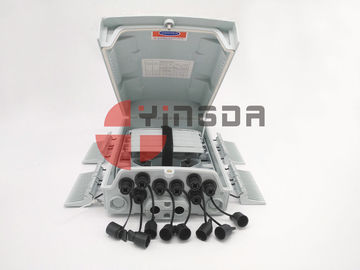

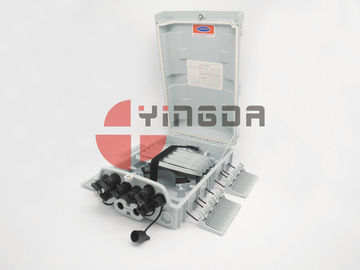

                           Outer of box                                                            Inside of box

  • There are total of 4pcs splice tray that can splice 24 fibers for each tray.
  • Picture 2, A black strap fixes all splice trays to avoid damage.

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 296 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 3

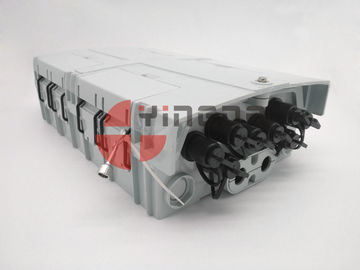

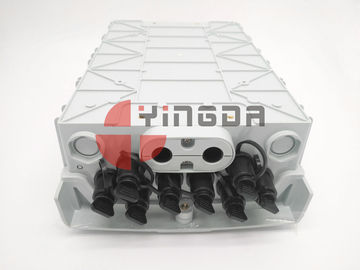

                        The bottom of box                                                      Cover



96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 496 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 5

  • Picture 1 shows the inside of splice tray, each splice tray can splice 24 fibers max. There is a groove to put steel tube of mini PLC splitter.
  • Picture 2 shows the cover of splice tray, there is a tool on the cover. we can use the tool to coil and storage fibers.

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 696 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 7

              Inside of the mini optiTap connector                     Outer of the mini optiTap connector

  • Can use the black dust cap to block the ports if do not use the outports. The black cap is waterproof.

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 896 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 9

  • On both sides of the uncut port, there are 2 reserved cable entrance. As the red circle marked.
  • Can install the cable gland(picture 2) on the reserved cable entrance.

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 1096 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 11

  • Shows the cover of box, this box is sealed by screw and buckle.
  • As the above picture, there is a laser mark on the middle of the cover

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 1296 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 13

  • The metal parts are the wall mounted accessories. We install the metal parts on the back of box (as the red marked).
  • If need pole mount kits, please tell us.

96 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 1496 Cores Outdoor FTTH Fiber Optic Cable Junction Box with Reinforced SC Connector 15

                             Accessories                                                       Packing box



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, key, wrench, rubber seal for cable entrance.



Optional Accessories

Pole mounted kits, Aerial hanging kits.
