8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

China 8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier
8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier 8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier 8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier 8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier 8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet supplier

Large Image :  8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FTB-008-SC06

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 1 pc / box, 60 pcs / carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Contact Now
Detailed Product Description
Material: ABS+PC Color: Gray
Cable Port: 2 In 8 Out Fusion Capacity: 8 Cores
Splitter: 1x2,1x4,1x8 Steel Tub Plc Splitter Connector: SC/UPC
Input Diameter: 12 Mm Output Diameter: 2*3.0 Mm
Features: Laser Mark, Or OEM , 2 Removable Cover Application: Wall Mounted Indoor

8Port FTTH Mini Splitter Fibre Optic Termination Box Wall Mounting On Floor Cabinet Flame Retardant Plastic



This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The cover of the box is fixed with screws into the bottom, and the front lid of the outputs to adapter is hinged with the upper parts, and it is fixed with screws to the bottom. Opening of the lid will not affect the movement of the other parts of the box, this unique design makes the box more safe, nice and humanity when installation on site and afterwards possible maintenance.



There are 1 splice tray for max. 8 fibers fusion splice, it has enough space for 8 fiber buffer cable or single fiber 1.5meter storage, also it can split 1x2,1x4,1x8,2x2,2x4 mini splitter, mixing fusion, splittering, distribution and storage in a box. The fiber bending radius minimum is 20mm.



Specification:

Model FTB-008
Dimension (H*W*D) 170*130*40mm
Cable ports 2in, 8out
Cable dimeter In:12mm, out: 2*3.0mm
Installation Wall mounted
Max. Fusion Capacity 4cores (bunchy fiber)
Splice tray 1pc
Material ABS+PC
Color Gray
Max. Splitter 1x2,1x4,1x8, 2x2, 2x4 mini splitter
Max. Adapter

8pcs SC simplex

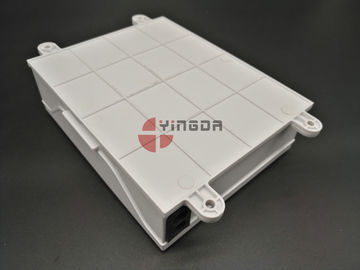

Outer apperance:
8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet   8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

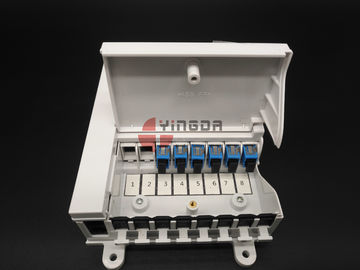

Total enclosed box, 2lids with 3screws to fix it on the box body:

1 is for adapter and cable outports, it can be can be flip up 90 degree for easy installation,

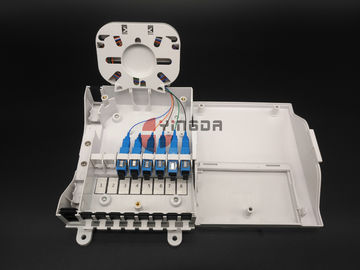

the other is for splice tray, cable entry and out, splitter distribution and fix, both side of the lid is clip into the box. after loosen the screws, then press down the both sides of the lid, then you can open the whole lid.



8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet   8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

The front left is for feeder / distribution cable entry and exit go straight through the box no need cutting (also named express port or mid span port);

the right is for distribution cable to the home / end user house or home. there is cable fixtion for all soft cable, ftth drop cable, etc.

all ports is with rubber seals.

wall mount with 4 screw holes at top and bottom.

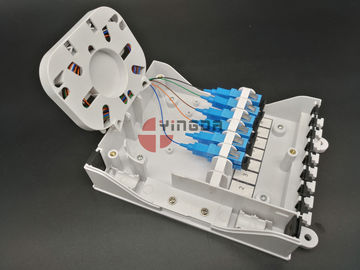

Product details:

8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet   8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

All the metal parts is steel stainless AISI-303 and resistant to the corrosion in normal temperature, can be test ok in different facilities.

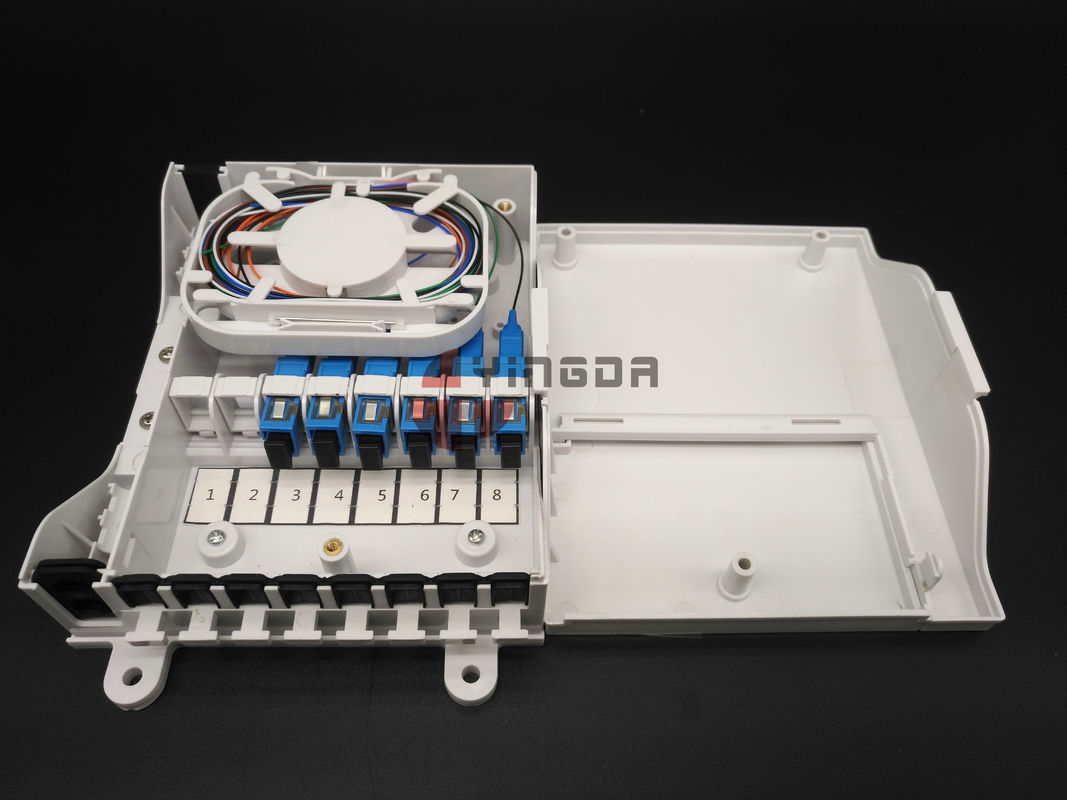

all the adapter holders is plastic, and rotate 360 degree to change the direction or for better insert of the adapters or pigtails. each can take out for adjust or future use.

only SC adpater with flange / flangeless can be used.

can print customer logo, sample ok.



8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet   8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

The entry 2ports can use multi-fiber cable maximum diameter 12mm, it can also use un-cut cable goo through the box without cutting, more convenient and fast to installation. The output ports 8pcs can do 2*3mm diameter cable, especially for FTTH drop cable figure-8 type. There are cable tie wraps or cable fixtures for inputs or outputs.



Features

  • 2inlet, 8outlets
  • Max. 8 ftth drops
  • Life span 20years.
  • Can use SC adapter 8pcs
  • The both cover is removable.
  • Can use for PLC splitter mini module 1x2,1x4,1x8
  • High strength engineering plastic, compact size, light weight
  • All the materials used is non toxic and dermatologically safe.
  • Pre-terminated with PLC splitter or adapter is ok, OEM acceptable

Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.



Accessories like below:

8 Port Fiber Optic Termination Box / FTTH Mini Splitter Box Wall Mounting On Floor Cabinet

  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • Adapters or plc splitter optional pre-terminated at factory
  • English or Spanish instruction manual
