FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box

China FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box supplier
FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box supplier FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box supplier FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box supplier FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box supplier

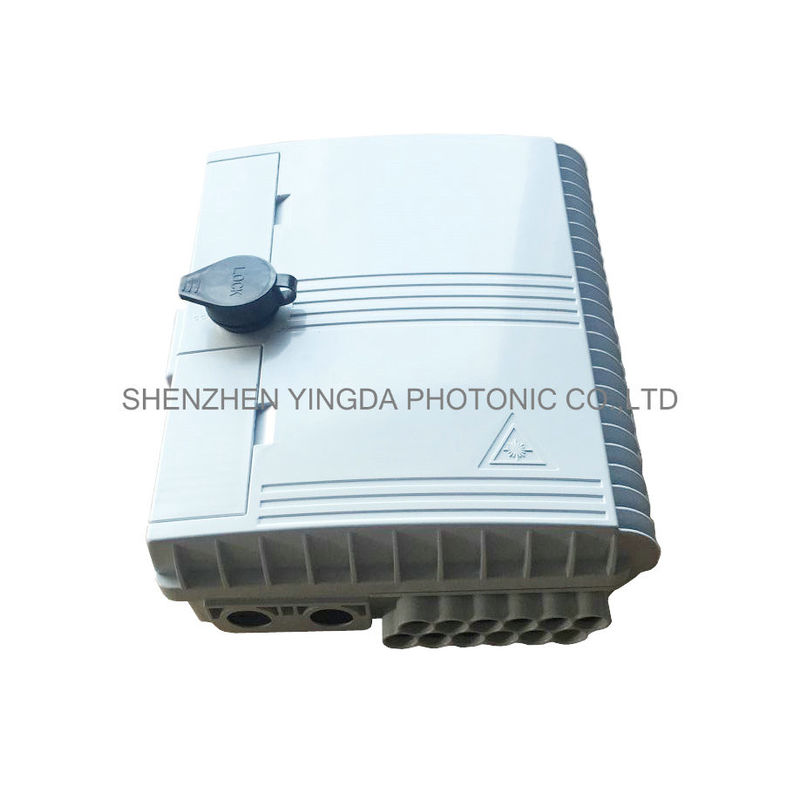

Large Image :  FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: FDB0212G

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs, first order accept small order
Price: negotiable
Packaging Details: 1pc/box, 20pcs/carton box
Delivery Time: 5-8working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50k per month
Contact Now
Detailed Product Description
Material: PC+ABS Capacity: 12 Fibers
Adapter Qty: 12pcs SC Adaptor In 3way Split Ratio: 1x2,1x4,1x8 Micro Splitter Optional
Color: White/gray/black Size: 250*190*39mm
Connector Insertion Loss: <0.2dB OME Or Sample: Ok
Cable Port: 2in 16out; Input; Un-cut Cable Or Gland Cable Diameter: 16mm

FDB 16Ports Outdoor Optical Fiber Termination Box For Un-cut Cable White 16Cores Plastic Waterproof With Key Clip



FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box



FDB0212G optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Features

  • lPC+ABS material used ensures the body strong and light..
  • Wet-proof, water-proof, dust-proof, anti-aging
  • Easy installations: Ready for wall mount – installation kits provided
  • Space saving: Double-layer design for easier installation and maintenances
  • Easy installations: Ready for wall mount – installation kits provided.
  • Protection level up to IP55
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
  • Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.



Specifications



Dimensions (W*H*D)   250*190*39(mm)
Adapter Capacity   SC 8; LC 16; PLC 1X8.
Number of Cable Entrance/Exit   2/12
Optional Accessories   Adapters, Pigtails,PLC splitter
Insertion loss   ≤0.2dB
UPC return loss   ≥50dB
APC return los   ≥60dB
Life of insertion and extraction   >1000 times
Weight   1.0KG
Max diameter of entry cable   16mm

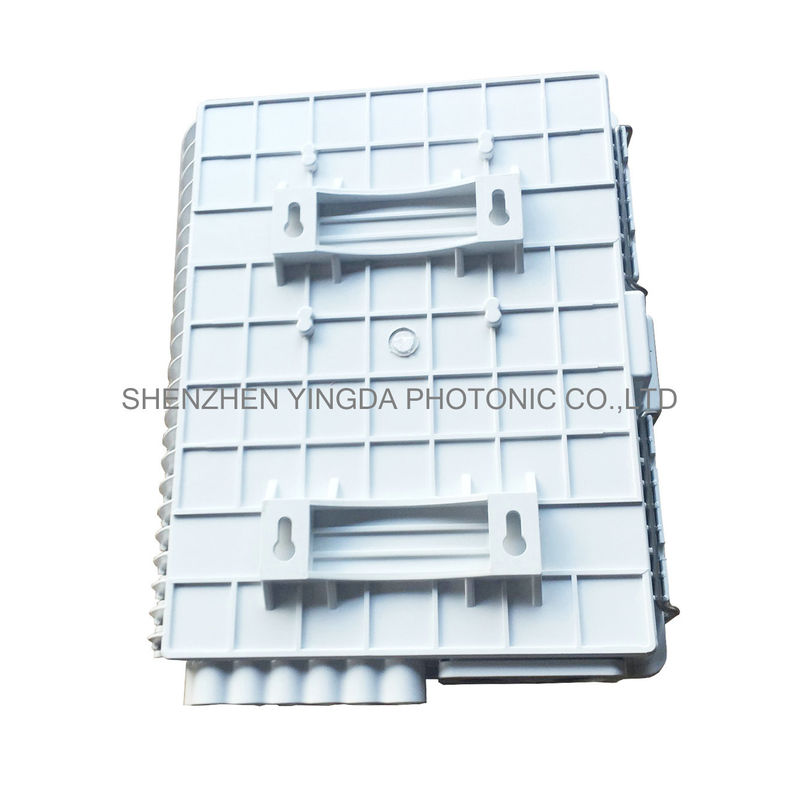

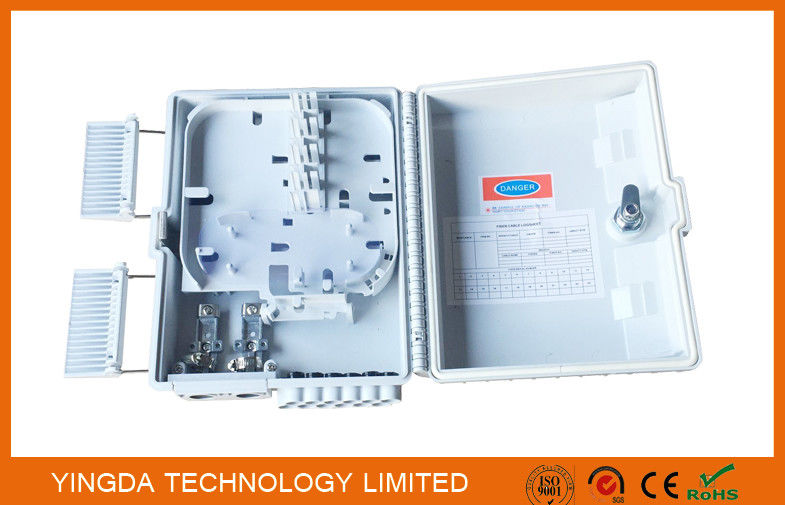

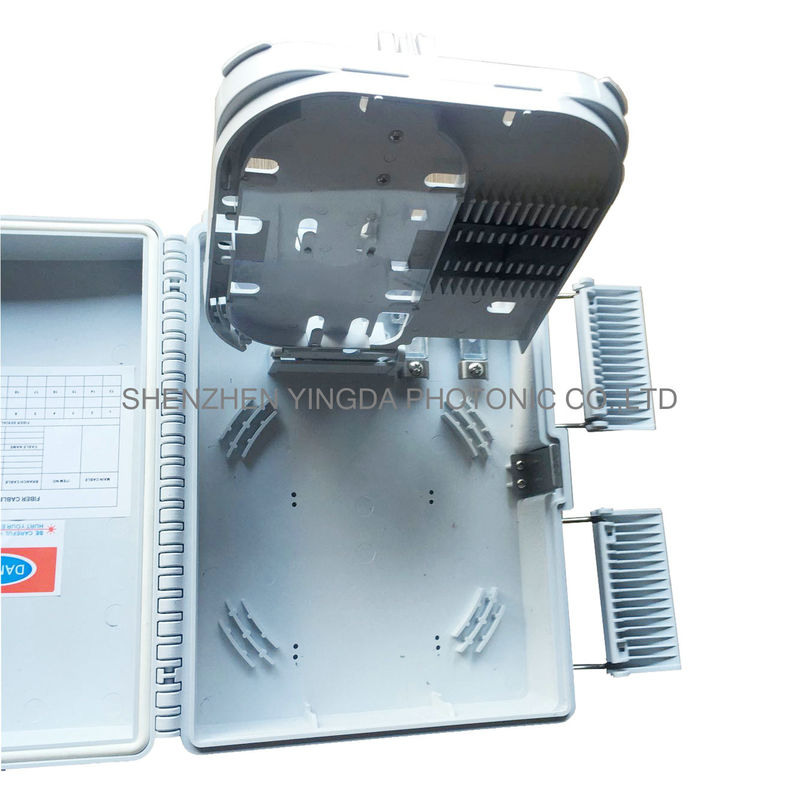

More pictures

FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter BoxFDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box

FDB Outdoor Fiber Optic Termination Box With Key Clip For Un-cut Cable Optic Splitter Box



Operation Conditions



Temperature -40℃ -- 60℃
Humidity 93% at 40℃
Air Pressure 62kPa – 101kPa





Shipping Information



Model FDB0212C
Package Dimensions(W*H*D) 280mm*220mm*105mm
Material Carton box
Weight 1.14KG
Lead Time 7-10 working days



Shipping & Delivery

  • We will send the products within 10 days.
  • We ship small batched by air, or large orders by container.



Return and Warranty

  1. All products have been tested before ship out.
  2. All products have 1 years warranty. If there is no man-made problem ,we will replace or repair for you freely.
  3. We own the best after-sale service. If any problems happen, our team will do our best to solve.
