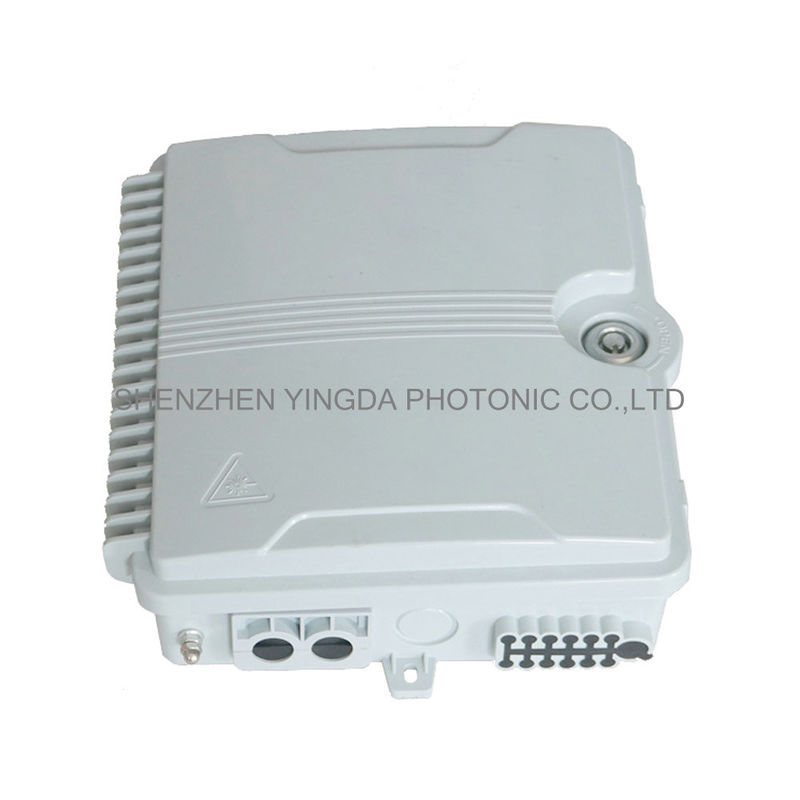

High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter

Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number FDB0212C
Minimum Order Quantity 200pcs, first order accept small order
Price negotiable
Packaging Details 1pc/box, 20pcs/carton box
Delivery Time 5-8working days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 50k per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PC+ABS Capacity 12 Fibers
Adapter Qty 12pcs SC/APC Couplers Split Ratio 1x2,1x4,1x8 Micro Splitter Optional
Color White Size 225*200*65mm
Connector Insertion Loss <0.2dB OME Or Sample Ok
Cable Port 2in 16out; Input; Un-cut Cable Cable Diameter 16mm
High Light

fiber optic closure

,

optical distribution box

Leave a Message
Product Description

High Strength Plastic GPON 12 Fibers Fiber Optic Distribution Box, 12 Ports Fiber Optic Splitter Box with SC/APC Adapter Panel





FDB0212C fiber optic splitter box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor or outdoor.





Feature

  • ABS material used ensures the body strong and light.
  • Water-proof design for outdoor uses.
  • Easy installations: Ready for wall mount – installation kits provided.
  • Adapter slots used – No screws and tools needed for installing adapters.
  • Ready for splitters: designed space for adding splitters.
  • Space saving! Double-layer design for easier installation and maintenances:
  • Lower layer for splitters and over length fiber storage.
  • Upper layer for splicing, cross-connecting and fiber distribution.
  • Cable fixing units provided for fixing the outdoor optical cable.
  • Protection Level: IP65.
  • Accommodates both cable glands as well as tie-wraps
  • Lock provided for extra security

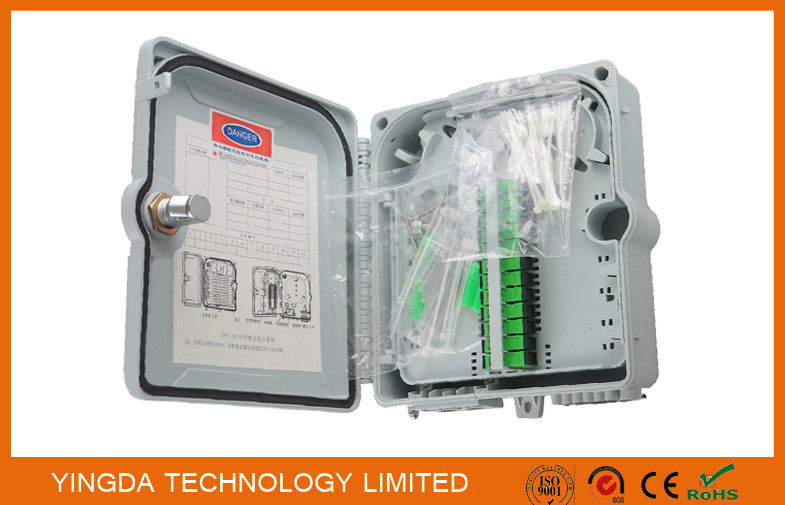

Structure explanation



High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 0High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 1

Configuration



Model FDB0212C Distribution box
Installation size 168*210mm
Mounting method Pole mount ; Wall mount
Max capacity 12fibers SC, 24fibers LC duplex
Cable ports 2in,12out
Cable diameter 16mm feeder cable or 2*3.0mm drop cable
Split ratio 1x2,1x4, 1x8 micro splitter



Package information



Model Inner pack size Carton box size Q’ty/carton G.w./carton

FDB0212C

termination box

240*230*90mm 50*48*49cm 20pcs 21.2kgs





Environmental reguirement
Working temprature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times

Thunder-proo technical datasheet
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);

IR≥2*104MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V



More pictures

High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 2High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 3High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 4High Strength GPON 12 Fiber Optic Termination Box , Fiber Optic Splitter Box with SC/APC Adapter 5
