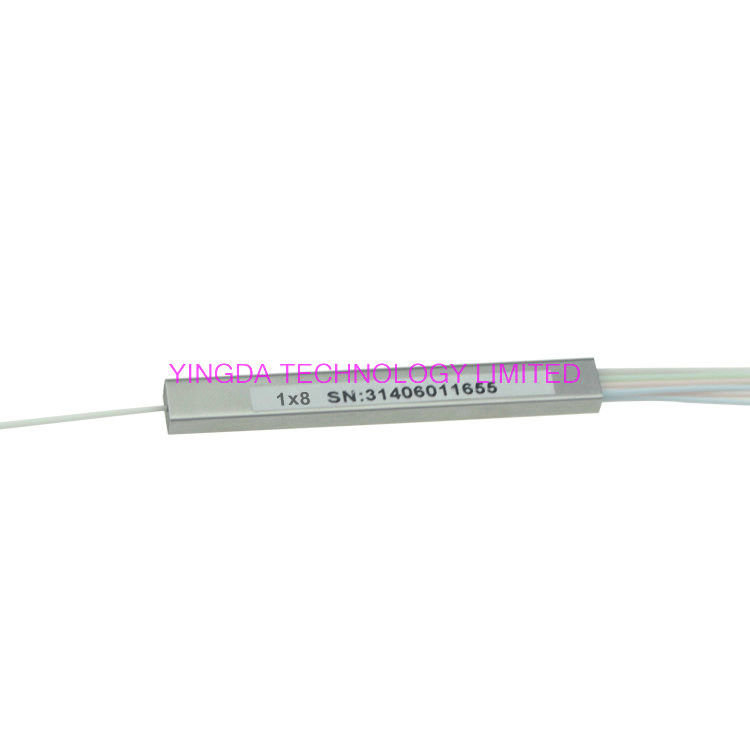

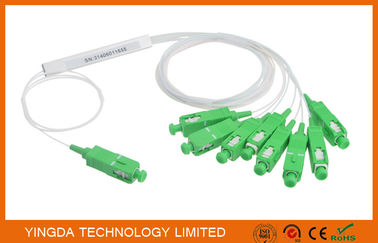

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

China 1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier
1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier 1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier 1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier 1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier 1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter supplier

Large Image :  1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: 1*8 PLC splitter

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1pc/ box,80pcs/carton box
Delivery Time: 5-8days after payment
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10,000 pcs per month
Contact Now
Detailed Product Description
Split Ratio: 1:8 Splitter Module Fiber Type: SMF-28e G657A1
Insertion Loss: 10.2dB Connector: SC/APC
Wavelength: 1260 - 1650 Nm PDL(Max.): 0.3dB
Standard: Telcordia GR-1221 And GR-1209 Tube Dimension: 60*7*4mm
Input And Output Length: 1meter Cable Type: Tight Buffer
Cable Color: White Cable Diameter: 0.9mm

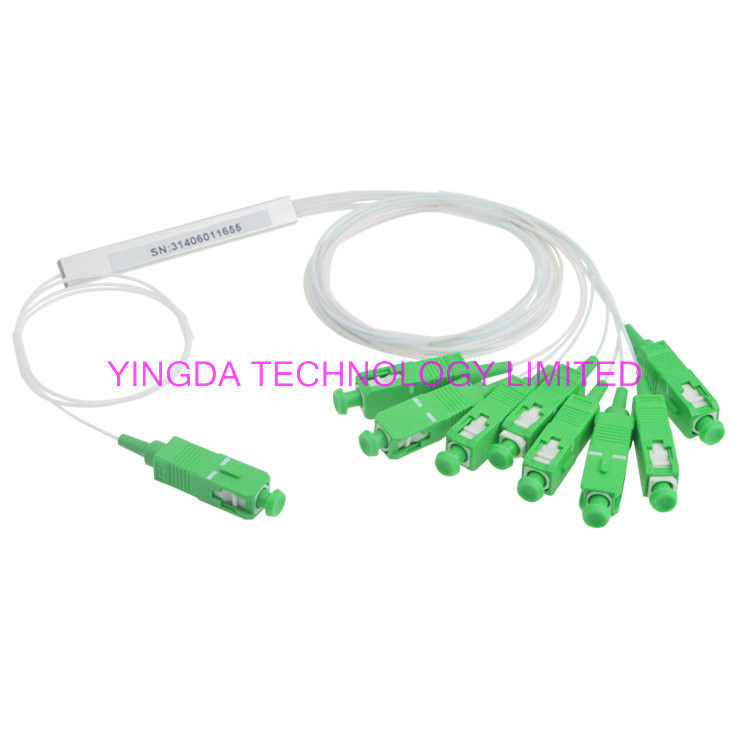

Blockless Fiber PLC Splitter 1*8 SC/APC Connectors LSZH, FTTH Optical Fiber PLC Splitter 1x8





Planar Lightwave Circuit (PLC) splitter, PLC splitters are used to distribute or combine optical signals, widely used in GPON Network. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. 1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly, while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. YINGDA PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements. YINGDA is a manufacturer and supplier who can supply PLC Splitters with low price. The Polarization Maintaining (PM) PLC Splitteris also on sale. YINGDA can also provide customized services of PLC Splitters and customers can customize LOGO. Our PLC Splitters type as shown below. For any questions, please feel free to email us: sales@ydpcable.com.





Features



Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

High Reliability and Stability

Stability Telecordia GR-1221 and GR-1209

Components through TLC-Certified,Conform to YD1117-2001


Application



FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

Telecommunication Networks

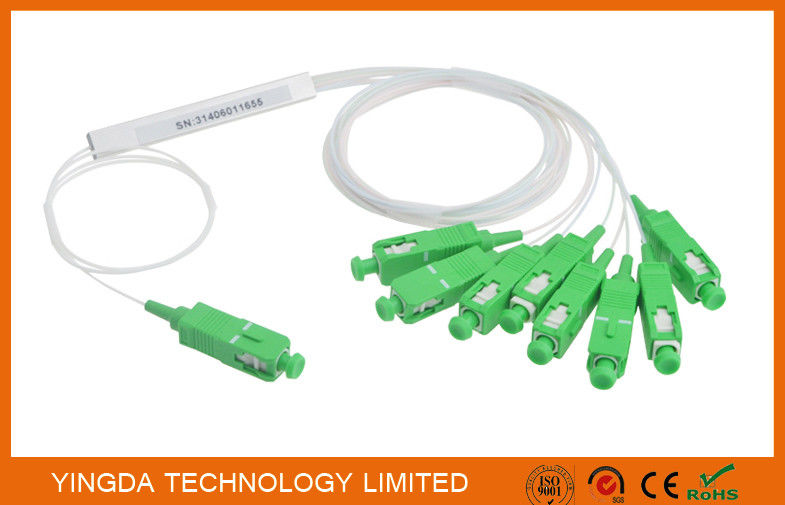

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

Specification



Split ratio 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Operating Wavelength(nm) 1260-1620nm
Fiber Type G657A1 or customer specified
Insertion Loss (dB)P Grade 3.8 7.1 10.2 13.5 16.5 20.5 23.8
Insertion Loss (dB) S Grade 4 7.3 10.5 13.7 16.9 21 24.2
Loss Uniformity(dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) 55
Directivity (dB) 55
Wavelength Dependent 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Loss(dB)
Temperature Stability(-40- +85℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature -40- +85℃
Storage Temperature -40- +85℃



More pictures

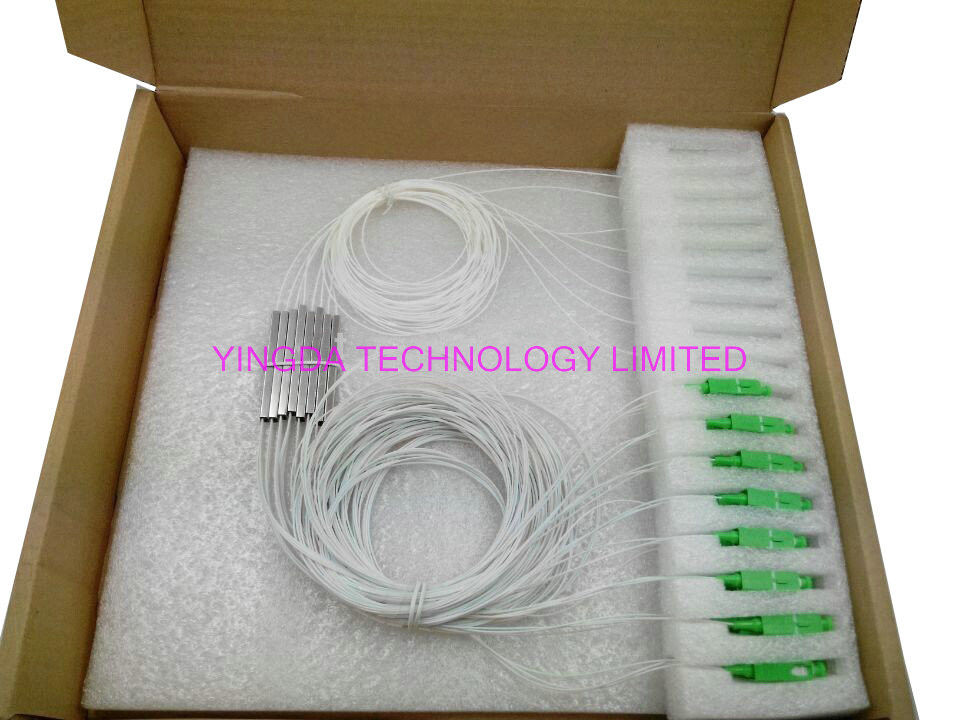

each plc splitter is good protected in foam and then put in small carton box, each box with 4pcs SCAPC 1x8 PLITTER ,and then in carton box, high quality and high impact package for box.

1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter

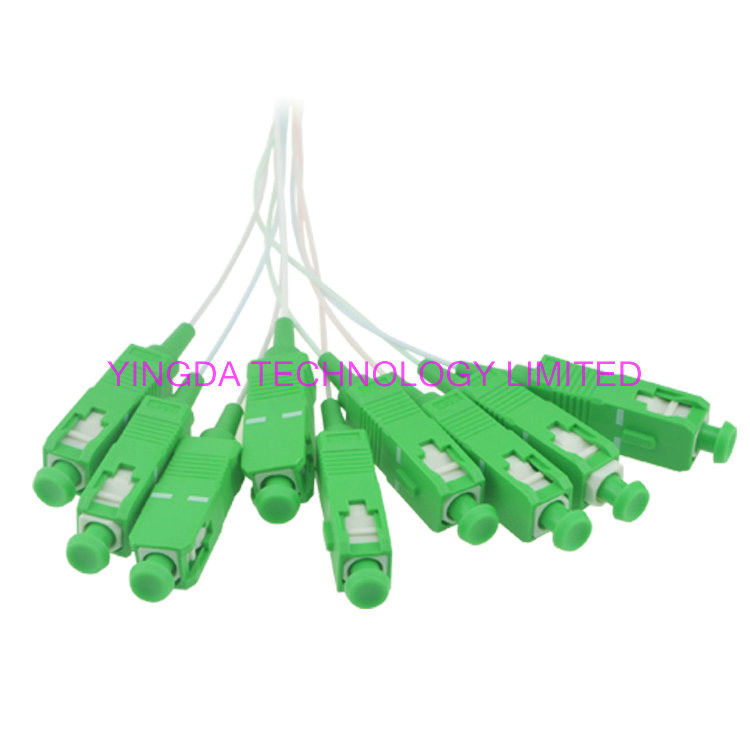

all connectors and cables pack inside is fixed with Adhesive tape, it can be taken off very easy by hand, no glue left. not influence the quality of the connectors and cables.

each splitter with test reports.



1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter



Order information



Type Package size Port Fiber Type Input/output Fiber length connector
PLCS BF=bare fiber
FO=fan-out
MD=module
MB=metal box
01X02
01x04
01x08
……
02x16
02x32
02x64
0=G652D
1=G657A
C=Customize
1=bare fiber
2=900µm
tight buffered
3=2.0mm
Loose tube
4=3.0mm
Loose tube
1=1m
2=1.5m
C=Customize
0=no connector
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=ST/APC
6=ST/PC
7=LC/AP
8=LC/PC
C=customize





Some Views of PLC Production Procedure



1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter1:8 Fiber Pon Splitter Steel Tube Blockless Mini Module 900um,1x8 Optical splitter 1Meter
