FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline

China FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline supplier
FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline supplier FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline supplier FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline supplier FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline supplier

Large Image :  FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: D013

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1pc / box, 10pcs/ carton box
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Shape: Dome Max Capacity: 48 Cores Bunchy Fibers
Cable Port: 4 Round Ports Cable Diameter: Φ8mm~Φ16 Mm
Material: PC Splice Tray: Max. 4 Pcs
Closure Dimension: 288*178 Mm Weight: 2.0 Kgs
Carton Qty: 10 Pcs Carton Size: 80*43*35 Mm

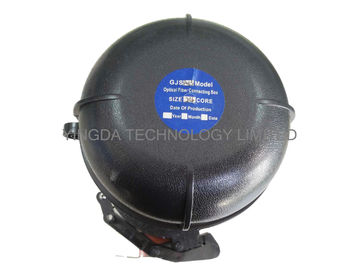

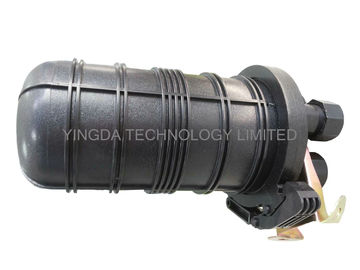

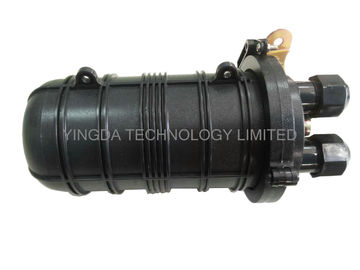

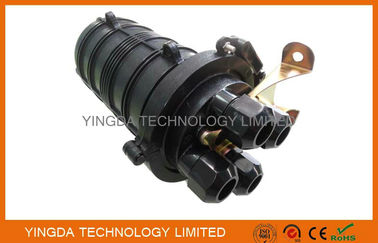

FTTH Fibre Optic Splice Enclosure 48 Fibers 4 Ports Aerial 24 Cores





D013 fiber optical splice closures are designed and developed to meet the requirements of different environment installation. This series of fiber optical splice closures are suitable for FTTH network, compact size, light weight, but max. 48cores capacity fusion splice. The protection level can be IP68.



The scope of application is: aerial, underground, pipeline, hand-holes.

The ambient temperature ranges from -40℃ to 65℃.



Dimension and capacity



Outside dimension (Height x Diameter) 288mm×178mm
Weight (excluding outside box) 1800g—1910g
Number of inlet/outlet ports 4 round ports
Diameter of fiber cable Φ8mm~Φ16 mm
Capacity of FOSC Bunchy: 4-48 (cores)
GW./CTN: 20 KGS
CTN SIZE 82 x 43 x 32.5 cm
QTY/CTN 10 PCS /CTN



Box structure

FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline



Main components



No. Name of components Quantity
1 FOSC cover 1 piece
2 Fiber optic splice tray (FOST) Max. 4 trays (bunchy)
3 Fiber holding tray 1 pcs
4 Base 1set
5 Plastic hoop 1 set
6 Seal fitting 1 piece
7 Pressure testing valve 1 set
8 Earthing deriving device 1 set



Main accessories and special tools



No. Name of accessories Quantity Usage
1 Heat shrinkable protective sleeve   Protecting fiber splices
2 Nylon tie   Fixing fiber with protective coat
3 Earthing wire 1 piece Putting through between earthing devices
4 Abrasive cloth 1 piece Scratching fiber cables
5 Labeling paper 1 piece Labeling fibers
6 Special wrench 2 pieces Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube
7 Measuring paper 1 piece To measure perimeter, of which its diameter is enlarged with seal tape
8 Seal tape 1 ring Enlarging diameter of fiber cable which fits in with gasket ring.
9 Insulation tape 1 ring Enlarging diameter of fiber cable for easy fixing
10 Metal hoop 1 set For wall mounting and pole hugging
11

Buffer tube



decided by customers Hitched to fibers and fixed with FOST, managing buffer.
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air



Necessary tools for installation



3. Universal tools (to be provided by operator)



Name of tools Usage and specification
Band tape Measuring fiber cable
Pipe cutter Cutting fiber cable
Electrical cutter Take off protective coat of fiber cable
Combination pliers Cutting off reinforced core
Screwdriver Crossing/Paralleling screwdriver
Scissor
Waterproof cover Waterproof, dustproof
Metal wrench Tightening nut of reinforced core



4. Splicing and testing instruments (to be provided by operator)



Name of instruments Usage and specification
Fusion Splicing Machine Fiber splicing
OT DR Splicing testing
Provisional splicing tools Provisional testing



More pictures

FTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / PipelineFTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / PipelineFTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / PipelineFTTH Fiber Optic Cable Joint Closure 4 Ports 24 Cores For Underground / Pipeline



Fiber Optic Splice Closures (FOSC) inspecting and testing items



Package, Appearance, Sign, Fiber Storage Device, Electrical Jointing Device, Sealing Performance,

Re-Sealing Performance, Pull, Punching, Impact, Bending,Torsion, Temperature Circle, Voltage

Resistance Strength, Isolating Resistance
