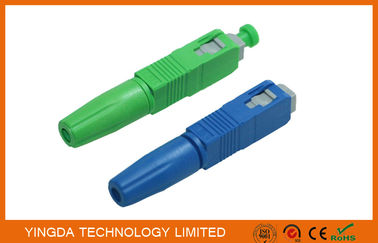

Green / Blue SC UPC APC Field Installable Connector FTTH Use

China Green / Blue SC UPC APC Field Installable Connector FTTH Use supplier
Green / Blue SC UPC APC Field Installable Connector FTTH Use supplier Green / Blue SC UPC APC Field Installable Connector FTTH Use supplier Green / Blue SC UPC APC Field Installable Connector FTTH Use supplier

Large Image :  Green / Blue SC UPC APC Field Installable Connector FTTH Use

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: FIC-SCU/APC-23

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 5pcs / blister box,1000pcs / carton box
Delivery Time: 3-5 working days after get payment
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per day
Contact Now
Detailed Product Description
Fiber Type: SMF-28e Corning Fiber Cable Type: Drop Cable Or Indoor Cable
Connector: SC LC FC ST Available Cable Mode: Single Mode OS1
Connector House: Green / Blue Insertion Loss: <0.3dB
Tools: Cotton, Alcohol,fiber Cleaver Application: FTTH
User Manual: English Sample: Ok



Green / Blue SC UPC APC Field Installable Connector FTTH Use



Sell Point:



1. 1000% test in house before delivery

2.  0.9,2.0,3.0mm or drop cable

3.  5pcs or 10pcs / set

4.  each box with english user manual

5.  house color: blue, green

6.  SC LC FC ST can be choosed

6.  Productivity:10,000 pcs / day

7.  singlemode,multimode both ok.





Description



Fast connector, also called field installable connector or quick assembly connector, is a good solution

to the field wiring operation and fiber to the home project. It is widely used in the construction site where

need quick and stable connection. Fast connection connector on site assembly don’t need curing and

grinding, which provides the engineers with more efficient help for the installation, maintenance, and

repair.



The pre-embedded optical fiber and the core end face for the fast connector are designed to guarantee

the perfect quality of ceramic ferrule end face, effectively protect the user equipment interface damage,

and reduce the connection loss.



Features

  1. It can be used as a single connector and attenuator
  2. It has embedded optical fiber and end face pre-grinding
  3. On-site installation, quick connection, easy operation
  4. No need glue, grinding or electrical tools, a kind of cold access
  5. High performance and reliability, convenient installation
  6. Mechanical and environmental performance in line with GR-326-CORE standard.



Application

  • Fiber optic cable distribution frame
  • Optical fiber network equipment
  • Fiber to the home
  • Cable television network



 Specification



Applicable for

Drop cable.indoor cable

Optical fiber diameter

125um(G657a&G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.5dB (1310/1550nm), special≤0.3dB

Return loss

≤-40dB

Fastening strength of naked fiber

5N

Fastening strength of naked fiber holder

10N

Tensile strength

50N

Working temperature

+40~+75°C

On-line tensile strength(20N)

IL≤0.5dB  RL≤5dB

Mechanical durability(500times)

IL≤0.5dB  RL≤5dB

Drop-off test(drop-off height 4m,once per direction,totally 3times)

IL≤0.5dB  RL≤5dB



Order information

FIC-XX-XXX-XX-XX



FIC=filed

installable

connector

1

2

3

4

5

Connector

type

Polish

mode

Fiber type

Applicable

cable

House

color

SC

FC

SC

LC

ST

UPC

APC

SM=Single mode

MM=Multi mode

09=0.9mm

20=2.0mm

30=3.0mm

23=2.0*3.1mm

drop cable

B=Blue

B=black

G=green



Green / Blue SC UPC APC Field Installable Connector FTTH UseGreen / Blue SC UPC APC Field Installable Connector FTTH UseGreen / Blue SC UPC APC Field Installable Connector FTTH UseGreen / Blue SC UPC APC Field Installable Connector FTTH Use
