SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

China SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits supplier
SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits supplier SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits supplier SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits supplier SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits supplier

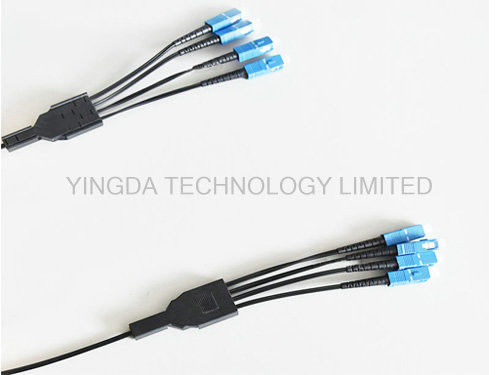

Large Image :  SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS,ROHS
Model Number: FHPC-SCU-04-SFS-A1B-03

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 piece / bag
Contact Now
Detailed Product Description
Application: FTTH Outdoor Wiring Connector: SC / UPC
Fiber Count: 4core Fiber Type: G657A1
Cable Sheath: LSZH Cable Length: 3 Meters
Cable Color: Black / White Insertion Loss: < 0.3dB
Cable Strength Member: Steel Wire Drop Cable Diameter: 2.0*5.0 Mm



SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits



The optical fiber unit is positioned in the center ,two parallel fiber reinforced plastics FRP are placed at the

two sides. A steel wire as the additional strength member is also applied,then the cable is completed with

a black or color LSZH Sheath.



Features

  1. Special high bending radius optical fiber, provides wider bandwidth, enhance the network
  2. transmission performance;
  3. Two parallel FRP or metallic strength member so that the cable has good compression
  4. performance, protect the fiber;
  5. Simple structure, light weight, strong practicability;
  6. The unique groove design, easy to peel, convenient connection, simple installation and maintenance;
  7. Low smoke halogen-free flame retardant polyethylene sheath or flame retardant PVC sheath,
  8.  environmental protection.
  9. Can be matched with a plurality of field connector, can be terminated at site.
  10. Due to its soft and light, it is widely used in access network; so it is also called indoor access
  11. network butterfly cable, and due to its shape called butterfly optical cable, figure 8 cable.


Application

  • For indoor /outdoor wiring, terminal user directly use cable;
  • Building introducing (drop) cable;
  • FTTH indoor outdoor distribution

Implementation standards

  • YD/T1997-2009 access network butterfly optical drop cable



FTTH Drop Cable Figure-8 Indoor           FTTH Drop Cable Self-supporting Outdoor

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout KitsSC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits

SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits



Optical Characteristics:

   Fiber Sort

    Multimode

 G.651

A1a:50/125

 Graded-index fiber

A1b:62.5/125

   Singlemode

 G.652(A,B,C)

 B1.1:Conventional fiber

 G.652D

 B2: Zero  dispersion shifted

 G.655

 B1.2 :Cut-off wavelength shifted

 G.657(A1,A2 ,B3)

 B4: Main technical data for positive
  dispersion shifted single-mode fiber





Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...

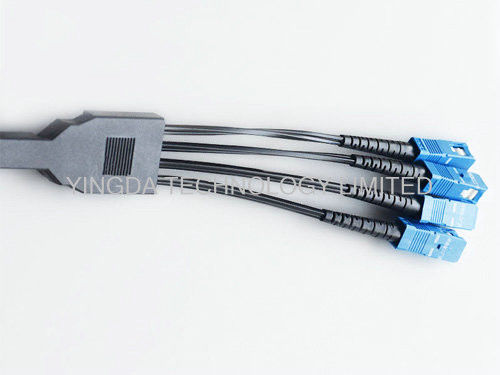

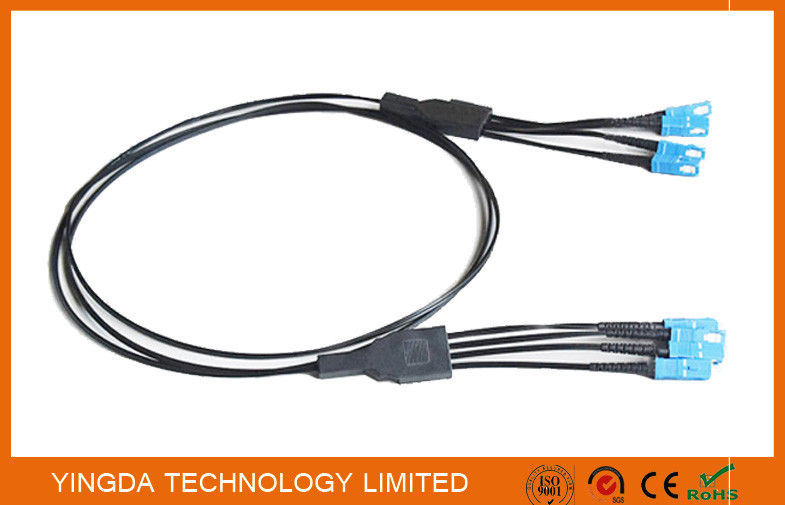

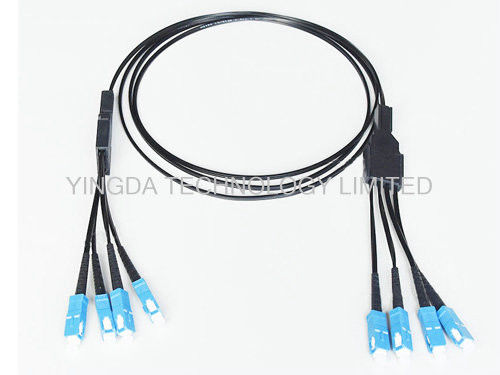

More photos



SC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout KitsSC / UPC FTTH Fiber Optic Patch Cord Self Supporting Drop Cable Fanout Kits
