Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member

China Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member supplier
Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member supplier Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member supplier Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member supplier Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member supplier

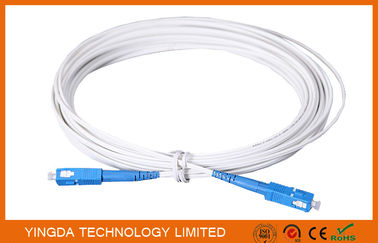

Large Image :  Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS,ROHS
Model Number: FHPC-SCU-01-F8F-A1W-01

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 piece / bag
Contact Now
Detailed Product Description
Application: FTTH Indoor Wiring Connector: SC / UPC
Fiber Count: 1 Core Fiber Type: G657A1 Or G657A2
Cable Sheath: LSZH Cable Length: 1 Meter
Cable Color: White Insertion Loss: <0.3dB
Cable Strength Member: FRP (Fiber Reinforced Polymer/Plastic) Drop Cable Diameter: 2*3.0mm



Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member



FTTH  SC/PC patch cord is FTTH cable terminated bothh end with SC connector. Also FC/ST/LC connector can be

choosed as customer request.  Fiber is avaibale with G652D or G657A. Cable Jacket can optional as white or balck.



Features

  1. Low-bend-sensitivity fiber,high bandwidth,excellent communication transmission property;
  2. Two parallel FRP strength members ensure good performance of crush resistance
  3. Simple structure, light weight and high practicability;
  4. Novel flute design, easily strip and splice, simplify the installation and maintenance;
  5. Low smoke, zero halogen and flame retardant sheath.



Application

  • Local Area Networks (LANs) and Wide Area Networks (WANs)
  • Fiber Optic CATV, FTTH, FTTB, FTTP etc
  • Fiber Optic telecommunication systems
  • Transmission Mode (ATM)
  • Fiber Optic Backbone
  • Military Instrumentation



Specification

Item

SC FC ST LC drop cable PATCH CORD

IL(dB)

≤0.2

Max IL(dB)

≤0.3

Working temperature(°C)

-40~+80

Temperature cycle(°C)

-40~+75

Storage temperature(°C)

-40~+85

Interchangeability (dB)

≤0.2

Plug times

1000 times

Repeat ability(dB)

≤0.1

RL (dB)

≥45 ≥50 ≥60

Immersion

Temperature 43°C,

PH5.5 for 7days



Delivery Length:

1-300METERS / PACK



Order information



FHPC-XXX-XX-XXX-XXX-XX

        1 - 2  - 3 4 - 5 6 - 7



FHPC

Connector

type



Fiber

count

Cable

type

Strength

member

Fiber type

Cable

color

Cable

Length

FH=ftth

1

2

3

4

5

6

7

Pc=patch

cord

SCU=SC/UPC

SCA=SC/APC

LCU=LC/UPC

....

01=1core

02=2core

04=4core

....

F8=Figure 8

SF=self-supporting

F=FRP

S=steel

5D=G.652D

A1=G.657A1

A2=G.657A2



W=white

B=Black

Y=yellow

01=1m

02=2m

...

10=10m

...



More Photos



Indoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength MemberIndoor FTTH Fiber Optic Patch Cord 3M With SC / UPC Connectors FRP Strength Member
