2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load

China 2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load supplier
2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load supplier 2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load supplier 2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load supplier 2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load supplier

Large Image :  2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO
Model Number: GPRP-FC48-D

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: 1 pc / box, 5 pcs / carton box
Contact Now
Detailed Product Description
Material: Cold Rolled Steel Thickness: 0.8mm,1.0mm, 1.2mm
Capacity: 48 Port / 48 Fibers Connector Port: FC Or ST ( Round Port )
Application: Optical Distribution Frame ODF Installatino Method: Rack Mounted
Color: White, Black Dimension: 480*200*2U Mm

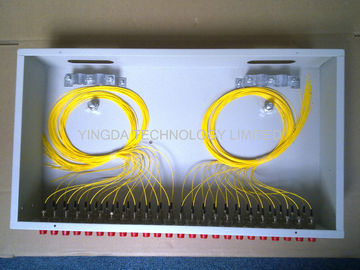

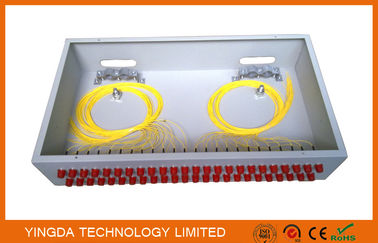

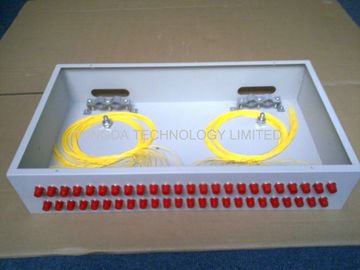

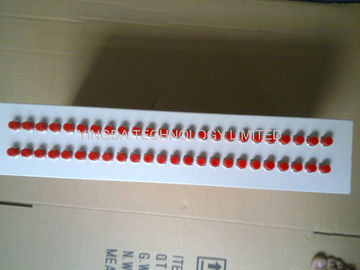

2U Rack Patch Panel Metal FC ST, 48 Ports Fiber Optic Patch Panel 19 ODF Fully Load





Description



19" Rack mount patch panel is mainly used for connection and storage between optical fiber cable

and pigtail in equipment, it can be wall mounted and floor-standing installation. The box body is made

of high quality cold rolled steel,electrostatic spraying, the appearance is beautiful, and the operation

is convenient.



Fiber optic patch panel can install FC SC LC ST adapters, and max capacity can be 12 cores, 24

cores, 48 cores, 72 cores or 96 cores on customer request by 1U, 2U, 3U, 4U.



Adapter panel can be simplex or duplex, and have ears to install in rack. It is smart design to supply

firm protection for optical cable terminal connection and optical fiber adapter installation. It is a combine

of termination, protection, connection, management of fiber optic cables.


 Technical specification:



ambient temperature

-25℃~+40℃

relative humidity

≤85%(+30℃)

atmospheric pressure

70kPa~106kPa

Insulation resistance

fiber optic cable terminal and cable metal strength member,

fiber optic cable metal components itself, fiber optic cable

metal components and the ground, the insulation resistance

should > 2 x 104MΩ.

Dielectric strength

fiber optic cable terminal and cable metal strength member,

 fiber optic cable metal components itself, fiber optic cable

metal components and the ground, under 15kV voltage for

1min without breakdown, no arcing phenomena.





Features

  • Flexible standard 19” cabinet installation
  • Complete front operations with double layers
  • Adapter mounting bar available to hold multiple types of adapters like FC SC ST and LC
  • Complete bending radii protection
  • Sufficient spooling area for redundant fibers
  • Spooling space for fibers and pigtails to enhance protection for the fibers,  pigtails and connections

Order information



Model

Dimension (mm)

Max Capacity (cores)

GPRP-SC12

480×200×1U

12

GPRP-SC24

480×200×1U

24

GPRP-SC48

480×200×2U

48

GPRP-FC12

480×200×1U

12

GPRP-FC24

480×200×1U

24

GPRP-FC48

480×200×2U

48

GPRP-ST12

480×200×1U

12

GPRP-ST24

480×200×1U

24

GPRP-ST48

480×200×2U

48



When order, pls tell us below details:



1. Complete assembly with adapter and pigtail  OR empty panel optional

2. Box color: Black , White



2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load2U Rack Patch Panel Metal FC ST , 48 Ports Fiber Optic Patch Panel 19” ODF Fully Load
