Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn

China Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn supplier
Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn supplier Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn supplier Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn supplier Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn supplier

Large Image :  Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: MPC

Payment & Shipping Terms:

Minimum Order Quantity: 10 KM
Price: Negotiable
Packaging Details: 2km / wooden drum
Contact Now
Detailed Product Description
Cable Jacket: Yellow, Orange, Aqua, Blue Minimum Length: 10km
Fiber Count: 4 Core To 96 Cores Cable Size: Max. 16.0mm
Jacket Material: PE, LSZH, TPU

Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn





Description

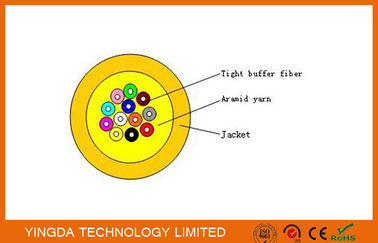

Multi-purpose distribution cable use several 900um flame-retardant tight buffer

fiber as optical communication medium, the tight buffer fiber wrapped with a

layer of aramid yarn as strength member units, and the cable is completed

with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.



Application


◆Multi-optical fiber jumper
◆Indoor any purpose cable distribution



Technical parameters



Cable

code

Fiber

 count

Cable

size

(mm)

Cable

weight

(kg/km)

Tensile(N)

Crush

(N/100mm)

Crush

resistance

Temper

ature

(°C)

Long

term

Short

term

Long

term

Short

 term

Dynamic

Static

MPC04

4

4.8

17

200

550

200

1000

20D

10D

-20~+60

MPC06

6

5.2

21

200

550

200

1000

20D

10D

MPC08

8

5.5

28

200

550

200

1000

20D

10D

MPC12

12

6.2

36

300

650

200

1000

20D

10D

MPC24

24

8.5

59

400

750

200

1000

20D

10D

MPC48

48

11.8

125

500

850

200

1000

20D

10D

MPC72

72

14.5

150

600

800

200

1000

20D

10D

MPC96

96

16.0

185

800

1000

200

1000

20D

10D

Fiber type

G652D

50/125

62.5/125

G657A1

G657A2

OM3-150

OM3-300

OM4

Jacket material

PE

LSZH

TPU

Features

Single mode fiber optic cable sheath color: yellow

Multi-mode fiber optic cable sheath color: orange

Other contracted color





Indoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid YarnIndoor Multi-Fiber Multi-purpose Fiber Optic Distribution Cable Tight Buffer Aramid Yarn
