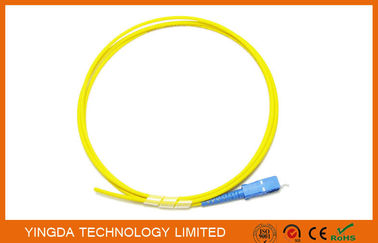

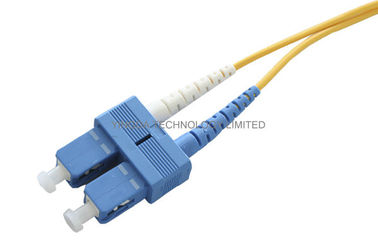

Optical Pigtail SC UPC SM Simplex 3mm 1Meter Yellow Optical Cable LSZH G.652D

Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPC-SC-OS2-30-1.5-Y
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc/ bag, 1500pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 200,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC UPC Fiber Count Simplex
Insertion Loss < 0.2 DB Fiber Type 9/125 Um G652D
Package Plastic Bag Cable Diameter 3.0MM
Jacket LSZH Cable Color Yellow
Temperature -40~+85°C Customer Logo Yes
Wavelength 1310nm, 1550nm
High Light

optical fiber pigtail

,

ribbon pigtail

Leave a Message
Product Description

Optical Pigtails SC UPC SM Simplex 3mm 1Meter Yellow Optical Cable LSZH G.652D





SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic

Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical

signal. It is often used to limit the optical power received by the photo-detector to within the limits of the

optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .



Features

  • Low Insertion Loss
  • High Return Loss
  • Good Exchange ability
  • Good Repeat ability
  • High Temperature Stability
  • 8 Degree Angled physical contact polishing (APC)
  • Comply with YD/T 1272.4-2007 specification



Application

  1. CATV network
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Building network access
  5. Cabling system, ODF
  6. FTTX networks



Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

(Multi-mode) 50/125um OM1, 62.5/125um OM2 &

50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm

buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master)

≤ 0.25dB (For Single mode Standard)

≤ 0.25dB (For Multi-mode)

Tested by JDS RM 3750

Return Loss (For Single mode)

UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement (For Single mode)

Ferrule End face Radius

7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1



Ordering Information


SC / PC SM 9/125 SIMPLEX 3.0mm –1M LSZH

 ①   ②      ③                ④         ⑤         ⑥   ⑦



① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH



Optical Pigtail SC UPC SM Simplex 3mm 1Meter Yellow Optical  Cable LSZH G.652D 0
