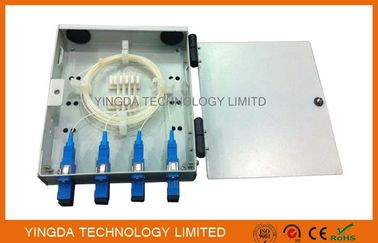

FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails

China FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails supplier
FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails supplier FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails supplier FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails supplier FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails supplier

Large Image :  FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails

Product Details:

Place of Origin: CHINA
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: FTB104A

Payment & Shipping Terms:

Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: 1pc/ box, 50pcs/ carton box
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
Color: White Material: Cold Rolled Steel
Connector: SC Fiber Count: 4 Cores
Size: 115*135*41.5 Mm Cable Port: 1port, Can Open Another On Demand
Cable Diameter: 5~10mm

FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails





Model: FTB104A



Sell point:

  • Max 4pcs SC / LC duplex adapter.
  • Material: ABS plastic, white color
  • indoor wall mounting self-clip cover
  • empty or fully load can be offer
  • 100% test in house before shipment
  • sample is ok
  • each one with individual pacakge
  • customer logo ok



Description:



Used in the end termination of residential buildings and villas,to fix and splice with pigtails.

 Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function;

Max fiber capacity is 4 fibers SC, 4 adapters SC output, available for FC, SC, ST, LC Adapters.



Features:

  1. small size,light weight,pleasing in appearance
  2. wall mounted with mechanical protection function
  3. max fiber capacity 4 fibers,4 adapter output
  4. available for FC,SC,ST,LC adapters
  5. hinge and convenient press-pull button lock design
  6. Environmental Temperature:-25°C~40°C;
  7. Self-clip design,easy to operate



Product Dimensions



FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails



Specifications:



Model

FTB104A

FTB108A

Size(H*W*D)mm

115*135*41.5

115*135*41.5

Cable diameter (mm)

5~10



Cable ports

2 pcs

2 pcs

Max capacity of splice

4 cores

8 cores



Standard accessories:

FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails

white protection kits 2 pcs
cable tie 4 pcs
adapter screws 16 pcs
buffer tube 1 pcs



More products show:



FTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with PigtailsFTTH Wall Mounted Fiber Optic Termination Box, 4 Fibers Fiber Splice Box SC Adaptor with Pigtails
